Technical Specifications
Overview
Robust Vertical Transportation

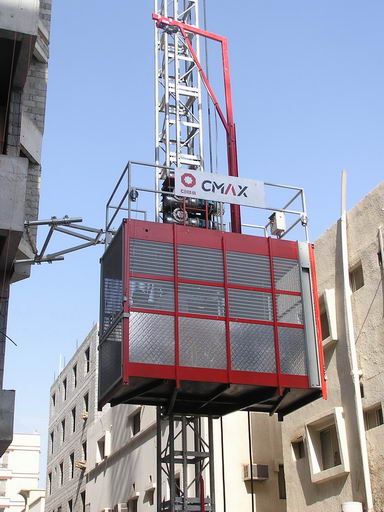

The SC200 Building Hoist is a high-performance solution designed for the efficient movement of personnel and materials on active construction sites. Engineered for stability and safety, it features a reinforced mast structure, a spacious cage design, and integrated safety mechanisms including anti-drop devices and emergency cut-offs. This hoist is built to withstand demanding environments with durable materials and high-quality electrical components.
Mast & Structure
- Mast Section Dimensions
- 650 x 650 x 1508 mm
- Steel Material Grade
- Q235
- Mast Wall Thickness
- 4.5 mm
Cage Specifications
Cage Dimensions
| Capacity Class | Dimensions (L x W x H) |
|---|---|
| 1.2T / 2.0T | 3.0m x 1.5m x 2.5m |
| 2.7T / 3.2T | 3.8m x 1.5m x 2.5m |
- Construction Materials
- Aluminum SidewallsChecked Steel BaseChecked Steel Roof
Safety Systems
Integrated Safety Devices
- Anti-Drop Safety Device
- Up/Down Limit Switches
- 3-Phase Cut-off ELCB
- Emergency Cut-off
- Side and Roof Door Limit Switches
- Audible Horn
Buffer System
1.2 Spring
1.2T & 2.0T Models
2.7 Hydraulic
2.7T & 3.2T Models
Electrical & Drive
Motor Protection Rating
IP55
- Control Components
- TelemechaniqueABBSIEMENS
Finish & Protection
Surface Treatment
- Sand blasting
- 2 Layers Epoxy resin coat
- Color (RAL)
- Blue (RAL 5002)
