Product Overview
Precision Hygienic Flow Measurement

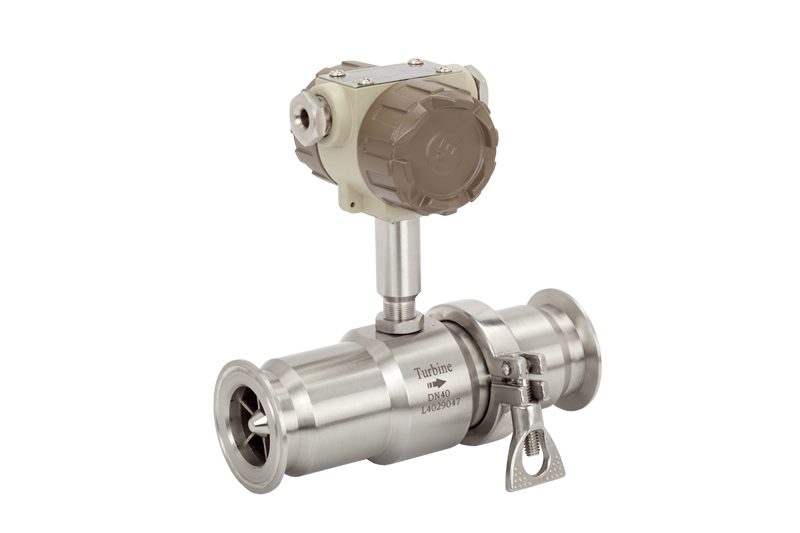

This sanitary turbine flow meter is engineered for high-accuracy flow rate measurement in food, beverage, and pharmaceutical industries. Constructed from high-grade stainless steel, it ensures durability, corrosion resistance, and compliance with strict sanitary process standards. The system utilizes a turbine rotor that rotates proportionally to liquid flow, converting mechanical energy into precise electrical signals for reliable process control.
Technical Specifications
Power Supply Options
- 12 to 24V DC
- 24V DC
- 3.2V 10AH Lithium Battery
- Diameter Range
- 4mm - 50mm
- Supported Outputs
- Pulse4-20mARS485HART
Model Variants
Configuration Table
| Model | Key Feature |
|---|---|
| LWQ-N | Sensor with Pulse Output |
| LWQ-A | Transmitter with 4-20mA Output |
| LWQ-B | Battery Powered (Life > 4 years) |
| LWQ-C | 24V DC with 4-20mA / RS485 / HART |
| LWQ-D | Temp & Pressure Compensation |
Certifications & Safety

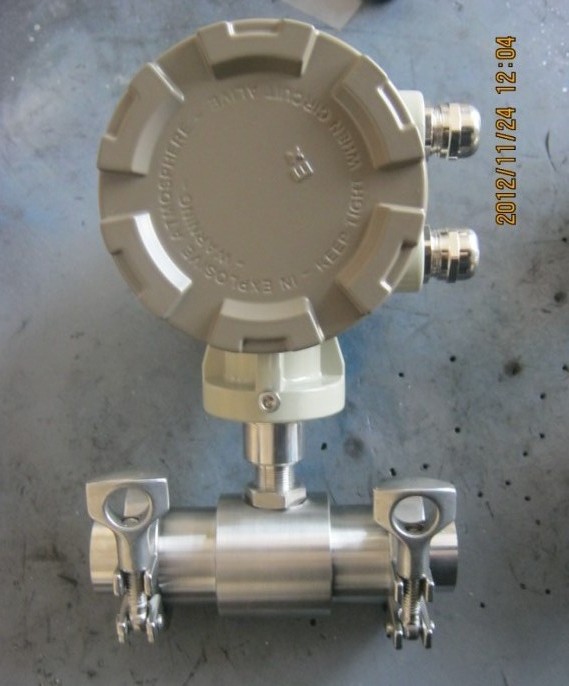

- Explosion Proof Availability
- Yes
