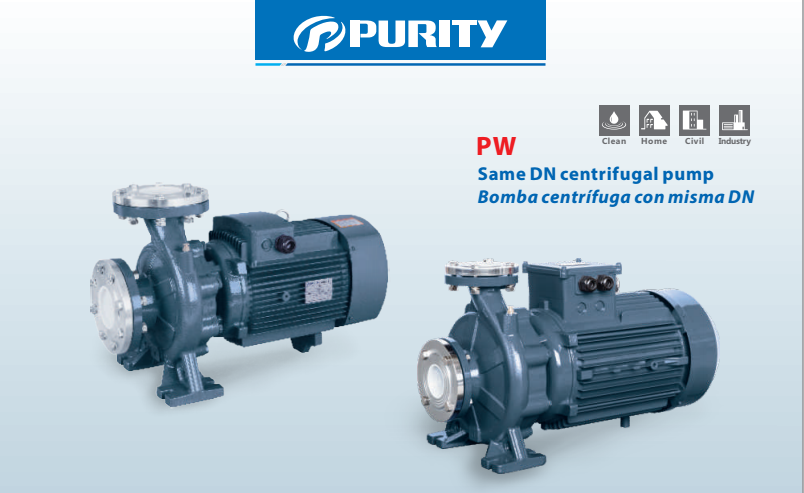

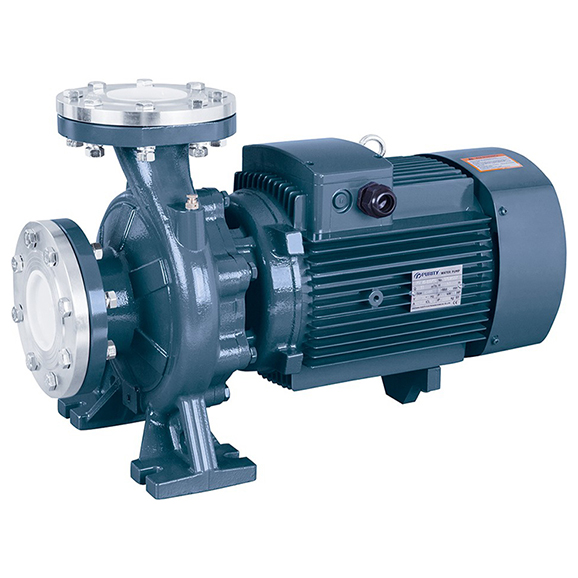

Same Port Centrifugal Pump
This centrifugal pump features the same nominal diameter (DN) design for easy integration with existing piping. It is suitable for use with clean water and liquids that are not chemically aggressive towards the pump's materials.
Technical Specifications
Product Overview
High-Efficiency Centrifugal Pump
This advanced centrifugal pump features a patented same-port design for seamless integration into existing piping systems. Engineered with a high-efficiency motor and corrosion-resistant components, it is suitable for clean water applications in industrial, agricultural, and commercial sectors. The pump supports versatile usage including water supply, pressure boosting, firefighting sets, and HVAC circulation.
Operational Limits
Duty Cycle
Continuous (S1)
- Liquid Temperature
- -10°C to +120°C
- Max Ambient Temperature
- 50 °C
- Max Working Pressure
- 16 bar
Construction & Materials
Key Materials
- Pump Case: Anti-corrosive coated cast iron
- Impeller: AISI 304 Stainless Steel or Cast Iron
- Shaft: AISI 304 Stainless Steel or galvanized iron
- Seal: Wear-resistant mechanical seal
- Bearing: Quality NSK bearing
Motor Specifications
Motor Performance
55 YE3
Efficiency Class
55 IP
Protection Rating
- Motor Design
- Square MotorRound Motor
Applications
- Suitable Applications
- Water SupplyPressure BoostingFirefighting SetsIrrigationHVAC CirculationIndustrial Cooling
