Rubber Block Cutting Machine with Rotary Disc
This machine is a rotating-disc type cutter designed for processing rubber blocks. It cuts natural, synthetic, and reclaimed rubber into various shapes like slices, granules, and strips.
Technical Specifications
Product Overview

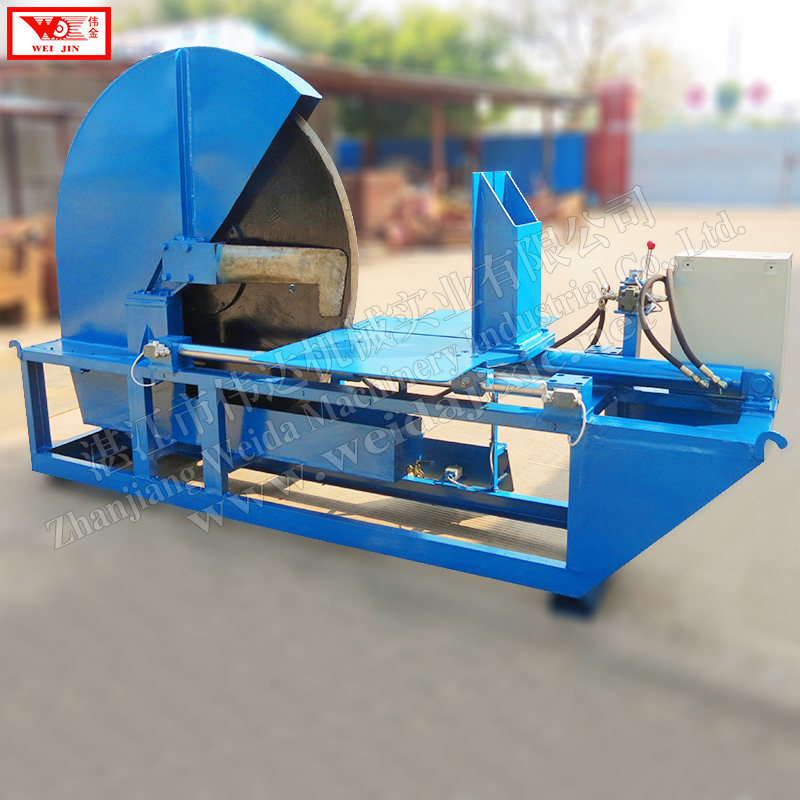

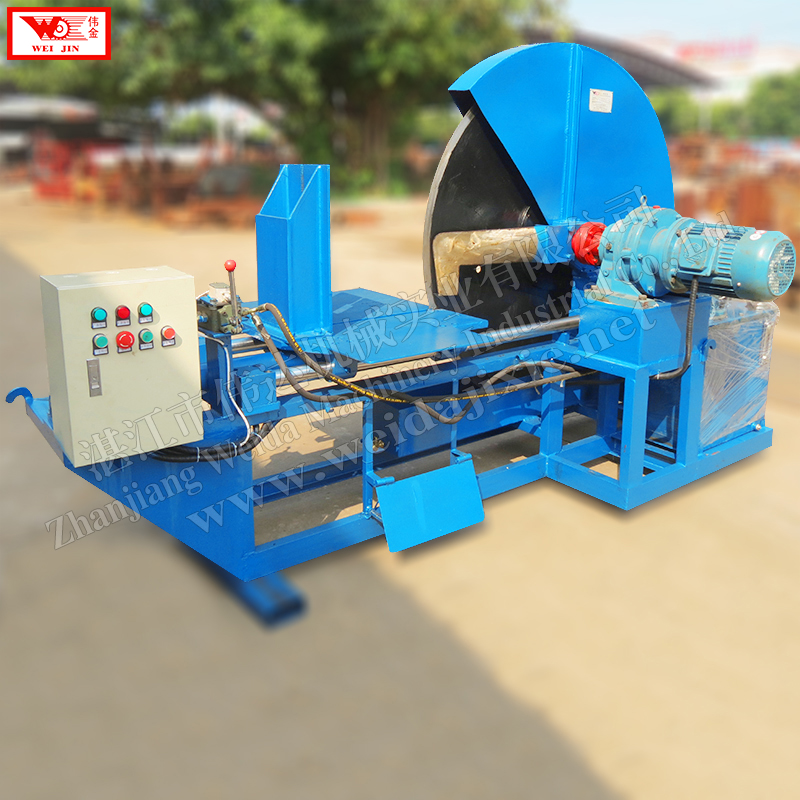

Rotating-Disc Rubber Cutting Machine
This industrial-grade, rotating-disc cutting machine is designed for the precise processing of various rubber materials, including natural, synthetic, reclaimed, and compound rubber. It efficiently cuts rubber blocks into smaller, uniform slices, granules, strips, or blocks to suit diverse manufacturing requirements. Engineered for high-volume production, the unit features a robust frame construction and a hydraulic-controlled worktable to ensure consistent accuracy and reliability.
Technical Specifications
Model Comparison
| Specification | WQJ-1000 | WQJ-1300 |
|---|---|---|
| Blade Diameter | 1000mm | 1300mm |
| Rotational Speed | 50r/min | 50r/min |
| Power Rating | 6.2kw (4+2.2kw) | 6.2kw (4+2.2kw) |
| Working Pressure | 5Mpa | 5Mpa |
| Production Capacity | 2t/h | 3t/h |
Performance & Features

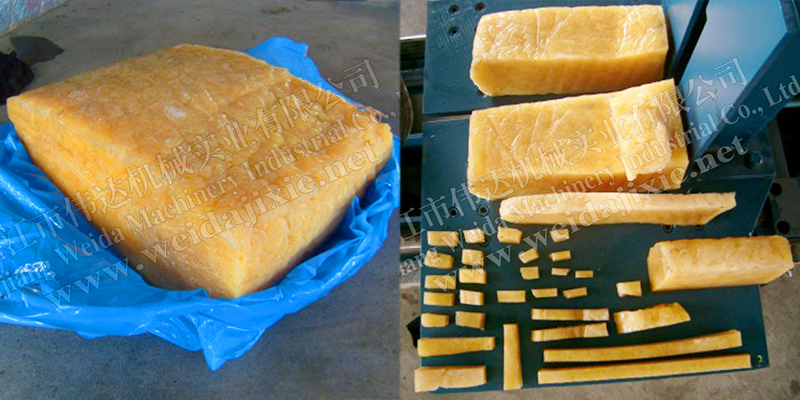

Output Forms
- Blocks
- Slices
- Granules
- Bars
- Supported Materials
- Natural RubberSynthetic RubberReclaimed RubberCompound Rubber
Maintenance & Warranty
- Warranty Coverage
- 1-year warranty on machine structure and equipment (fragile parts excluded)
- Service Response Time
- Repair plan provided within 12 hours of inquiry
