Rubber Block Cutting Machine with Rotary Disc

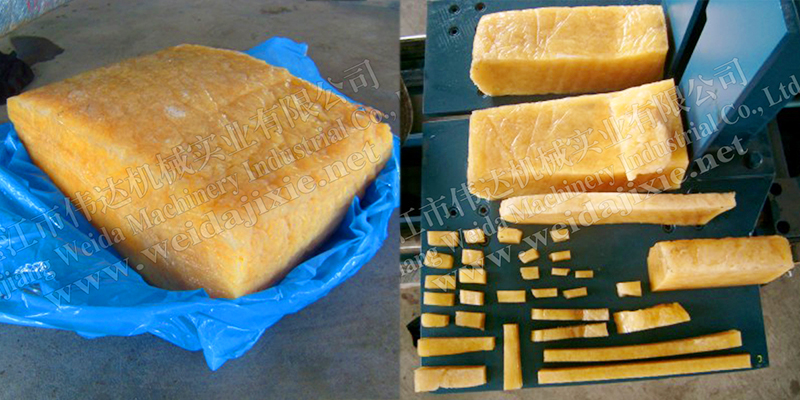

This rotating-disc cutting machine is designed for processing natural, compound, reclaimed, and synthetic rubber. It cuts rubber blocks into smaller pieces, slices, granules, or bars.
Technical Specifications
Overview
High-Efficiency Rotary Rubber Cutting
This industrial-grade rubber cutting machine features a precision rotary disc design engineered for high-volume processing of natural, reclaimed, compound, and synthetic rubber blocks. It offers superior versatility, capable of reducing large rubber bales into blocks, slices, granules, or bars to meet diverse manufacturing needs. The equipment integrates a robust hydraulic system to ensure consistent cutting performance, durability, and operational stability in demanding industrial environments.
Technical Specifications
Model Specifications
| Feature | WQJ-1000 | WQJ-1300 |
|---|---|---|
| Blade Diameter | 1000mm | 1300mm |
| Rotational Speed | 50r/min | 50r/min |
| Power Rating | 4+2.2kw | 4+2.2kw |
| Working Pressure | 5Mpa | 5Mpa |
| Capacity | 2t/h | 3t/h |
Core Operational Metrics
5 Mpa
Working Pressure
50 r/min
Blade Speed
Operational Capabilities
- Compatible Materials
- Natural RubberSynthetic RubberReclaimed RubberCompound Rubber
- Output Forms
- BlocksSlicesGranulesBars
