Technical Specifications
Product Overview

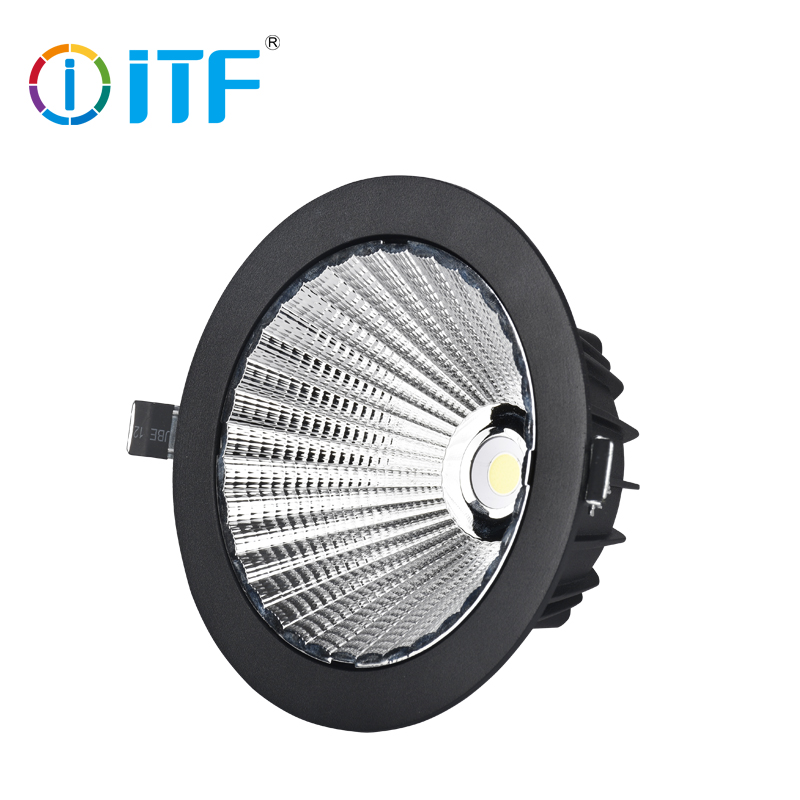

Professional Recessed Downlight
The HCLT25 series offers a high-performance recessed downlight solution featuring a precision-engineered faceted reflector for superior light distribution. Available in multiple power configurations from 7W to 40W, these fixtures utilize COB technology to deliver a consistent 80Lm/W luminous efficiency. Designed for versatile indoor applications, the units feature a robust housing and secure spring-clip mounting for quick, reliable installation in various ceiling types.
Performance Specifications
- Luminous Efficiency
- 80 Lm/W
- Beam Angle
- 45 °
- Available CCT
- 3000K4000K6500K
Technical Data
Size and Compatibility
| Power (W) | Size (mm) | Cut Out (mm) |
|---|---|---|
| 7 | 86*37 | 75 |
| 9 | 86*37 | 75 |
| 12 | 101*44.5 | 85 |
| 15 | 116*53 | 95 |
| 20 | 140*62.6 | 120 |
| 25 | 163*73 | 145 |
| 30 | 190*84 | 165 |
| 40 | 217*99 | 200 |
Surface Color
White
- Light Source
- COB LED
