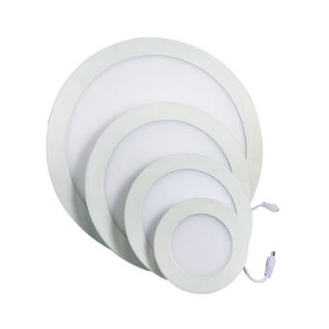

Round LED Panel Light
The round LED panel light features a super-thin design, only 12mm thick. Its aluminum frame provides good heat conduction, and it can be recessed, mounted, or suspended.
Technical Specifications
Overview
Versatile LED Panel Lighting Solutions
These professional-grade LED panel lights are designed for both residential and commercial applications, offering a slim 13mm profile that blends seamlessly into ceilings. Available in both round and square configurations, these panels provide uniform, diffused light output ideal for offices, retail spaces, and modern interiors. With multiple power options and color temperature choices, they offer a flexible solution for diverse lighting requirements.
Technical Specifications
- Available Color Temperatures
- 2700K4500K6400K
- Panel Thickness
- 13 mm
- Mounting Type
- Recessed
Product Range
Round Panel Dimensions
| Item No. | Power | Dimensions | Hole Cutout |
|---|---|---|---|
| GL-001-YC03 | 3W | 85mm | 70mm |
| GL-001-YC06 | 6W | 120mm | 100mm |
| GL-001-YC09 | 9W | 147mm | 120mm |
| GL-001-YC12 | 12W | 170mm | 120mm |
| GL-001-YC15 | 15W | 200mm | 180mm |
| GL-001-YC18 | 18W | 200mm | 180mm |
| GL-001-YC20 | 20W | 225mm | 210mm |
| GL-001-YC24 | 24W | 300mm | 280mm |
Square Panel Dimensions
| Item No. | Power | Dimensions | Hole Cutout |
|---|---|---|---|
| GL-001-FC03 | 3W | 85x85mm | 70x70mm |
| GL-001-FC03 | 6W | 120x120mm | 100x100mm |
| GL-001-FC03 | 9W | 147x147mm | 120x120mm |
| GL-001-FC03 | 12W | 170x170mm | 120x120mm |
| GL-001-FC03 | 15W | 200x200mm | 180x180mm |
| GL-001-FC03 | 18W | 200x200mm | 180x180mm |
| GL-001-FC03 | 20W | 225x225mm | 205x205mm |
| GL-001-FC03 | 24W | 300x300mm | 280x280mm |
