Rotary Wire Cup Brush
The rotary wire cup brush is designed for surface preparation, cleaning, and deburring. It features durable wire filaments for effective material removal on metal surfaces.
Technical Specifications
Overview
Professional Surface Preparation Solutions
This versatile range of rotary wire brushes is engineered for heavy-duty industrial applications including rust removal, weld cleaning, and surface deburring. Available in various configurations such as cup, circular, and bevel designs, these brushes are compatible with angle grinders and rotary tools. The high-tensile wire construction ensures aggressive material removal and an extended service life in demanding environments.
Product Range

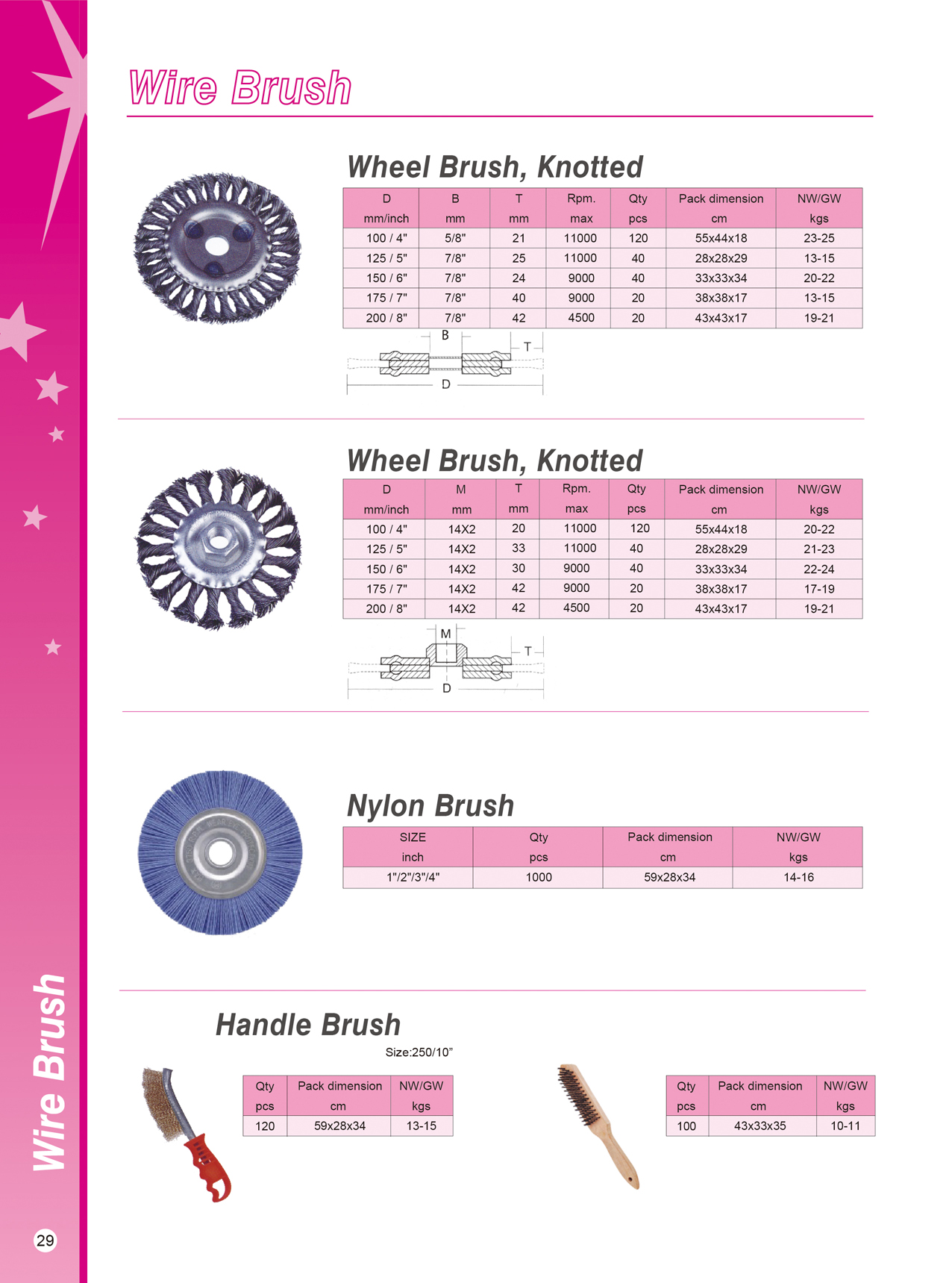

- Available Brush Types
- End BrushCircular BrushCup BrushBevel BrushKnotted BrushNylon BrushHandle Brush

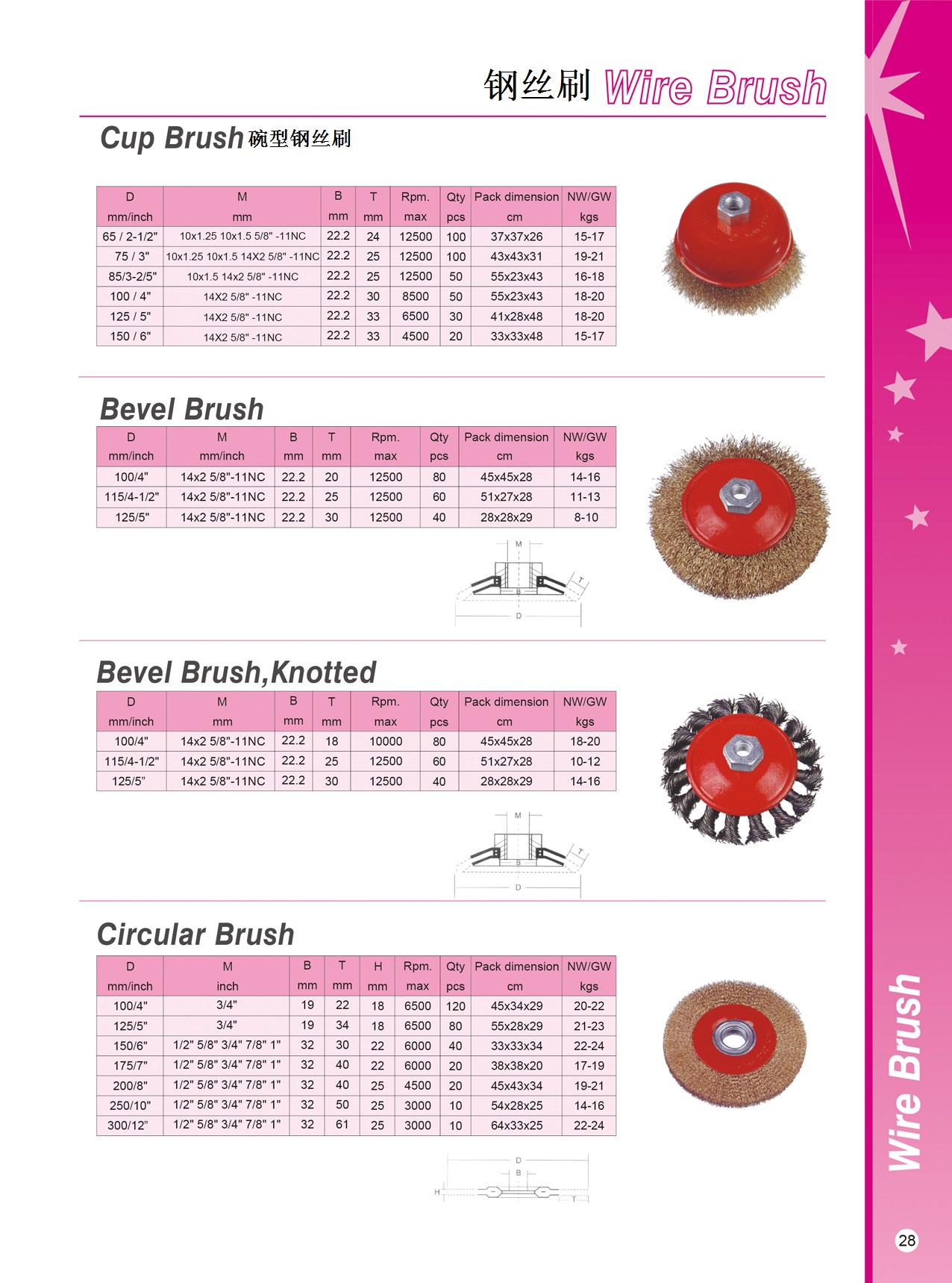

Cup Brush Specifications
Standard Cup Brush Sizes
| Diameter (mm/inch) | Threaded Arbor (M) | Max RPM |
|---|---|---|
| 65 / 2-1/2" | M10x1.25, M10x1.5, 5/8"-11NC | 12,500 |
| 75 / 3" | M10x1.25, M10x1.5, M14x2, 5/8"-11NC | 12,500 |
| 100 / 4" | M14x2, 5/8"-11NC | 8,500 |
| 125 / 5" | M14x2, 5/8"-11NC | 6,500 |
| 150 / 6" | M14x2, 5/8"-11NC | 4,500 |
Performance Metrics
Maximum Operating Speed
12,500 RPM
Max RPM (Small Brushes)
4,500 RPM
Max RPM (Large Brushes)

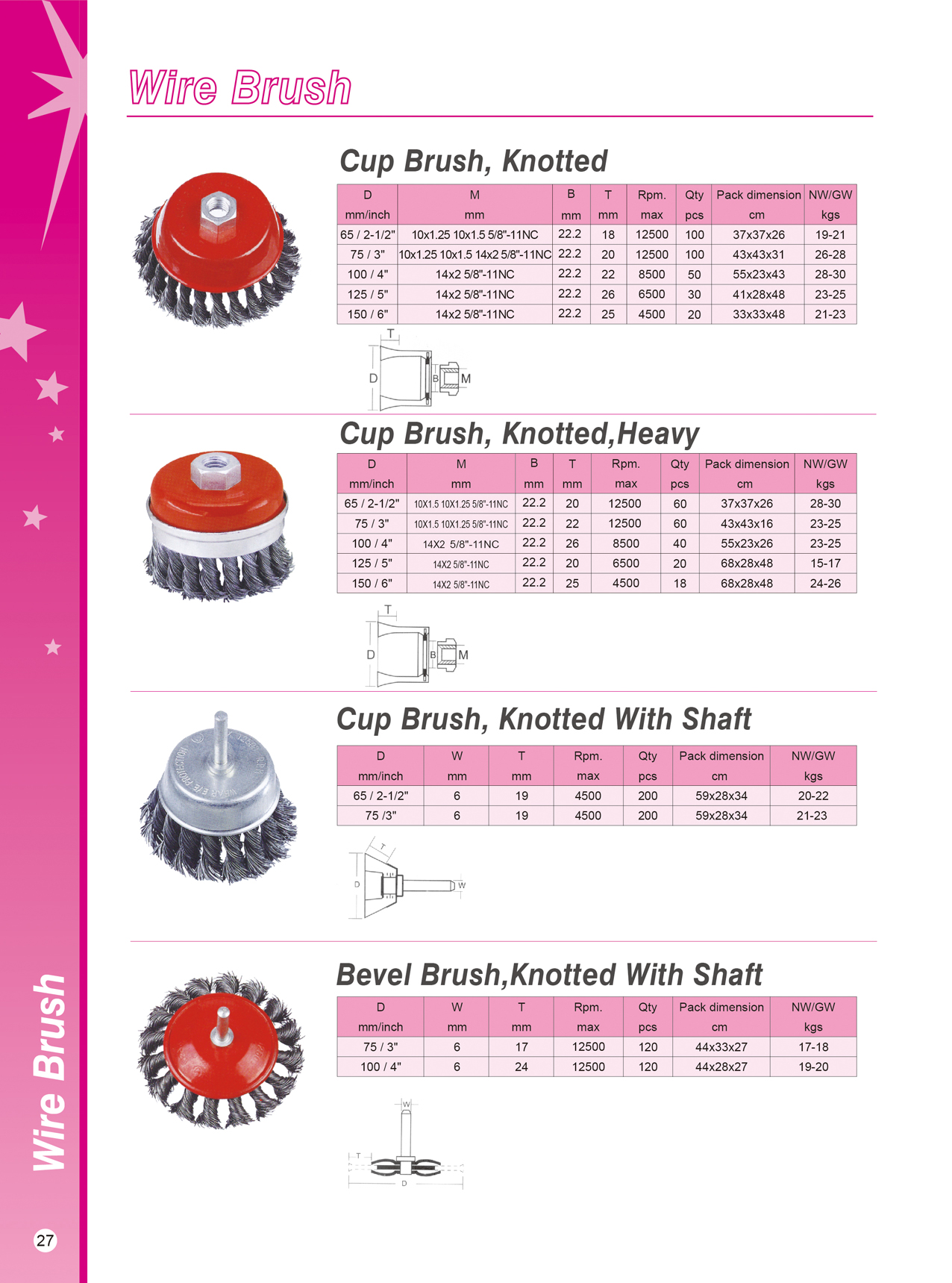

Knotted Brush Specifications
Knotted Cup Brush (Heavy Duty)
| Size | Wire Type | Max RPM |
|---|---|---|
| 65mm | Knotted / Heavy Knotted | 12,500 |
| 100mm | Knotted / Heavy Knotted | 8,500 |
| 150mm | Knotted / Heavy Knotted | 4,500 |

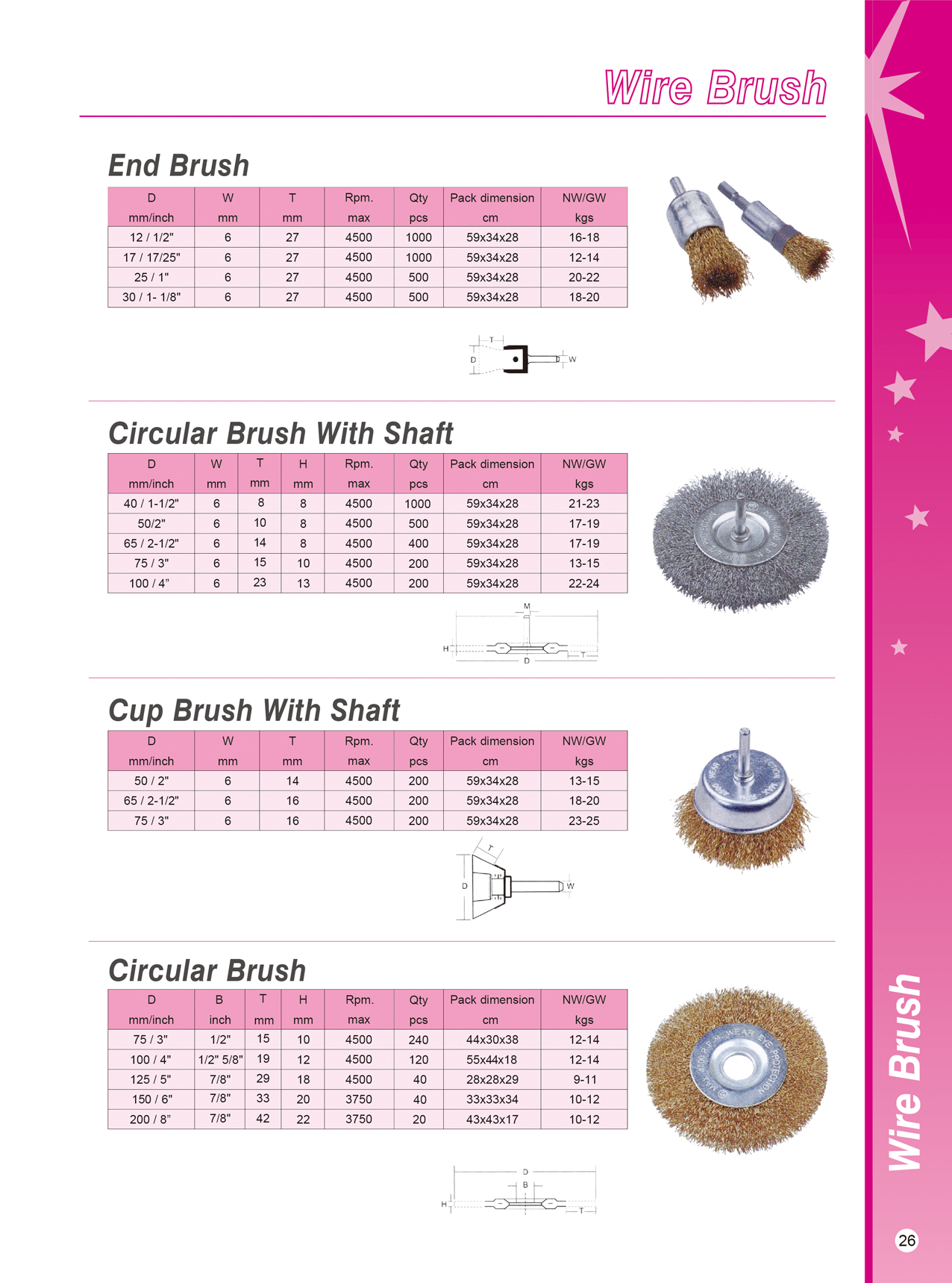

Shaft-Mounted Brushes
Shaft Details
- Standard Shaft Diameter: 6mm
- Available for: End Brushes, Circular Brushes, Cup Brushes
- Applications: Die grinders and drill attachments
Technical Features
Construction & Materials
- Brass-coated wire for corrosion resistance
- High-tensile steel wire for aggressive cleaning
- Crimped wire for flexible surface finishing
- Knotted wire for heavy-duty material removal
- Nylon filaments for delicate surface treatment
Primary Applications
Rust RemovalPaint StrippingWeld CleaningDeburringEdge BlendingSurface Preparation
