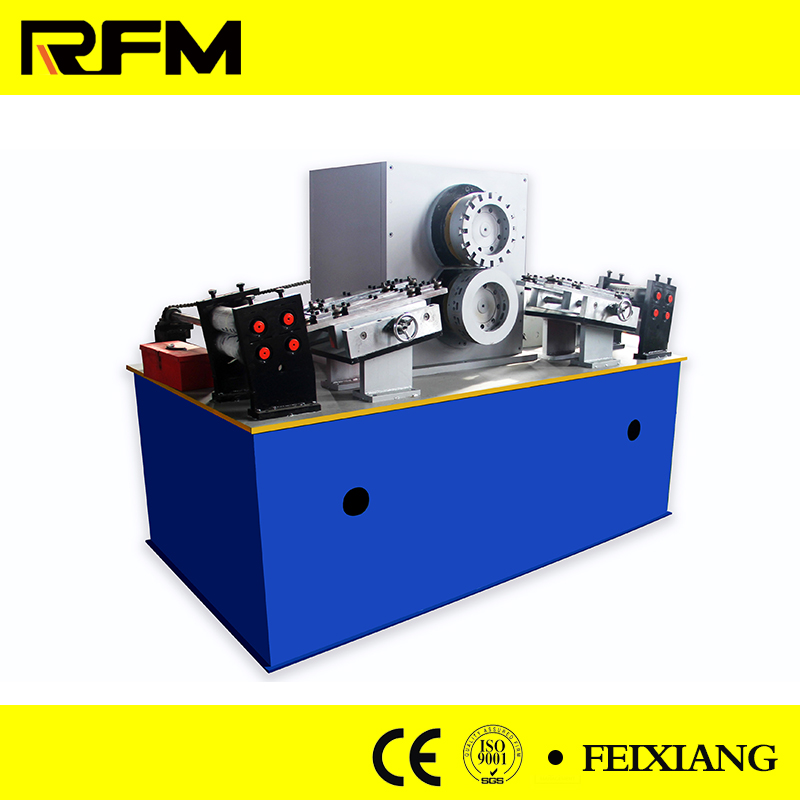

Rotary Hole Punching Machine
This rotary punching machine is designed for efficient and precise punching operations. It features robust construction and advanced control systems to ensure high performance and reliability.
Technical Specifications
Product Overview
Industrial Rotary Punching System
This high-performance rotary punching machine is engineered for precision processing of galvanized steel and iron sheets. Featuring a versatile rotary mechanism, it achieves consistent results at production speeds ranging from 20 to 100 meters per minute. The system includes a complete line setup from decoiler to control panel, ensuring a streamlined workflow for industrial manufacturing.
Technical Specifications
Performance Metrics
100 m/min
Max Speed
1.5 T
Recoiler Capacity
2 T
Machine Weight
Line Components
- Decoiler
- Punching machine
- Main forming machine
- Control panel
- Material Handling
- Galvanized steelIron sheet0.25-1mm thickness<550mpa yield strength
- Power Requirements
- 380V 50Hz 3-phase
Construction & Quality
Construction Details
| Part | Material/Spec |
|---|---|
| Machine base | 350H steel plate |
| Frame | 10mm middle plate |
| Punching Roller | Cr12 with quenching |
| Shaft | 45# steel |
Compliance
CEISO 9001SGS
Service & Support
- Warranty
- 2 years
- Support
- 24/7 online support and overseas engineer service
