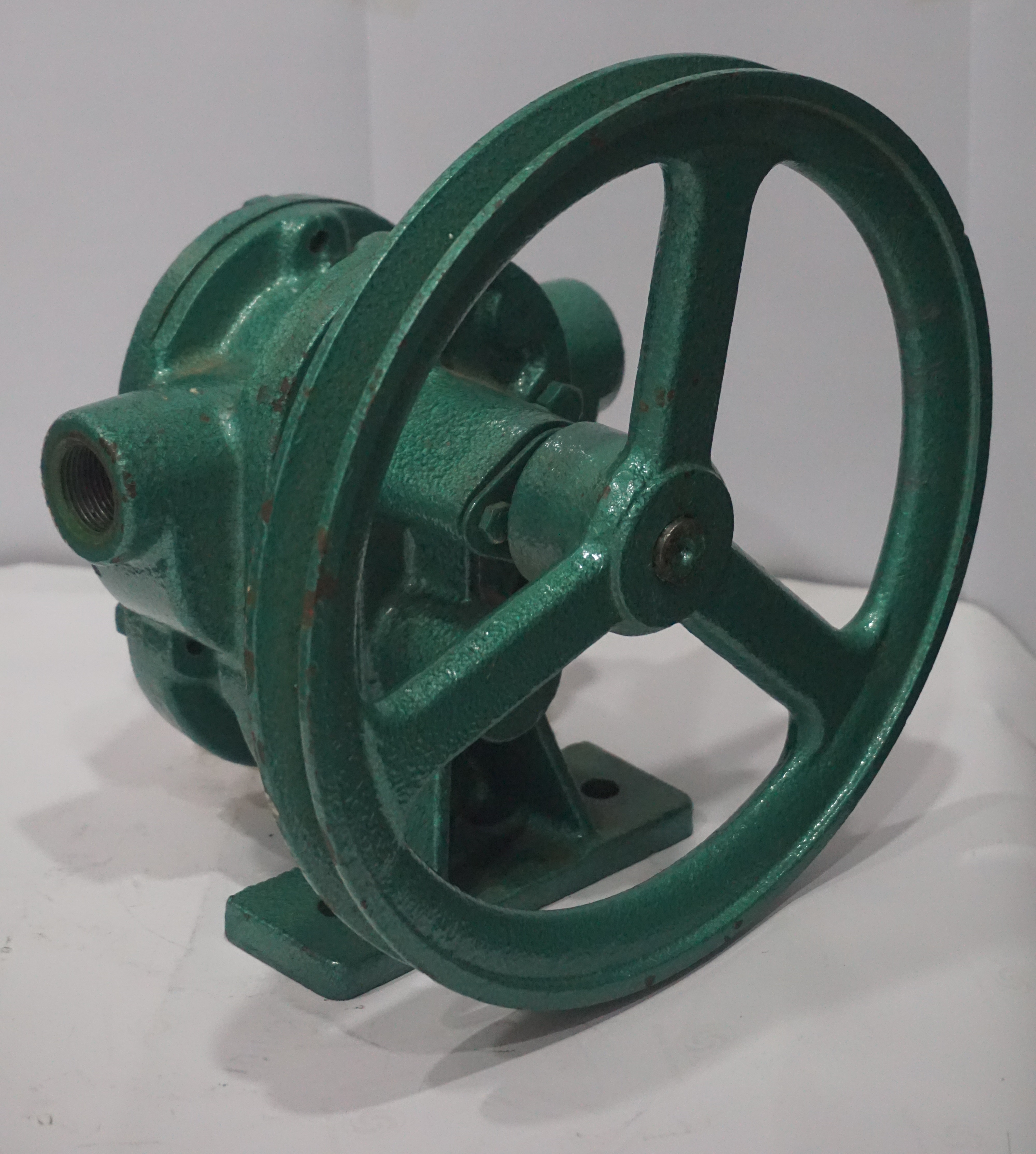

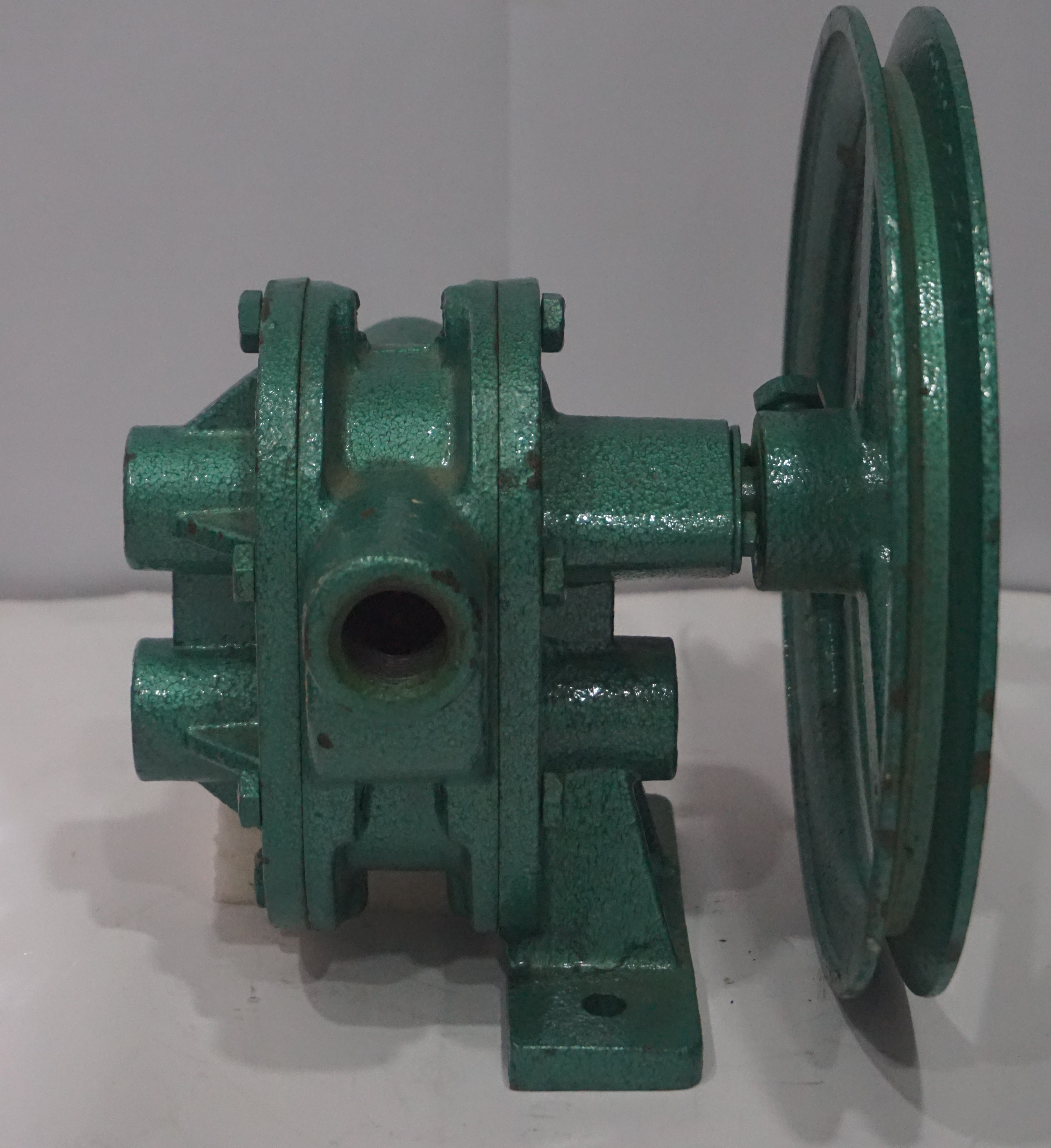

Rotary Gear Pump for Fluid Transfer
This rotary gear pump is a positive displacement pump designed for transferring fluids. It features threaded ports for easy connection to piping systems and is suitable for various industrial applications requiring reliable fluid transfer.
Technical Specifications
Product Overview
Rotary Gear Pump for Fluid Transfer
This rotary gear pump is a positive displacement solution designed for the efficient transfer of non-corrosive lubricating oils and equivalent liquids. It is engineered to handle fluids without solid particles or fibers, making it ideal for various industrial applications involving oil transportation and circulation. With a robust cast construction and precision-machined gears, this pump ensures reliable performance in machinery and manufacturing environments.
Technical Specifications
MB Series Performance Data
| Model | Flow Rate (L/min) | Pressure (Mpa) |
|---|---|---|
| MB 3/4 C | 39 | 0.2-0.4 |
| MB 1 C | 56 | 0.2-0.4 |
KM Series Performance Data
| Model | Pipe Diameter (inch) | Discharge (L/min) | Power (kW) | Weight (kg) |
|---|---|---|---|---|
| KM-13 | 1/2" | 21 | 0.2 | 7 |
| KM-20 | 3/4" | 37 | 0.4 | 10 |
| KM-25 | 1" | 55 | 0.75 | 16 |
| KM-35 | 1 1/4" | 121 | 1.5 | 28 |
| KM-40 | 1 1/2" | 212 | 2.2 | 30 |
| KM-50 | 2" | 242 | 3 | 55 |
| KM-80 | 3" | 456 | 5.5 | 95 |
Operating Parameters
Lift Height
10 meter
Lift
33 foot
Lift
- Delivery Speed
- 400 rpm
Application & Features
Design Features
Positive DisplacementCast Iron BodyThreaded PortsPulley Driven
- Suitable Fluids
- Non-corrosive lubricating oilEquivalent liquidsParticle-free fluids
