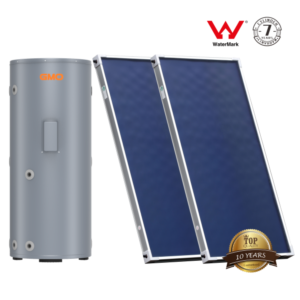

Roof Top Solar Water Heater
This roof-mounted, open circuit solar water heater is designed for economic service. Its compact design saves ground space while ensuring high efficiency and reliability.
Technical Specifications
Overview

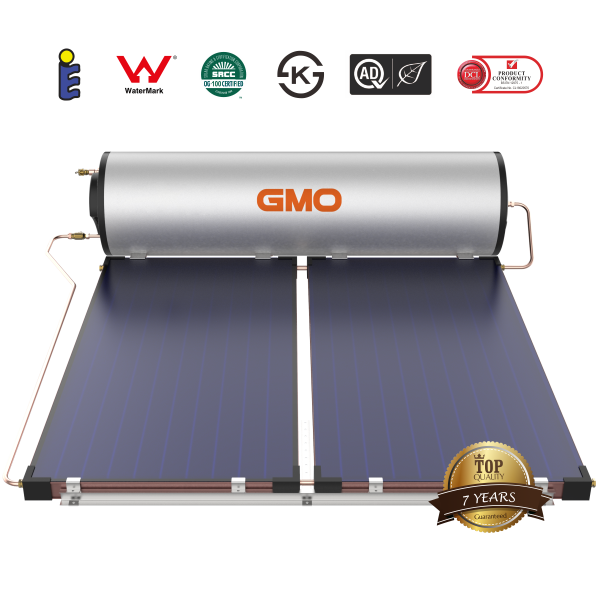

GMOD Series Solar Water Heater
The GMOD Series is a high-efficiency, roof-mounted open circuit solar water heating system designed for both residential and commercial applications. It features a durable titanium blue enamel tank and a high-performance solar collector with a sputtered selective surface for maximum energy absorption. Engineered for longevity, the system includes advanced corrosion protection and over-temperature safety devices to ensure reliable hot water production.
Technical Specifications
Available Capacities
- 150 Liters
- 200 Liters
- 300 Liters
- Tank Coating
- Titanium Blue Enamel
- Maximum Water Temperature Resistance
- 85 °C
- Collector Technology
- Sputtered Selective Surface
Safety & Durability
Warranty & Standards
Drinking Water Standard Compliant7 Year Warranty
- Safety Features
- Thermosyphon Arrestor ValveOver-temperature ProtectionStrong Anode Rod
System Configuration

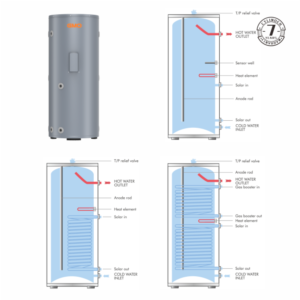

System Connections
- Cold Water Inlet
- Hot Water Outlet
- Solar In/Out
- Gas Booster Connection
- Sensor Well
- T/P Relief Valve Port
