Technical Specifications
Overview
High-Performance Robotic Hybrid Cable
This advanced hybrid cable is engineered specifically for demanding industrial automation and robotic applications. Featuring ultra-fine stranded bare copper conductors and a durable PUR jacket, it offers exceptional flexibility and resistance to oil, abrasion, and hydrolysis. Designed for both power and signal transmission, this cable ensures reliable performance in dynamic, high-movement environments.
Technical Parameters
- Temperature Range (Fixed)
- -50°C to 80°C
- Temperature Range (Occasional Movement)
- -30°C to 80°C
- Insulation Resistance (20°C)
- 100 MΩ.km
- Minimum Bending Radius
- 5D (D=cable diameter)
Electrical Ratings
Rated Voltage
600 V
UL/CSA
750 V
DIN/VDE (Max)
- Test Voltage (Core/Core)
- 4000 V/min
- Test Voltage (Core/Shield)
- 3000 V/min

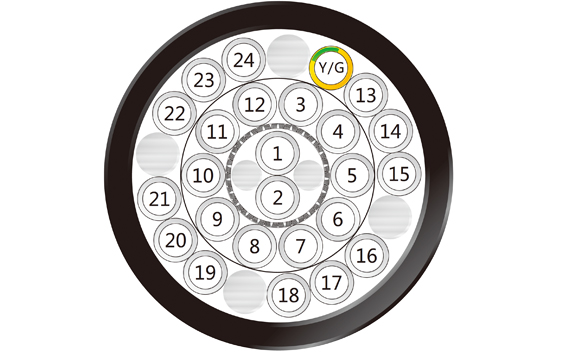

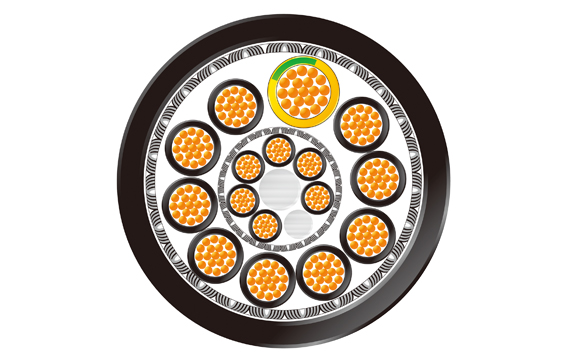

Cable Construction
Shielding
- 1.5mm² cores tinned copper braiding
- AL/Mylar foil
- Tinned copper overall shield
- Conductor Material
- Ultra-fine stranded bare copper (IEC 60228/VDE 0295 class 6)
- Insulation Material
- TPE
- Jacket Material
- PUR
Features & Compliance
Key Features
Halogen FreeFlame ResistantEMI ResistantOil ResistantAbrasion ResistantAnti-Hydrolysis
- Flame Resistance Standard
- IEC 60332-1
