Road Line Marking Machine
The road line marking machine is designed for efficiently applying markings to roads and paved surfaces. It features adjustable spray guns and line width controls for precise application.
Technical Specifications
Product Overview

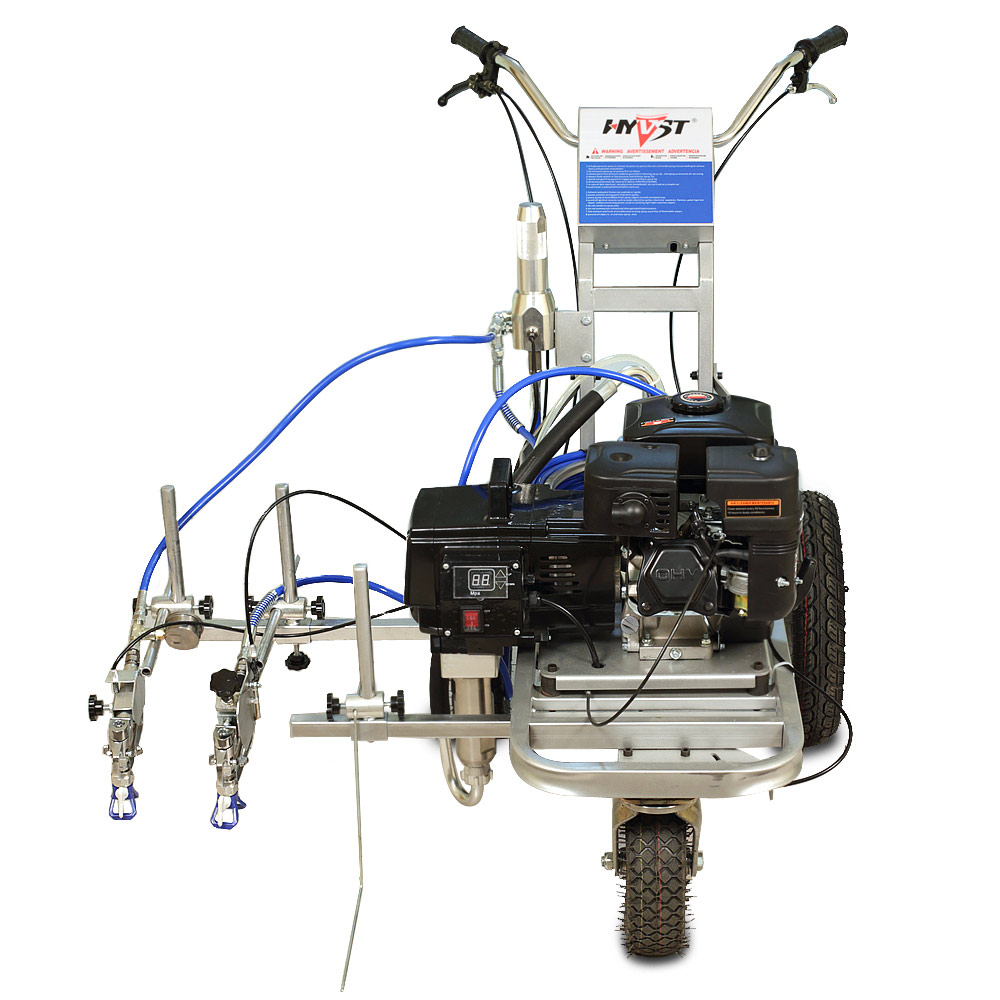

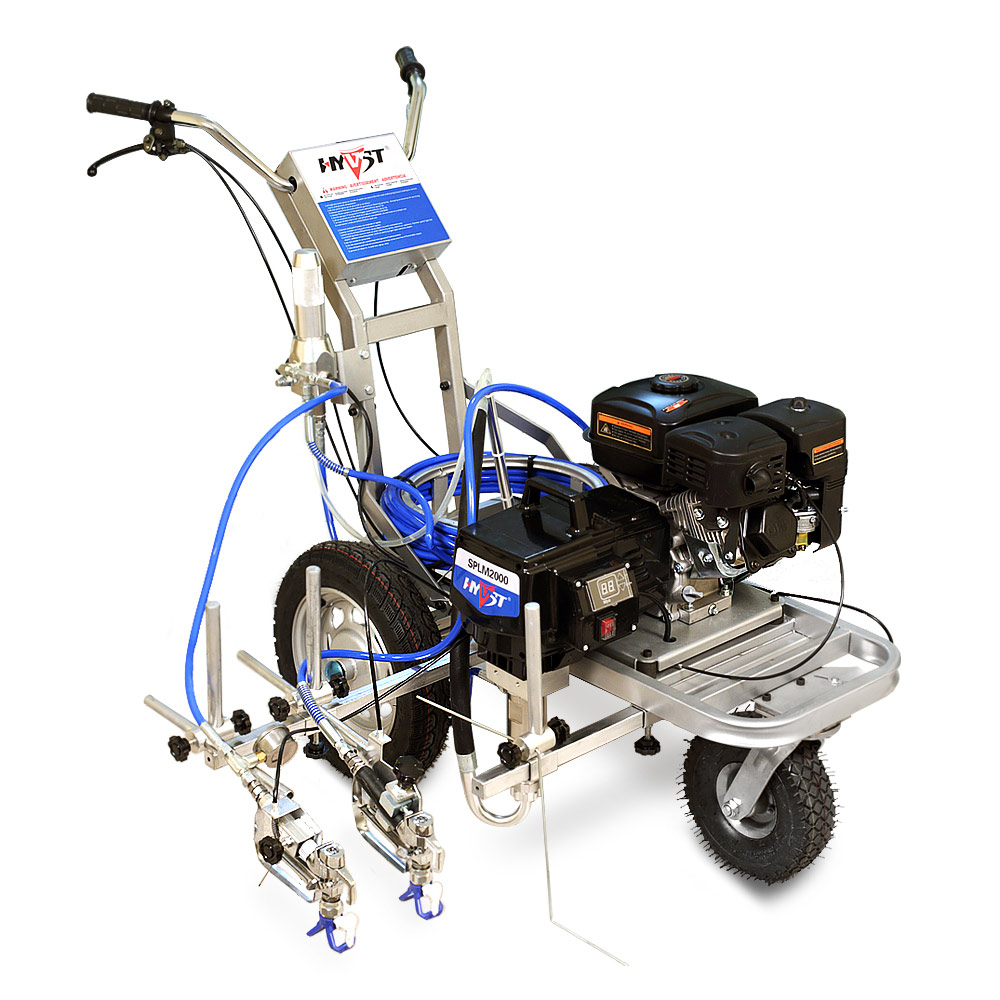

Professional Airless Line Striper
This professional-grade cold paint airless marking machine is engineered for high-efficiency line striping on roads and athletic fields. Featuring a robust gasoline engine and dual-gun capability, it ensures consistent output for medium-sized projects requiring precise solid or intermittent lines. Its advanced laser guide and digital control system make it an ideal choice for contractors looking for reliability and high productivity in pavement maintenance.
Technical Specifications
Core Performance
5 L/min
Max Flow Rate
220 bar
Max Pressure
4,000 W
Power Output
- Engine Type
- 200cc Gasoline Engine
- Maximum Tip Size
- 0.025 inch (Dual Gun Configuration)
Capabilities & Features
Key Capabilities
- Supports dual-gun simultaneous spraying
- Laser light guide for straight-line accuracy
- Digital display for precise operation control
- Front steering wheel with fixed-angle locking
- Compatible with low to high viscosity paints
- Flow-through manifold filter to reduce tip clogs
- System Attributes
- Airless SystemCold Paint ReadyPiston PumpStainless Steel Fluid Section
Logistics & Warranty
Weight and Dimensions
| Metric | Value |
|---|---|
| Net Weight | 122 kg |
| Gross Weight | 127 kg |
| Dimensions | 110 x 76 x 92 cm |
Warranty
1-Year Limited Warranty
