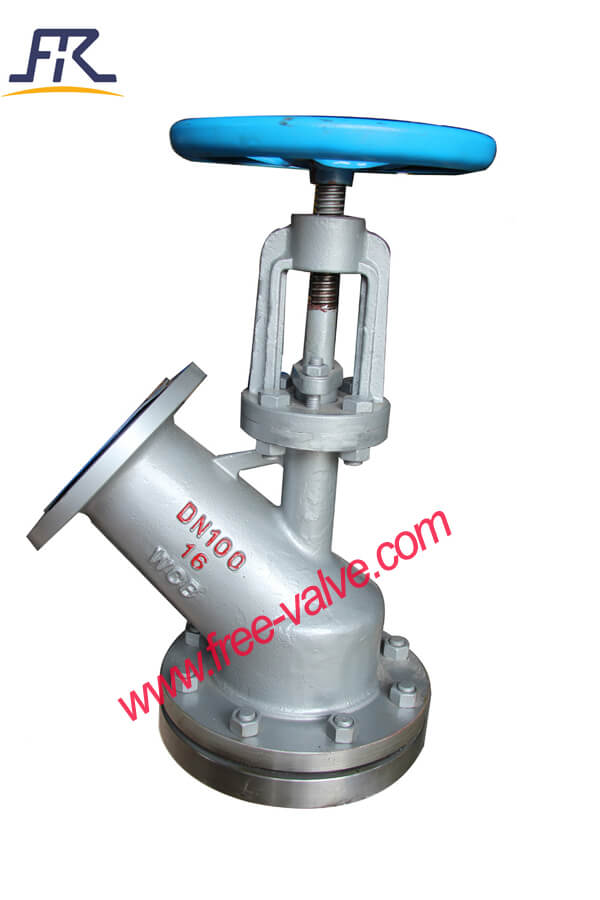

Rising Stem Tank Bottom Angle Valve
This manual tank bottom angle valve is designed for discharging material or samples from reactors, drains, or feed vessels. It can be welded or flange-mounted to the vessel, typically for feeding or draining applications.
Technical Specifications
Product Overview
Industrial Tank Bottom Angle Valve

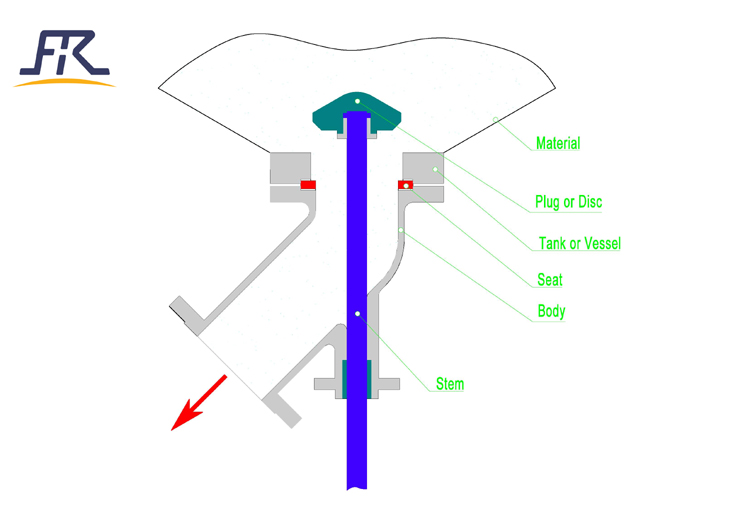

This manual tank bottom angle valve is engineered for efficient discharging and sampling from reactors, drains, and vessels. Its robust integrated structure features an anti-rotation mechanism to ensure precise straight-line motion, while the angled body design effectively eliminates dead space to prevent material accumulation. Built for demanding industrial environments, it offers superior erosion and corrosion resistance through advanced sealing technologies.
Technical Specifications
Available Outlet Angles
- 45°
- 50°
- 90°
Construction Materials
- Carbon Steel
- Stainless Steel
- Size Range
- DN50 to DN350
- Pressure Class
- Class150Class300
- Maximum Operating Temperature
- 425 ℃
Operational Details
Standards Compliance
| Category | Standard |
|---|---|
| Flange Connection | ASME B16.5, GB/T9113 |
| Design Standard | ASME B16.34 |
| Pressure Testing | GB/T13927, API598 |
- Operating Types
- ManualPneumaticElectric
- Sealing Surface Materials
- Cemented carbide overlay or tungsten carbide coating
Applications
Suitable Industries
- Petrochemical
- Alumina
- Steel
- Mining
- Pharmaceutical
- Fine Chemicals
