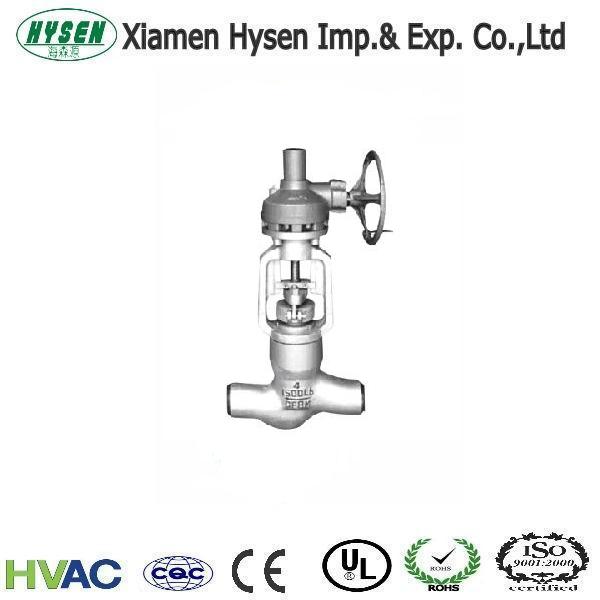

Rising Stem Pressure Seal Globe Valve
This rising stem globe valve features a pressure seal bonnet and plug type disc. It is designed for sizes 2'' to 8''.
Technical Specifications
Product Overview
Industrial Pressure Seal Globe Valve
This rising stem globe valve features a robust pressure seal bonnet design, ensuring leak-tight performance under demanding high-pressure and high-temperature conditions. Engineered with a plug-type disc for precise flow control, it is suitable for critical applications in power generation and chemical processing. The valve is compatible with various actuator types, allowing for seamless integration into diverse industrial automation systems.
Technical Specifications
Body Material Options
- Carbon Steel (A216 WCB)
- Alloy Steel (A217 WC6, WC9, C5)
- Stainless Steel (A351 CF8, CF8M, CF3, CF3M)
- Nominal Size Range
- 2 inch – 8 inch
- Key Design Features
- Rising StemOS&YPressure Seal BonnetPlug Type Disc
Operational Details
Supported Actuators
HandwheelBevel GearElectricPneumaticHydraulic
Compliance & Standards
Industry Standards Compliance
| Category | Standard |
|---|---|
| Face to Face | ANSI B16.10, DIN 3202, EN 558 |
| End Flanges | ANSI B 16.5, DIN 2501 |
| B.W. Ends | ANSI B 16.25 |
| Testing | API 598 |
| Trim Material | API 600 |
- Quality Certifications
- ISO 9001:2000CERoHSUL
