Technical Specifications
Product Overview
Professional Compaction Performance

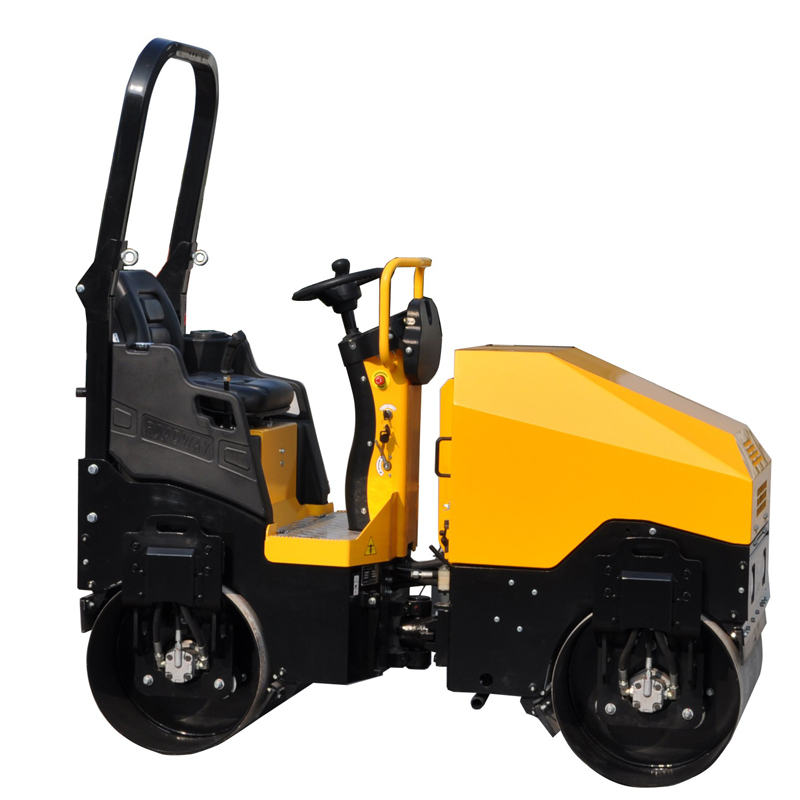

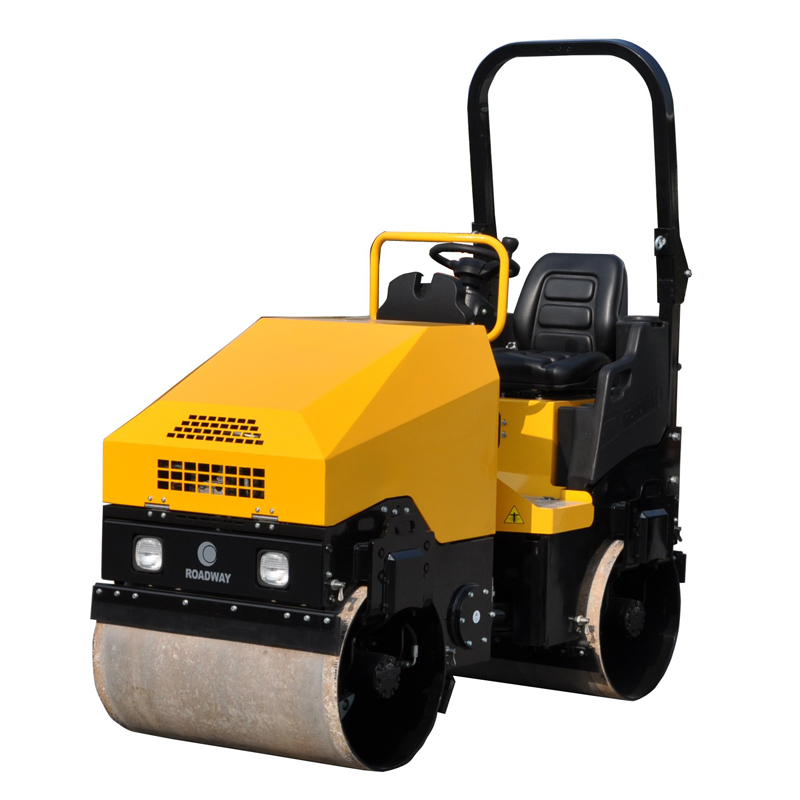

The RWYL51BC is a fully hydraulic ride-on vibratory roller designed for high-efficiency compaction of asphalt, sand, soil, and gravel. It features a robust Yanmar diesel engine and advanced hydraulic components to provide reliable performance in demanding construction environments. With intuitive integrated controls and a foldable protection system, this machine ensures both ease of operation and operator safety on site.
Performance Metrics
Operational Capabilities
8 km/h
Max Speed
1,700 kg
Working Weight
30 %
Climbing Capacity
65 Hz
Vibration Frequency
Technical Specifications
Engine & Power
| Parameter | Value |
|---|---|
| Engine Model | Yanmar 3TNV-76 |
| Power Output | 25 hp @ 3200 rpm |
| Fuel Type | Diesel |
| Fuel Tank Capacity | 30 L |
Compaction System
- Double motor drive
- Hydraulic steering and vibration
- Stepless speed walking
- Electrically controlled water-spray system
- Integrated micro-computer control plate
Physical Dimensions
Dimensions
| Dimension | Measurement |
|---|---|
| Length | 2140 mm |
| Width | 980 mm |
| Height | 2230 mm |
| Steel Drum Width | 900 mm |
