Technical Specifications
Product Overview

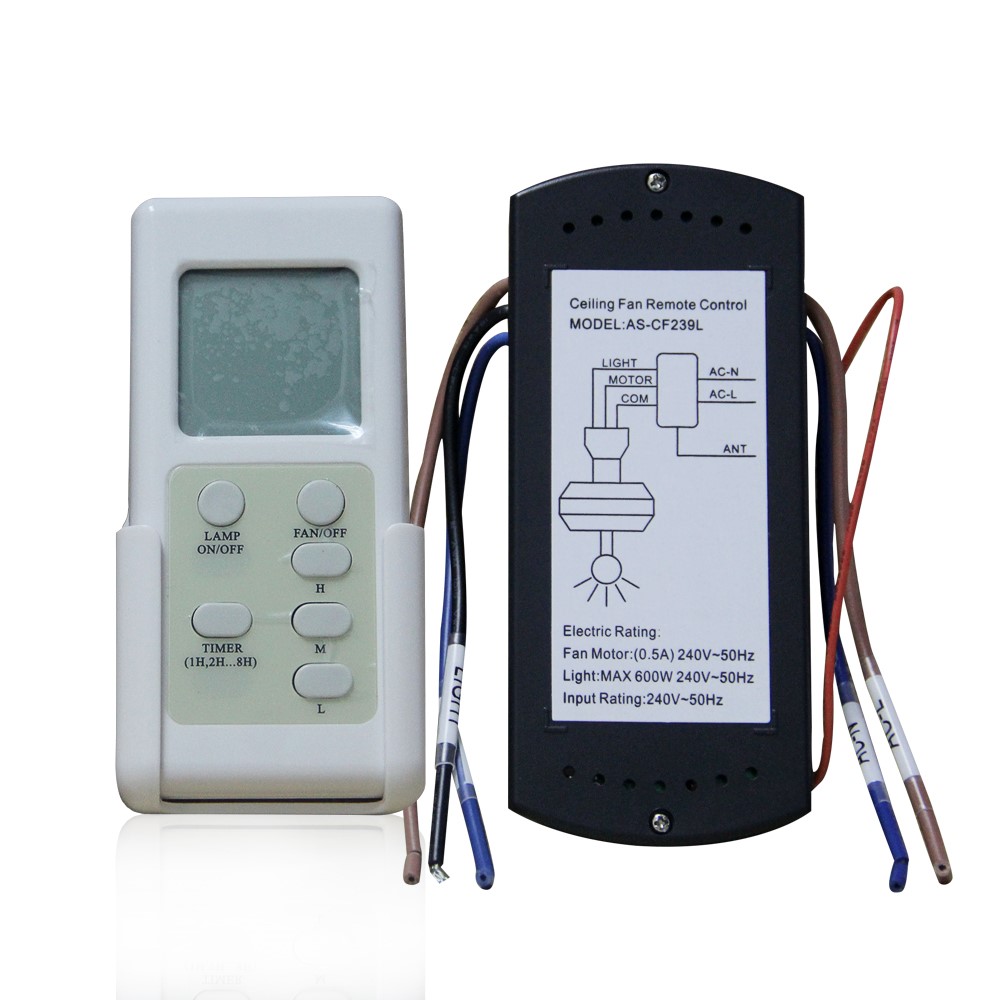

Universal Ceiling Fan Remote Control Kit

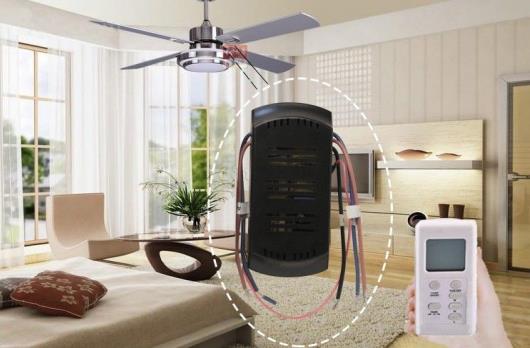

The AS-CF239L is a reliable RF-based remote control system designed to modernize standard ceiling fans with remote functionality. This versatile kit allows users to adjust fan speeds, toggle lights, and set timed operation durations conveniently from a handheld transmitter. It is suitable for a wide range of ceiling fans, including the retrofitting of older models for enhanced energy efficiency and comfort in various indoor environments like homes and conference rooms.
Technical Specifications
- Input Voltage
- 240 V
- RF Frequency
- 433.92 MHz
- Speed Adjustment Method
- Capacitor
- Code Configuration
- 16 DIP switch settings
Capacity & Load
Maximum Load Capacity
600 W
Max Light Power
120 W
Max Motor Power

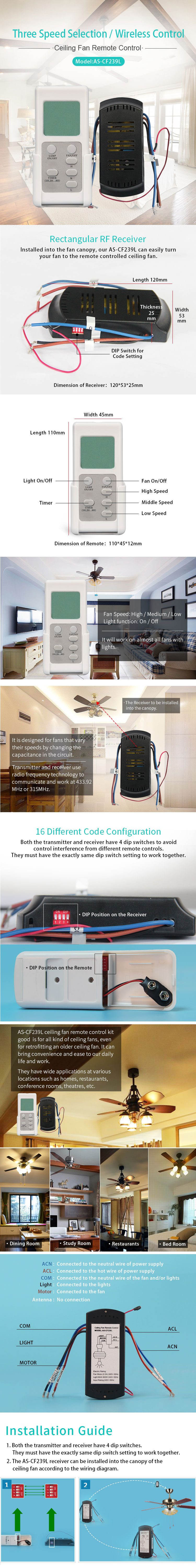

Physical Dimensions
Unit Dimensions
| Component | Dimensions (L x W x H) |
|---|---|
| Receiver | 120mm x 53mm x 25mm |
| Remote Control | 110mm x 45mm x 12mm |
Features
Functionality List
- Fan Speed Control (High/Medium/Low)
- Timer Function (1H, 2H, 4H, 8H)
- Light On/Off Control
- Interference Prevention via 4-DIP Switch
