Reverse Osmosis Membrane Element
This reverse osmosis membrane element is designed for water purification systems. It effectively removes impurities and contaminants from water, providing clean and safe drinking water.
Technical Specifications
Overview
High-Performance Reverse Osmosis Element
This reverse osmosis membrane element is engineered for efficient water purification in residential, commercial, and industrial systems. Designed to effectively remove impurities and contaminants, it ensures the delivery of clean, high-quality water. Its robust construction and high flux rate make it a reliable choice for consistent filtration performance across various water conditions.
Performance & Certification
Available Capacities
- 200 GPD
- 600 GPD
- 2800 GPD
- Certifications
- NSF Certified
Technical Specifications

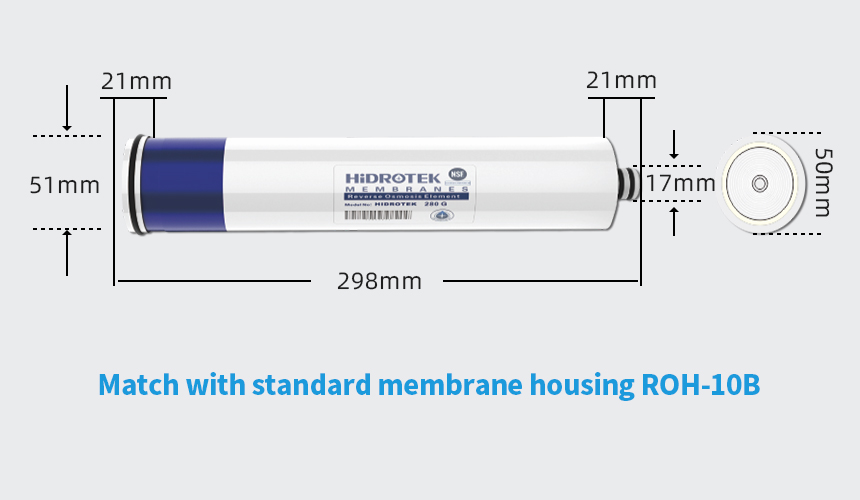

Physical Dimensions
| Parameter | Measurement |
|---|---|
| Length | 298 mm |
| Body Diameter | 51 mm |
| End Cap Diameter | 50 mm |
| End Cap Thickness | 21 mm |
| Connector Diameter | 17 mm |
- Housing Compatibility
- Standard membrane housing ROH-10B
