Reverse Osmosis Drinking Water Treatment Plant
This water treatment plant is engineered to purify water, producing both pure and mineral water. It employs a multi-stage process with pre-treatment, reverse osmosis membrane separation, and post-treatment to eliminate impurities, contaminants, and dissolved solids.
Technical Specifications
Product Overview
Reverse Osmosis Treatment System

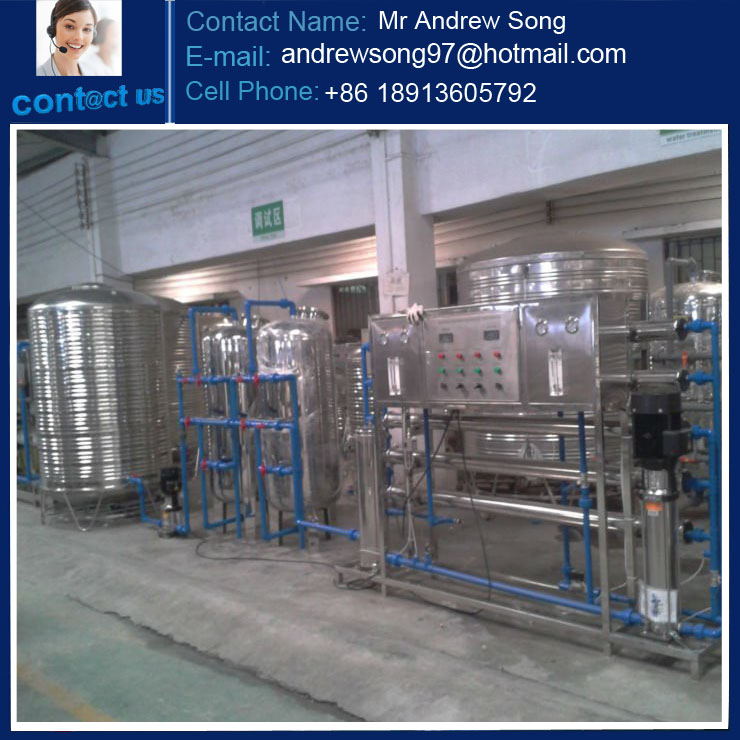

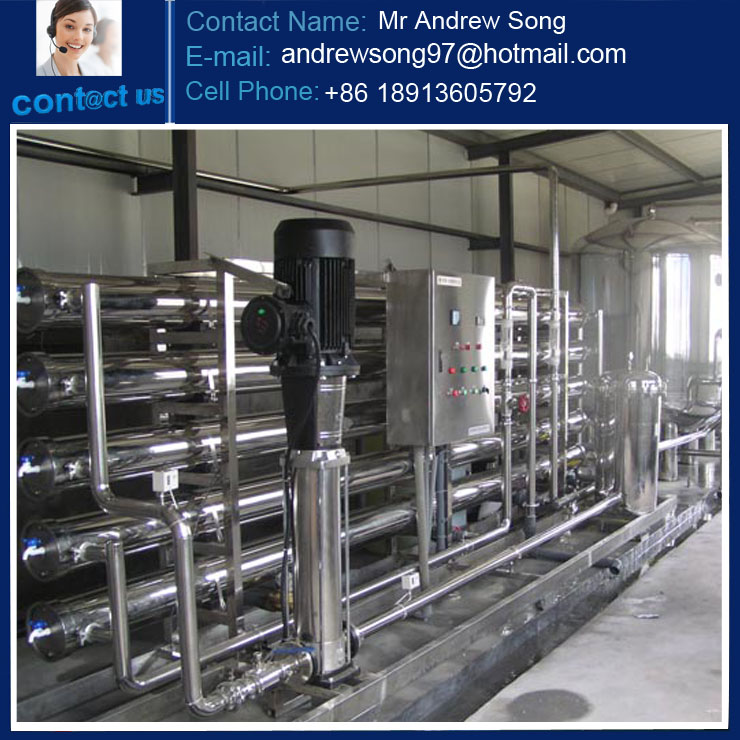

This small-scale reverse osmosis water treatment plant is designed for reliable production of high-quality pure and mineralized drinking water. It features an integrated, automated system mounted on a stainless steel frame that includes multi-stage pre-filtration, high-pressure pumping, and RO membrane separation. Managed by a central PLC controller, this solution is ideal for applications requiring unattended operation, consistent high-volume filtration, and long service life.
Technical Specifications
Integrated Components
- Booster pump
- Quartz sand filter
- Active carbon filter
- Micropore filter
- High-pressure pump
- Reverse osmosis (RO) membrane
- Conductivity meter
- UV sterilizer
- PLC control unit
Production Capacity by Model
| Model | Capacity (m3/h) |
|---|---|
| RO-1000 | 1 |
| RO-2000 | 2 |
| RO-3000 | 3 |
| RO-4000 | 4 |
| RO-5000 | 5 |
| RO-10000 | 10 |
Key Features
- Core Benefits
- Automated PLC ControlStainless Steel FrameHigh-Volume FiltrationBacteria & Virus RemovalLong Service LifeUnattended Operation
