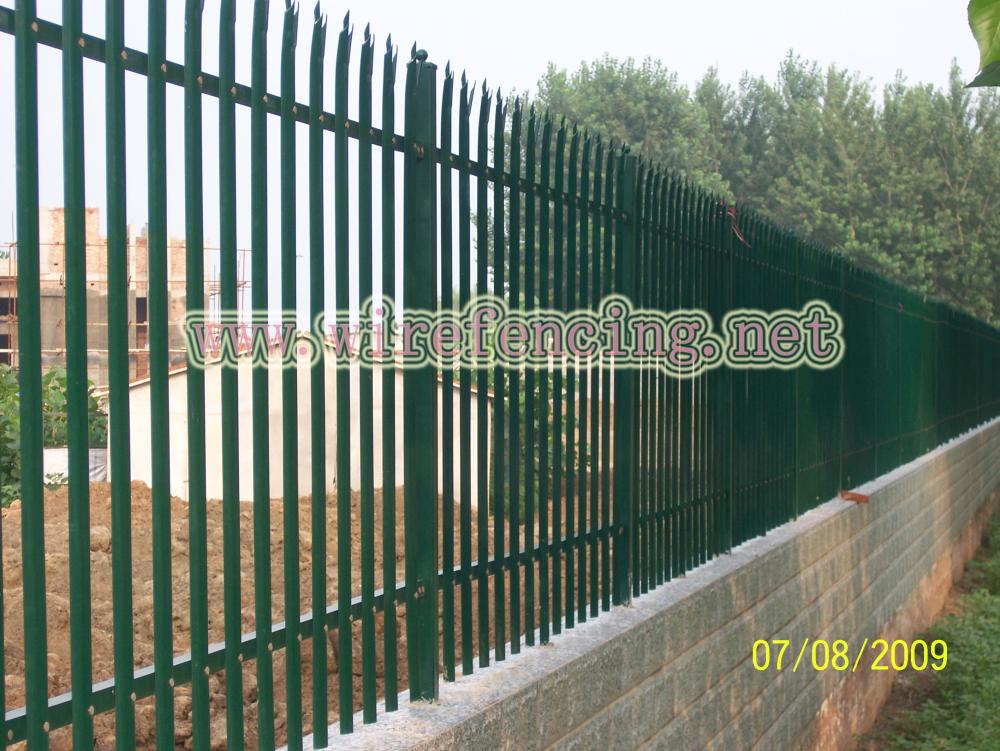

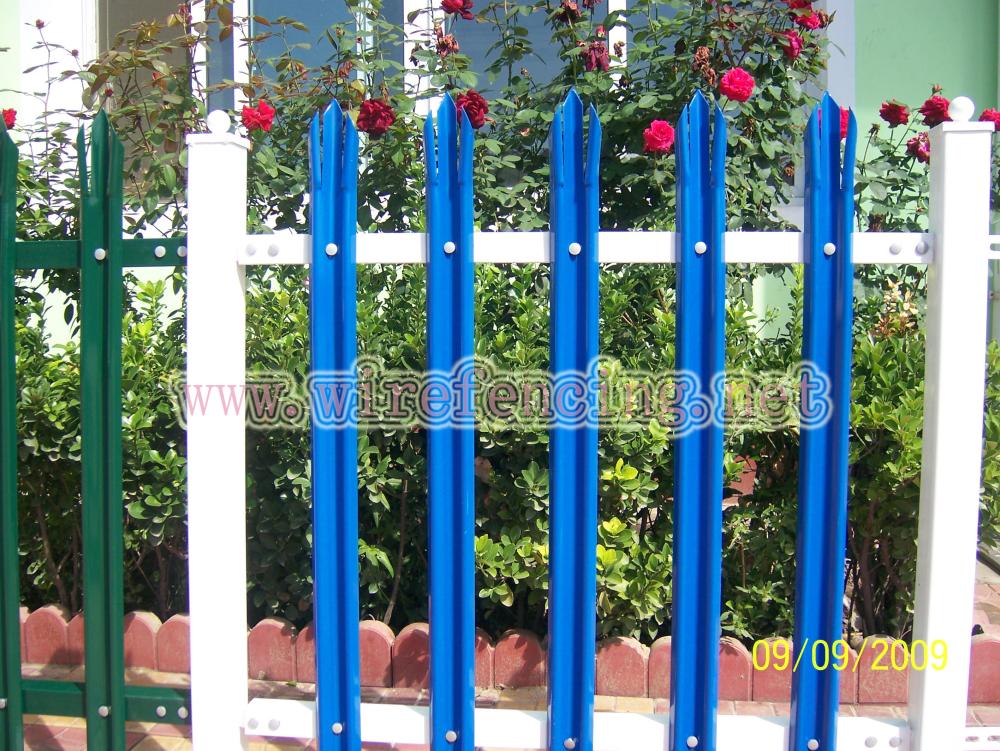

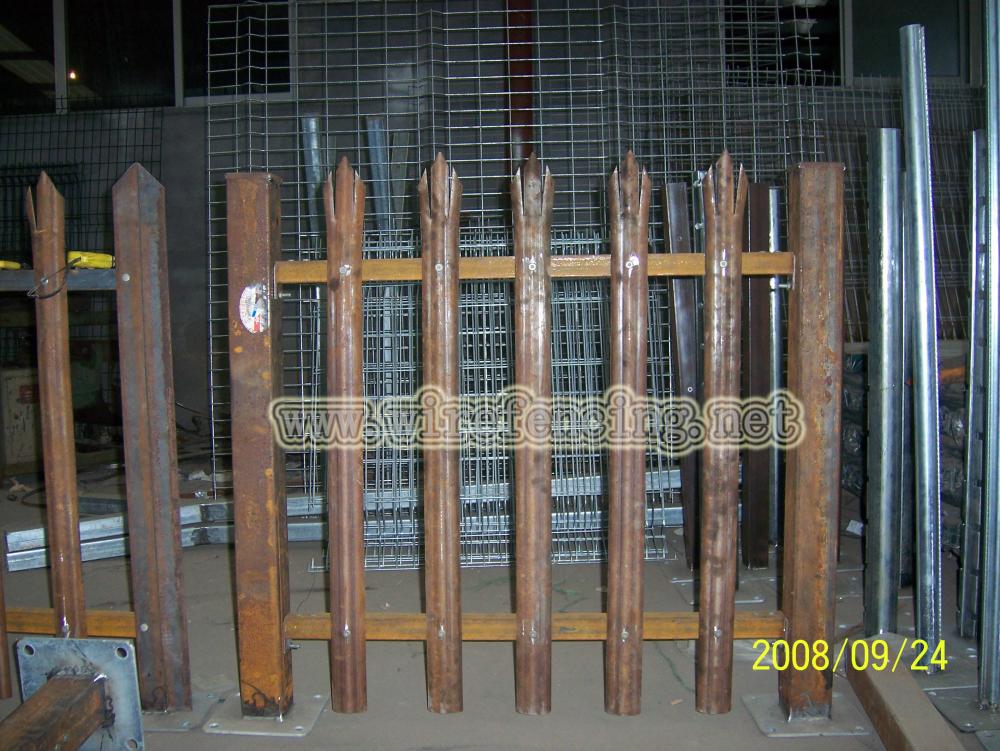

Residential Steel Palisade Fence
Steel palisade fences are available with galvanized or color coated finishes. The fences can be configured with either 'W' or 'D' pale sections, offering different levels of security and aesthetic options.
Technical Specifications
Product Overview
Robust Residential Palisade Fencing
This residential steel palisade fencing is engineered for both security and aesthetic appeal. Constructed from high-quality hot and cold rolled steel, each panel features 17 vertical pales supported by durable 102 x 44 joist posts. Available in various finishes and profiles, it offers a flexible security solution that can be supplied as pre-assembled panels or bundled components for on-site installation.
Construction & Design
Supply Options
- Pre-assembled panels
- Bundled for site assembly
- Available Pale Profiles
- D-ProfileW-Profile
- Pales per Panel
- 17
- Joist Post Dimensions
- 102 x 44 mm
Finishes & Durability
Finishes
GalvanisedColour Coated
Stock Specifications
Standard Stock Fencing Options
| Height (m) | Pale Thickness | Profile | Head Style |
|---|---|---|---|
| 1.2 | 3.0mm | D | Round & Notched |
| 1.5 | 3.0mm | D | Round & Notched |
| 1.8 | 3.0mm | D | Round & Notched |
| 1.8 | 3.0mm | D | Triple Pointed |
| 1.8 | 2.0mm | W | Triple Pointed |
| 2.0 | 3.0mm | D | Round & Notched |
| 2.0 | 3.0mm | D | Triple Pointed |
| 2.0 | 2.0mm | W | Triple Pointed |
| 2.1 | 3.0mm | D | Triple Pointed |
| 2.1 | 2.0mm | W | Triple Pointed |
| 2.4 | 3.0mm | D | Standard |
