Residential Air Source Heat Pump for Heating and Cooling
This residential air source heat pump features a compact, modern design and a user-friendly control panel. It uses an environmentally friendly refrigerant and air as a heating source to supply hot water.
Technical Specifications
Overview
High-Efficiency Residential Air Source Heat Pump
This residential air source heat pump is an energy-saving solution designed for both heating and cooling applications, capable of supplying domestic hot water over 50°C. Featuring a compact and modern design with built-in circulating pumps, the system utilizes environment-friendly refrigerants to extract heat from outside air, even in colder temperatures. It is engineered for quiet operation, easy installation, and low maintenance, making it a reliable and cost-effective choice for year-round home comfort.
Key Features
- Key Benefits
- Environment-friendlyHigh efficiencyEnergy savingHeating and hot waterWide application range

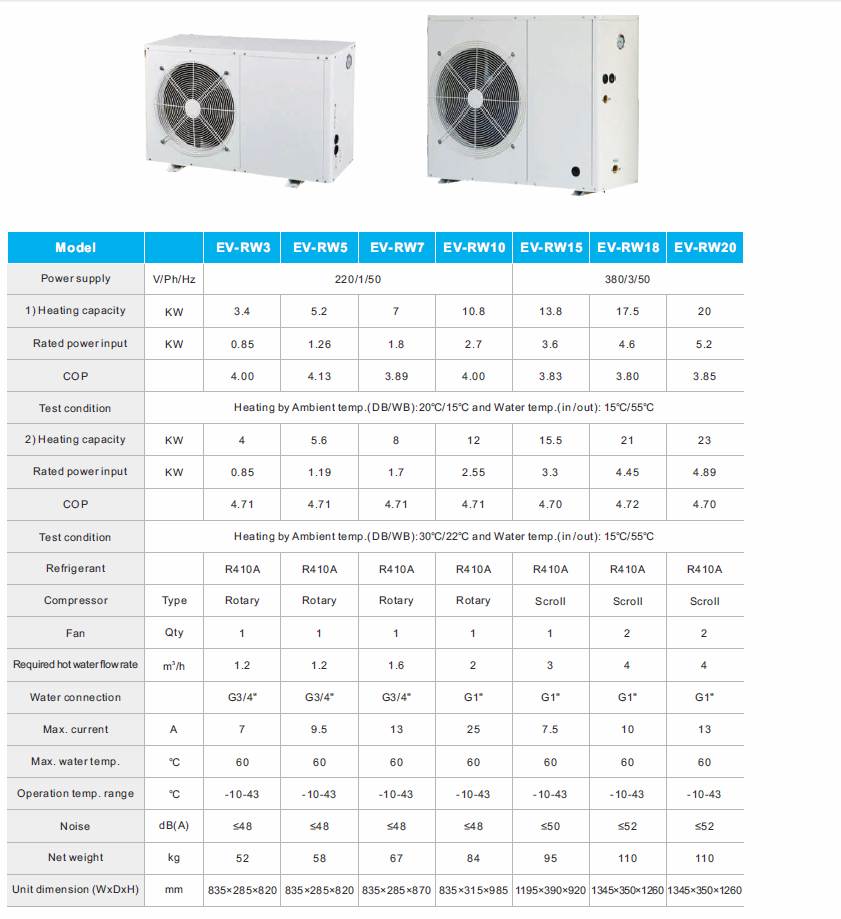

Technical Specifications
Performance Specifications
| Model | Heating Capacity (kW) | Max Water Temp (°C) | Noise (dB) |
|---|---|---|---|
| EV-RW3 | 3.4 | 60 | ≤48 |
| EV-RW5 | 5.2 | 60 | ≤48 |
| EV-RW7 | 7 | 60 | ≤48 |
| EV-RW10 | 10.8 | 60 | ≤48 |
| EV-RW15 | 13.8 | 60 | ≤50 |
| EV-RW18 | 17.5 | 60 | ≤52 |
| EV-RW20 | 20 | 60 | ≤52 |
System Components
- Stainless steel plate heat exchanger
- Rotary or scroll compressor
- Built-in circulating pump
- User-friendly control panel
Operational Data
Power Supply Options
220V/1Ph/50Hz380V/3Ph/50Hz
- Refrigerant
- R410A
- Operating Temperature Range
- -10°C to 43°C
