Technical Specifications
Product Overview
High-Performance Refrigerant Recovery

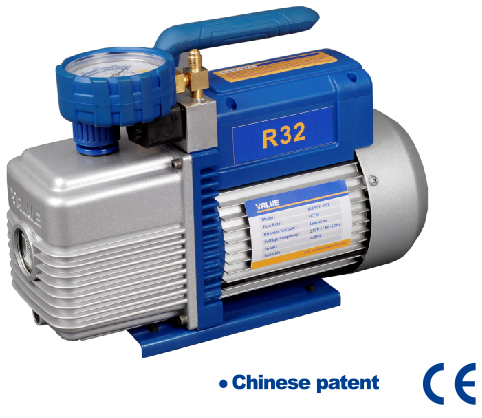

This professional-grade vacuum pump is specifically engineered for use with R32 and 1234yf refrigerants, providing an essential solution for HVAC evacuation tasks. Designed with a robust oil-sealed rotary vane mechanism, it ensures reliable removal of moisture and air from refrigeration systems to maintain optimal performance. It is a trusted choice for technicians seeking precise, efficient, and durable equipment in the field.
Certifications
Certifications
CEChinese Patent
Technical Specifications
Key Performance Metrics
15 Micron
Ultimate Vacuum
4 CFM
Free Air Displacement
Model Specifications
| Model | Pump Speed | Motor | Oil Capacity |
|---|---|---|---|
| V-i240Y | 2 CFM | 1/4 HP | 250 ml |
| V-i260Y | 3 CFM | 1/4 HP | 250 ml |
| V-i280Y | 3.5 CFM | 1/4 HP | 250 ml |
| V-i2120Y | 5 CFM | 1/2 HP | 320 ml |
Power Requirements
- Electrical Input
- 220V-230V / 50Hz
Compatibility
- Supported Refrigerants
- R321234yf
