Recessed COB LED Downlight

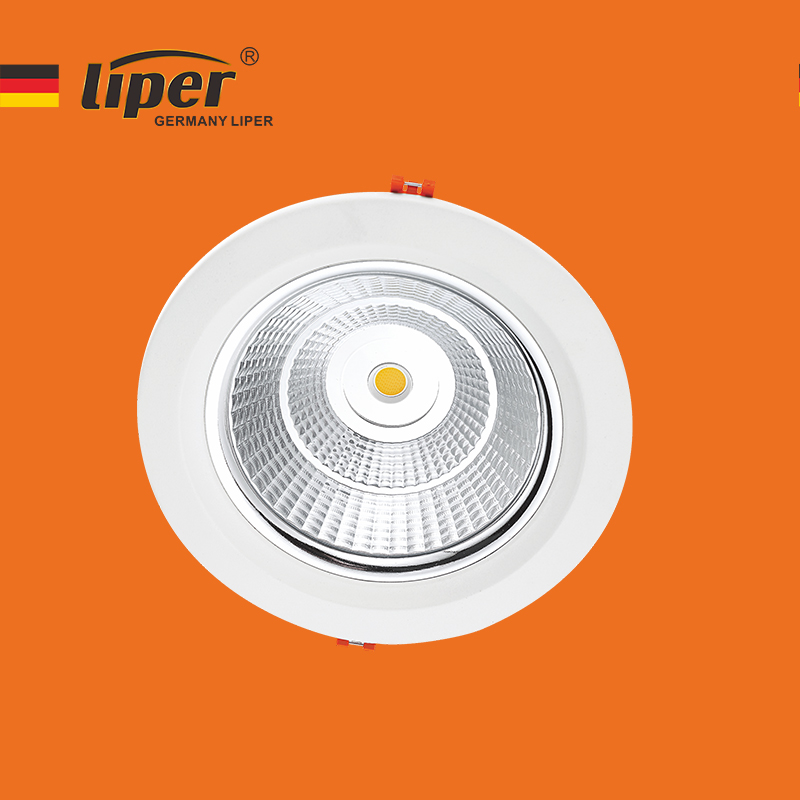

This COB LED downlight is designed for recessed ceiling installation. It features a circular housing with heat sink fins for thermal management and spring clips for secure mounting.
Technical Specifications
Product Overview
High-Performance Recessed COB LED Downlight
This recessed COB (Chip-on-Board) LED downlight is engineered for efficient, focused illumination in various professional settings. Featuring a robust white circular housing and an integrated reflector system, it minimizes glare while maximizing light output. Designed for durability and thermal efficiency, it includes a heat sink for long-lasting performance, making it an ideal choice for commercial, hospitality, and high-end residential applications.
Technical Specifications
Electrical Requirements
220 V
Input Voltage
50 Hz
Frequency
Model Dimensions & Cutout Guide
| Wattage | Product Size (mm) | Cut Size (mm) |
|---|---|---|
| 7W | 98*46 | 75-85 |
| 10W | 115*47 | 95-105 |
| 15W | 140*49 | 120-130 |
| 20W | 160*50 | 130-150 |
| 30W | 196*60 | 160-185 |
| 40W | 225*70 | 180-215 |
| 50W | 225*95 | 180-215 |
Installation & Design
- Key Features
- Recessed MountingSpring Clips IncludedIntegrated Heat SinkCOB Technology
