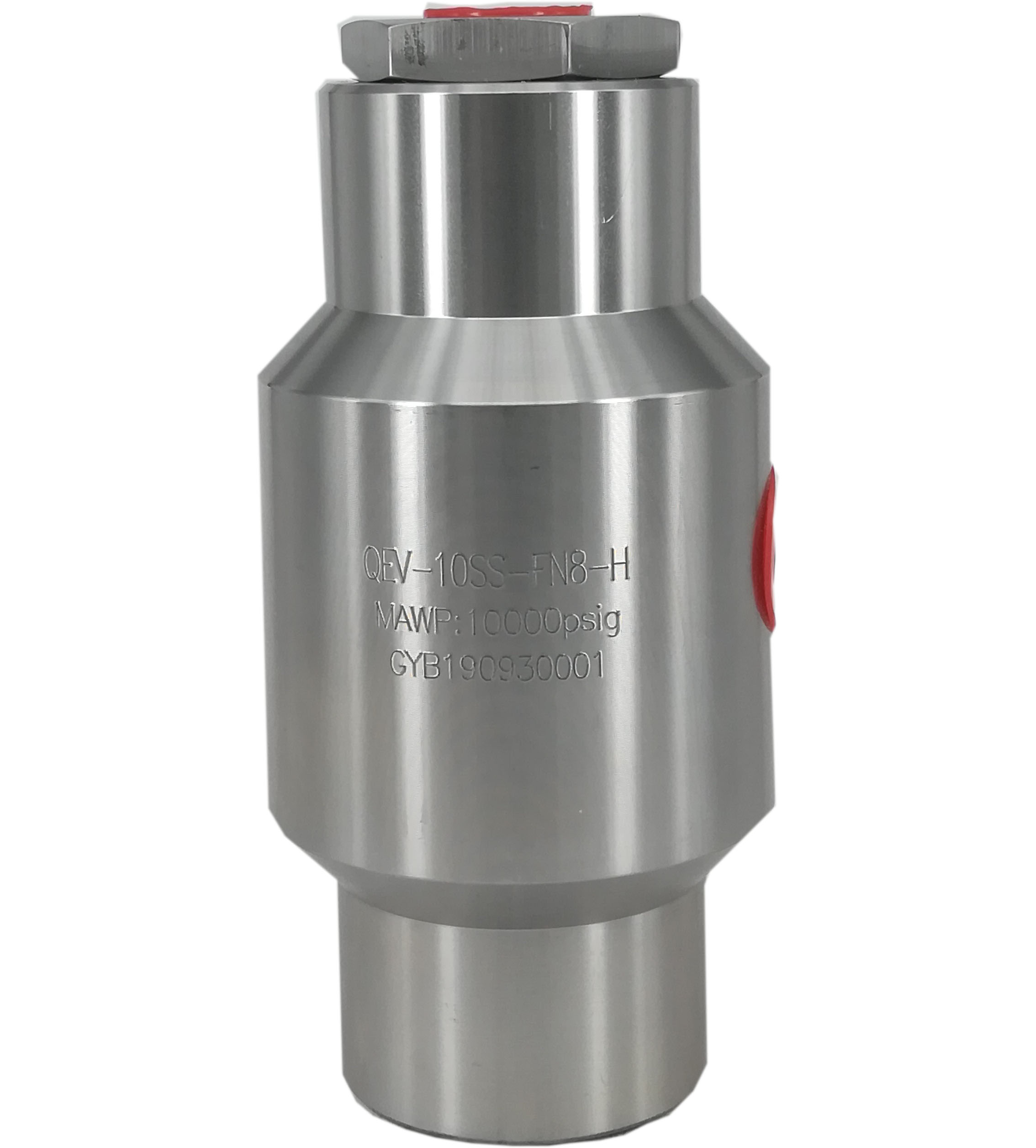

Quick Exhaust Valve
This quick exhaust valve is designed to rapidly bleed control pressure from an actuator or other device. It is typically used on safety valves, control valves, or other devices that must respond quickly when control signals are removed.
Technical Specifications
Product Overview
High-Performance Quick Exhaust Valve
This quick exhaust valve is precision-engineered to rapidly bleed control pressure from actuators and safety valves, ensuring immediate response when control signals are removed. Constructed from durable 316 stainless steel, it is designed for reliable operation in high-pressure industrial environments. The valve features a large CV factor for fast system response and operates with minimal noise, making it an ideal choice for pneumatic and hydraulic control systems.

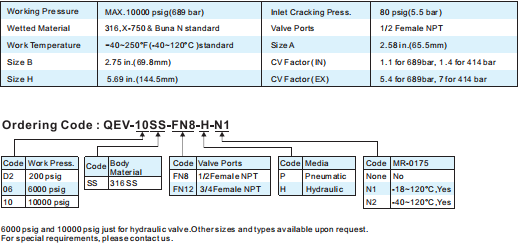

Technical Specifications
Flow Capacity (CV Factor)
1.1 CV
CV (IN) at 689 bar
5.4 CV
CV (EX) at 689 bar
Physical Dimensions
| Dimension | Value |
|---|---|
| Size A | 65.5 mm |
| Size B | 69.8 mm |
| Size H | 144.5 mm |
Key Features
- Rapid pressure bleeding for actuators
- Easy installation and maintenance
- No special tools required for assembly
- Low operating noise
- Maximum Allowable Working Pressure
- 10000 psig
- Inlet Cracking Pressure
- 80 psig
- Materials and Standards
- 316 Stainless SteelBuna N SealsX-750NACE MR-0175 Compliant
- Operating Temperature Range
- -40 to 120°C
