Technical Specifications
Product Overview
Precision Timing Solutions

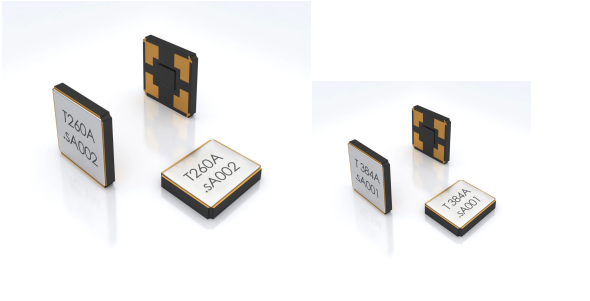

This comprehensive series of quartz crystal resonators and oscillators offers high-precision timing for diverse electronic applications. Featuring both resistance-welded and reflow-resistance designs, these components provide superior frequency pullability and low equivalent series resistance. Designed for efficiency and performance, they serve as the ideal choice for clocking, consumer electronics, and high-density industrial control systems.
- Compliance
- RoHS CompliantPb Free
Series Specifications
Series Selection Guide
| Series | Frequency Range | Key Features |
|---|---|---|
| TF | 32.768 kHz | Resistance welded, Clock optimization |
| 49S | 3.579 - 64 MHz | Resistance welded, Low cost |
| M | 8.000 - 54.000 MHz | Reflow resistance, High volume |
| K | 32.768 kHz | Reflow resistance, Compact |
| T | 19.2 - 38.4 MHz | Reflow resistance, High stability |
| TC | 10.000 - 70.000 MHz | HCMOS, Tri-state, Low jitter |
Oscillator Performance
TC Series Performance Metrics
2.5 ppm
Frequency Stability
Key Operational Features
- HCMOS output format
- Integrated Tri-state function
- Low current consumption
- Low phase noise
- Low jitter performance
