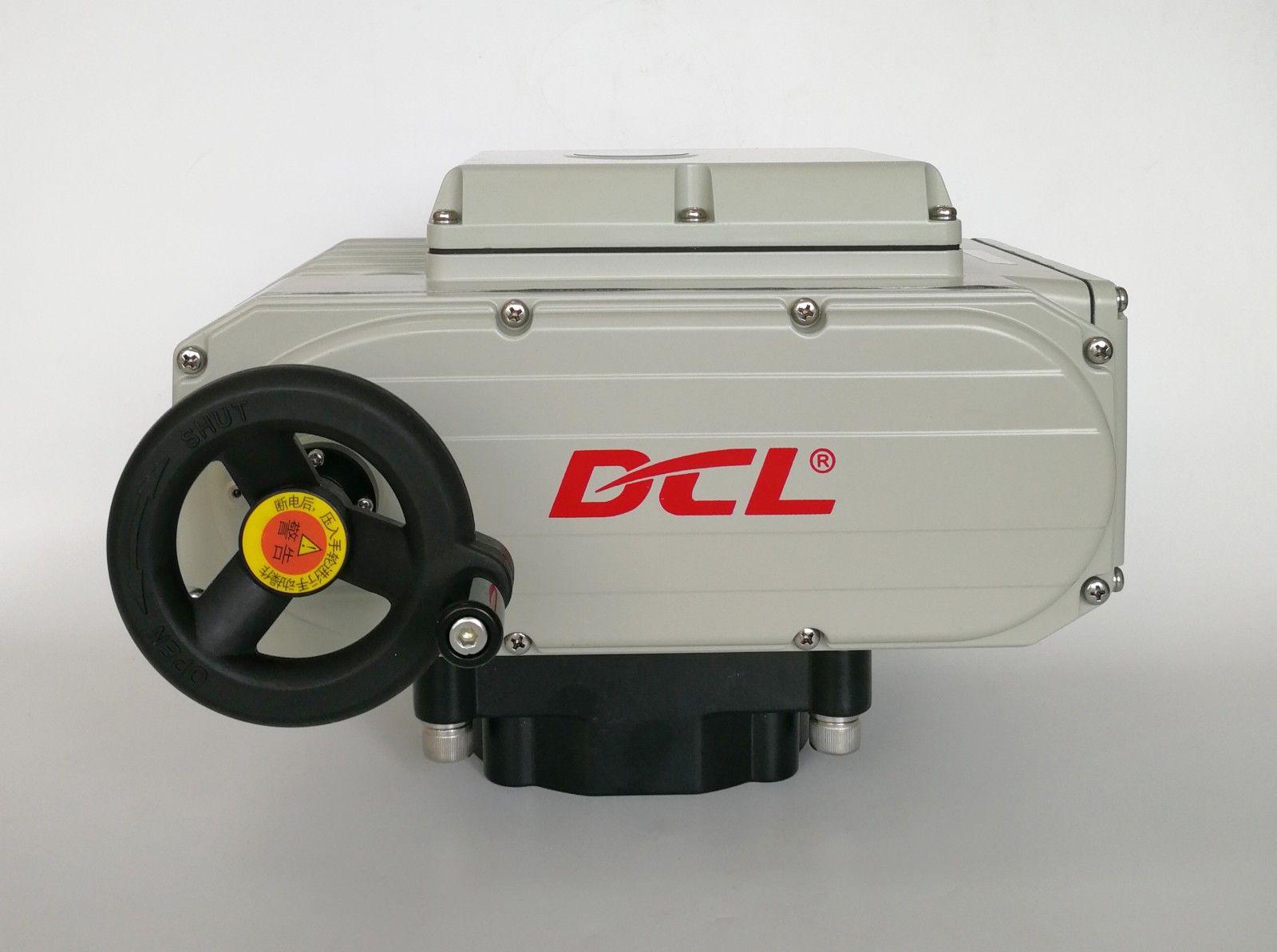

Quarter Turn Electric Actuator for Valves
This quarter-turn electric actuator automates the operation of shutoff valves. Its compact design allows for installation in confined spaces while providing precise control and quick opening times.
Technical Specifications
Overview
High-Efficiency Quarter Turn Actuator
This electric actuator is engineered for high-speed, reliable quarter-turn valve control in demanding industrial environments. It features a compact design with advanced multi-head worm gear technology to deliver high torque and faster opening times without requiring extra gear boxes. Built for longevity, the unit includes thermal overload protection and a rugged, corrosion-resistant housing suitable for outdoor and submerged conditions.
Performance
Key Performance Metrics
1,200 Nm
Max Output Torque
12 s
Operating Time
Construction & Durability
- Enclosure Rating
- IP67 (Dust tight and underwater sealed)
- Housing Construction
- Aluminum alloy with C3 corrosion resistance
- Gear Train
- All-metal gear trainBronze alloy worm gear
Operational Features
Manual Override Options
- Allen wrench
- Handwheel
- Visual Indicator Style
- Flat viewDome view
Safety & Control
Motor Safety Features
Thermal Overload Protection
