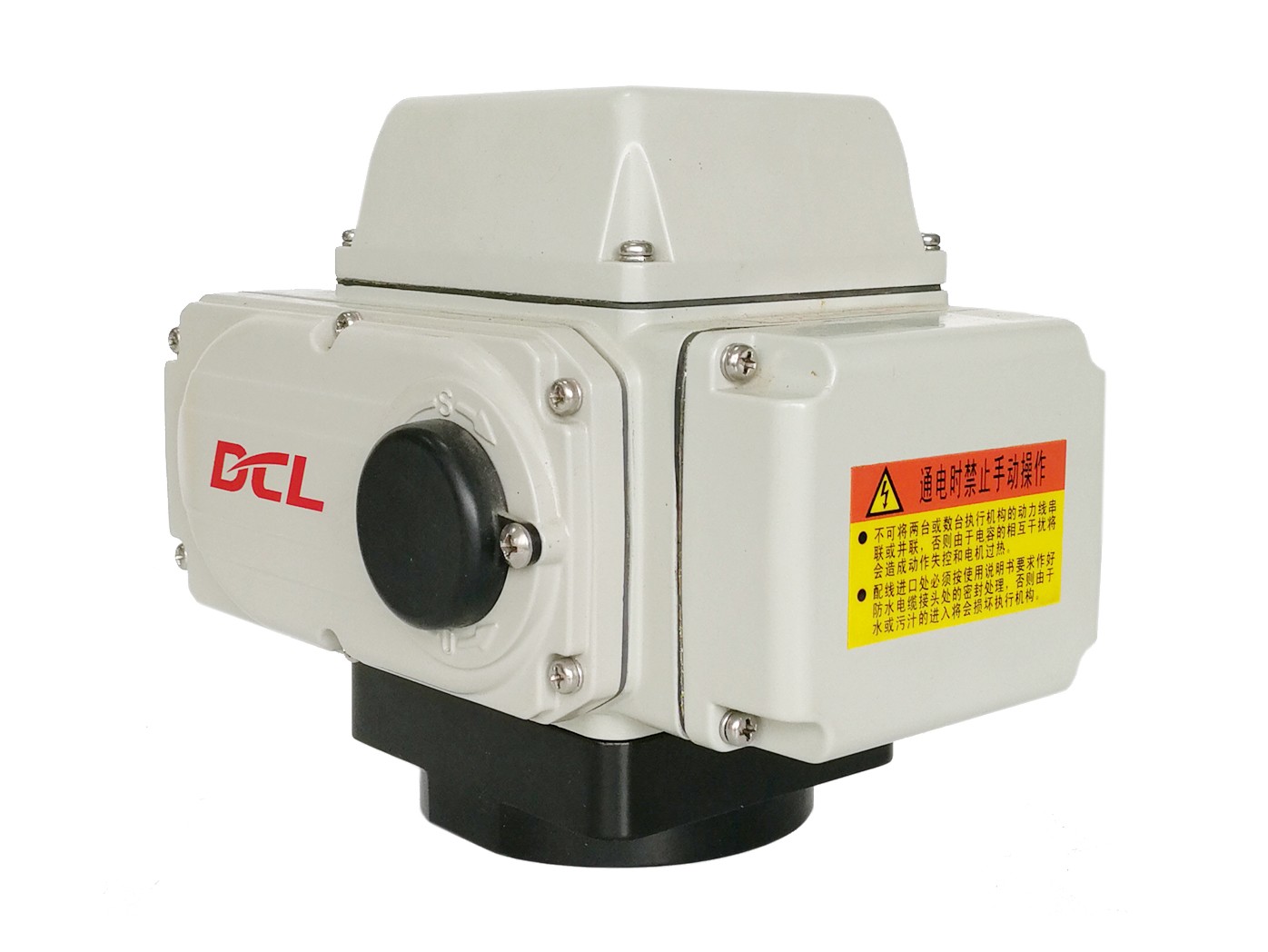

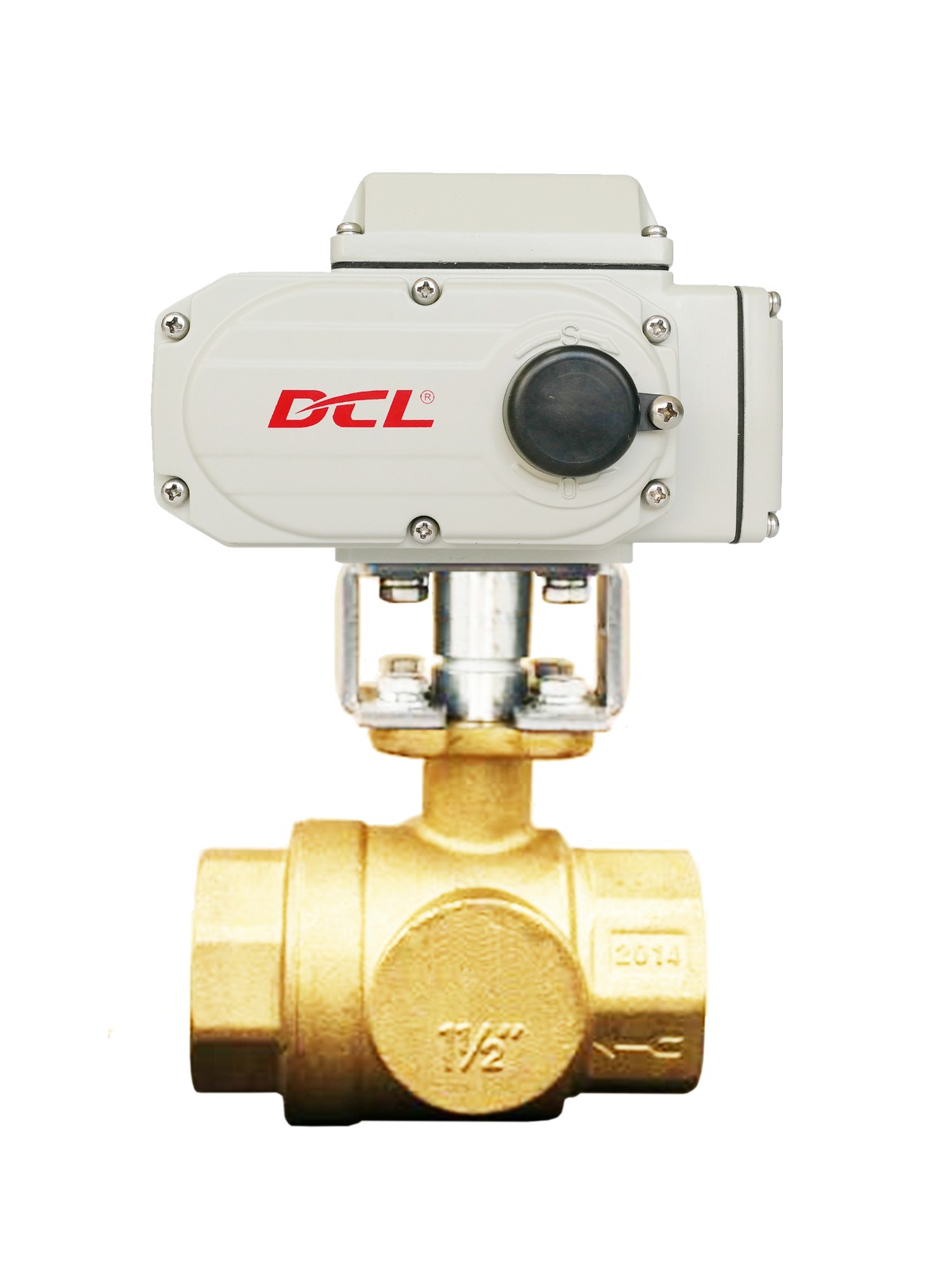

Quarter Turn Electric Actuator
This quarter-turn electric actuator is designed for precise control of valves. It is CSA certified and complies with UL standards, ensuring safety and reliability.
Technical Specifications
Overview
Precision Control for Industrial Applications
This quarter-turn electric actuator is engineered for reliable, automated valve control in demanding industrial environments, including HVAC&R systems. It features a robust construction with self-locking capabilities and versatile mounting options, ensuring operational stability and safety. Certified to stringent international standards, this unit provides precise feedback and efficient performance for various automation tasks.
Performance Metrics
Torque Range
18 Nm
Minimum Torque
2,500 Nm
Maximum Torque
Duty Cycle
| Model Type | Duty Cycle |
|---|---|
| 18Nm / 160in.lbs | 60% |
| All other models | 70% |
Certifications & Compliance
Quality Assurance
Factory AuditThird-Party Tested
- Certifications
- CSAUL 429CSA C22.2CERoHS 3.0
Technical Specifications
Manual Override Method
- Wrench
- Handwheel
Feedback & Control
- Limit switches
- Potentiometer (optional)
- Position transmitter (optional)
- 4-20mA output signal
- Sealing Grade
- NEMA 4/4X, IP67 (IP68 optional)
- Mounting Standard
- ISO 5211 Multi-flange
- Power Supply
- 220V AC
