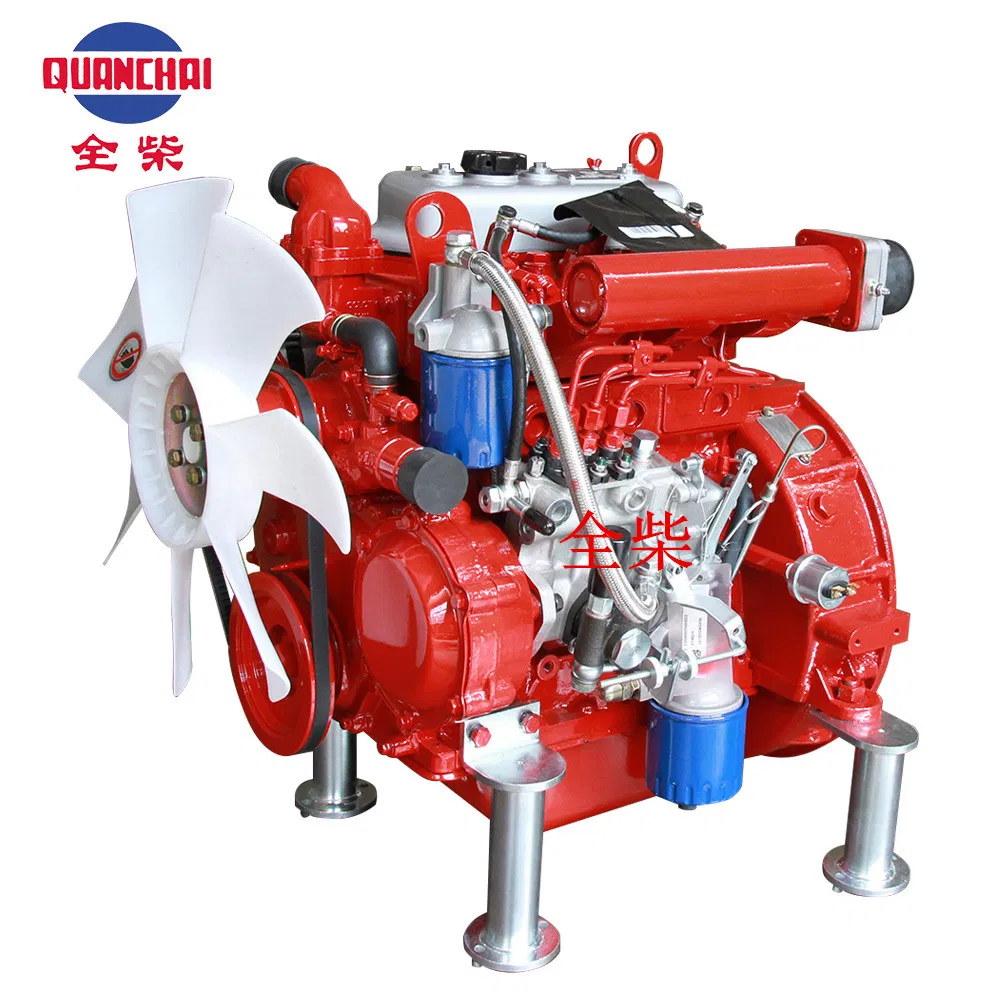

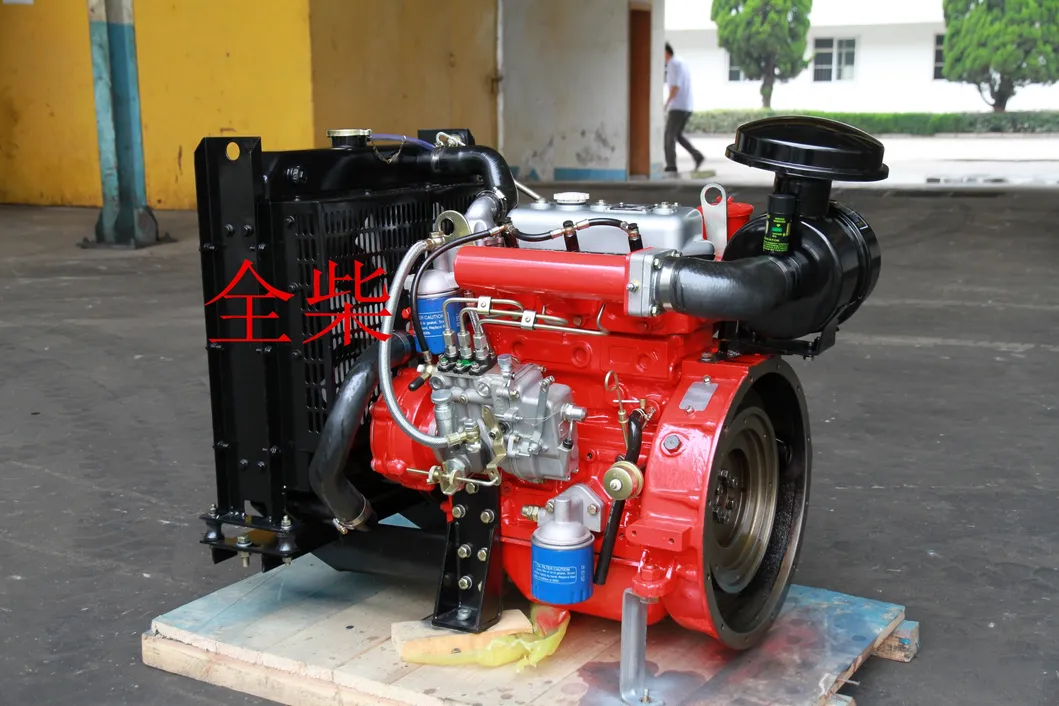

QC380D Diesel Engine for Generator Sets
The QC380D diesel engine is designed for generator set applications. It features a vertical, in-line, water-cooled, four-stroke design.
Technical Specifications
Overview
Reliable Power for Generator Sets
The QC380D is a vertical, in-line, water-cooled four-stroke diesel engine specifically engineered for generator set applications. Featuring a naturally aspirated intake and direct injection chamber, it provides a dependable and efficient power source for small-scale machinery. Its robust construction and wet cylinder liner design ensure durability and ease of maintenance in demanding industrial environments.

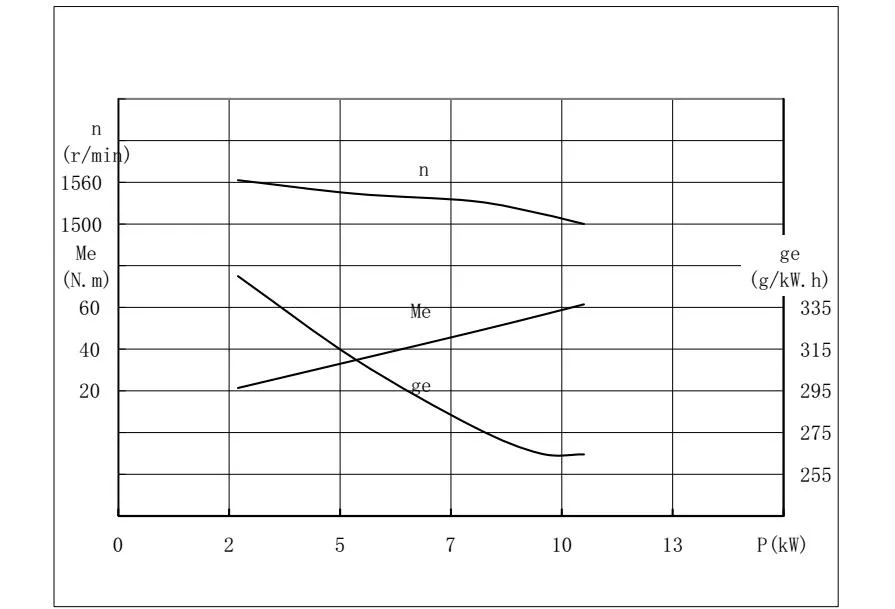

Performance Metrics
Rated Performance
10 kW
Rated Output (50Hz)
12 kW
Rated Output (60Hz)
1,500 r/min
Rated Speed (50Hz)
1,800 r/min
Rated Speed (60Hz)
Engine Configuration
Engine Type
- Vertical
- In-line
- Water-cooled
- Four-stroke
Cylinder Specifications
| Parameter | Value |
|---|---|
| Cylinder Number | 3 |
| Bore & Stroke | 80mm x 90mm |
| Displacement | 1.357 L |
| Cylinder Liner Type | Wet |
Technical Features
- System Design
- Naturally AspiratedDirect InjectionWater-Cooled
- Fuel Consumption Rate
- 255 g/kw.h
Mechanical Interface
Flywheel & Housing
| Component | Specification |
|---|---|
| Flywheel Ring Gear Teeth | 115 |
| Flywheel Cover Type | SAE 4# |
| Flywheel Type | SAE 7.5# |
Cooling System
- Fan Diameter
- 410 mm
Maintenance

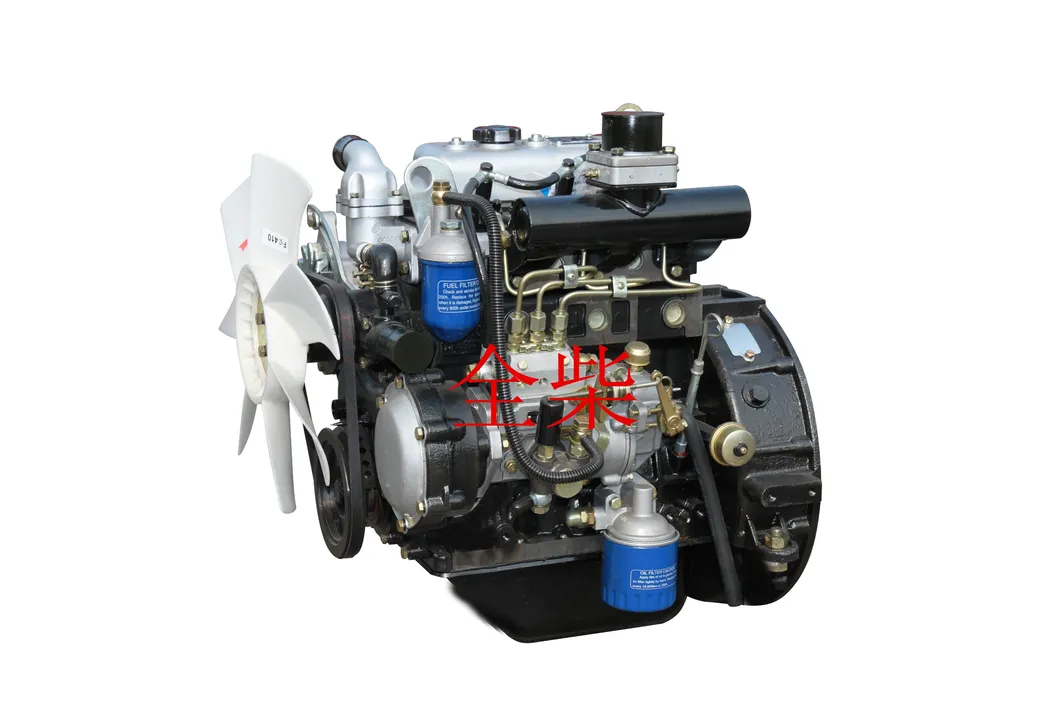

Filter Replacement Intervals
- Fuel Filter: Every 250 Hours
- Secondary Filter: Every 500 Hours
