PVC Pipe Extrusion Line

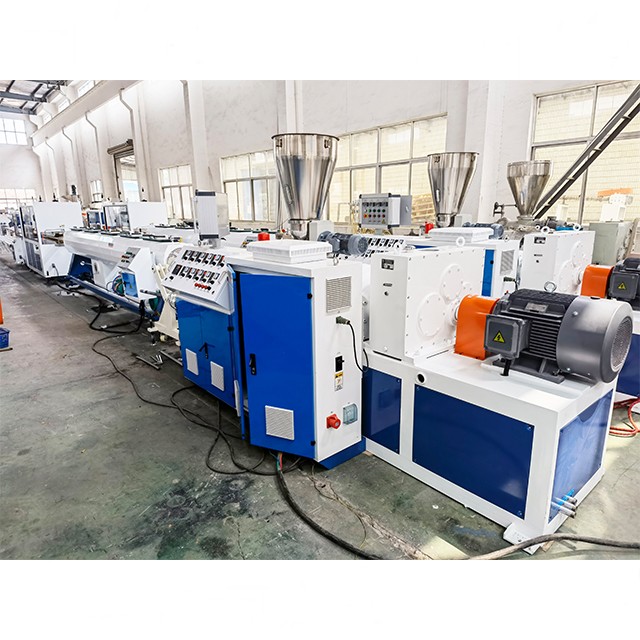

This PVC pipe extrusion line manufactures plastic PVC pipes with different diameters and wall thicknesses. It consists of a twin screw extruder, vacuum calibration tank, haul off, motors, cutter, and stacker.
Technical Specifications
Overview
Professional PVC Pipe Extrusion Line

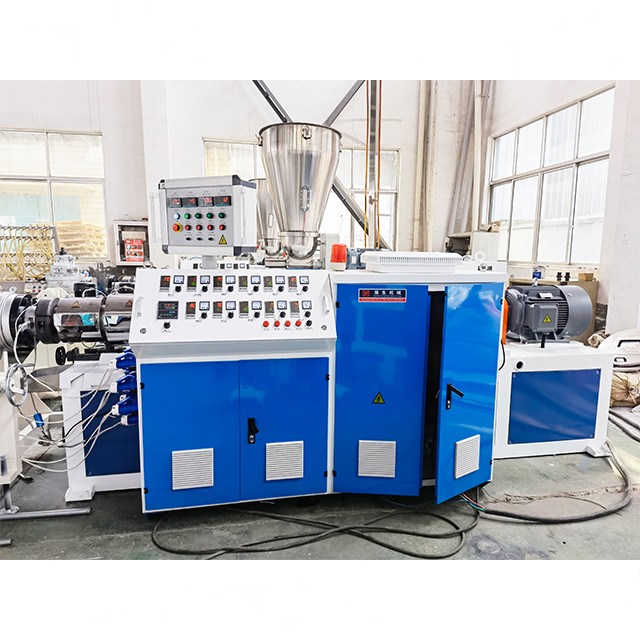

This industrial-grade extrusion system is designed to convert raw PVC powder into high-quality rigid or soft pipes with high automation. The line features a conical twin-screw extruder and integrated PLC control systems with true-color panels for precise operational management. Engineered for versatility, this machine supports various pipe types including water supply, drainage, and conduit systems.
Technical Features
Standard Configuration
- Conical twin-screw extruder
- Vacuum calibration tank
- Haul-off unit
- Stacker or belling machine
- PLC control system with true-color display
Extruder Options
| Feature | Configuration Options |
|---|---|
| Extruder Type | Conical or Parallel Twin Screw |
| Cutting Mechanism | Saw Cutter or Planetary Cutter |
| Strand Configuration | Double-strand or Four-strand |
- Drive & Control Systems
- AC InvertersPLC AutomationInternational Electrical Components
Applications
Target Use Cases
- Agricultural water supply
- Building drainage
- Cable laying
- Electrical conduit
- Compatible Pipe Types
- UPVCM-PVCC-PVCInner Spiral WallInner Hollow WallFormed Core
