PVC Pipe Extrusion Line 16-63mm
This PVC pipe extrusion line includes a conical twin-screw extruder, vacuum forming table, haul-off, cutter, and stacker. It processes PVC/UPVC material in the range of Φ16-63mm with high production capacity and automation.
Technical Specifications
Overview
High-Efficiency PVC Pipe Extrusion Line

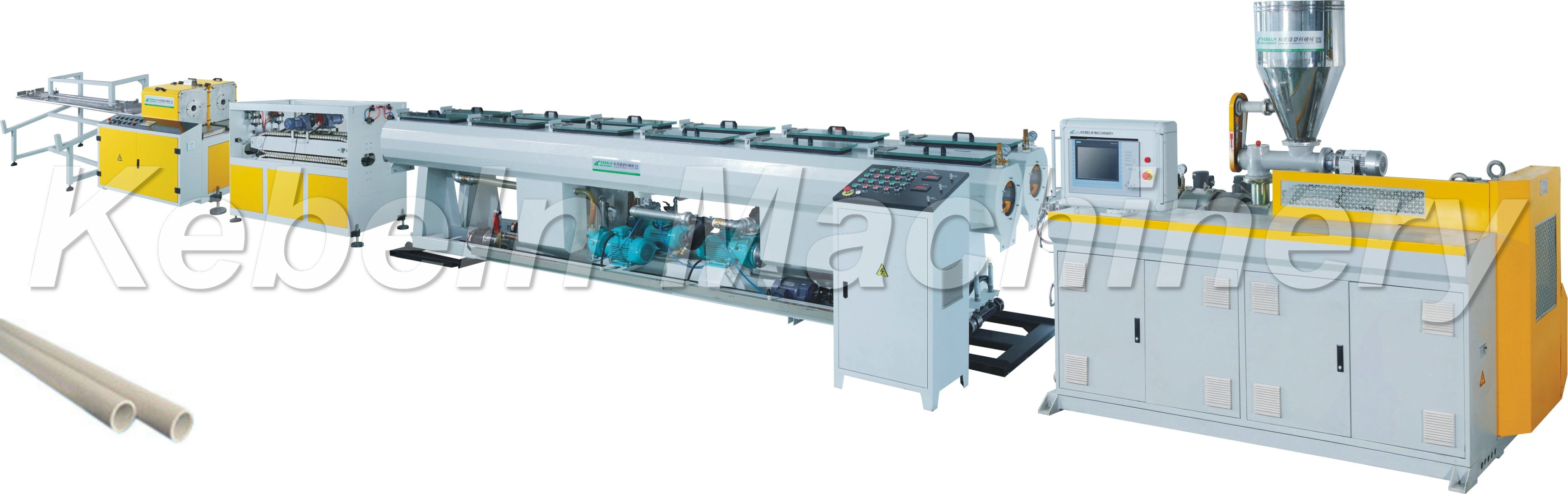

This double-pipe extrusion line is designed for the continuous production of high-quality PVC and UPVC pipes. The system integrates a conical twin-screw extruder, vacuum forming table, double haul-off units, and a precise cutting and stacking mechanism. Engineered for high output and ease of operation, it features advanced automation, including automatic fault alarms and precise temperature control, ensuring consistent pipe quality and long service life.
Technical Specifications
Performance Metrics by Model
| Model | Pipe Range (mm) | Max Capacity (kg/h) | Motor Power (kW) | Total Power (kW) |
|---|---|---|---|---|
| KBLD-40PVC | 16-40 | 180 | 22 | 75 |
| KBLD-63PVC | 16-63 | 300 | 37 | 95 |
| KBLD-110PVC | 50-110 | 600 | 75 | 145 |
Production Line Length
19 m
Model 40
20 m
Model 63
24 m
Model 110
System Features
Integrated Components
- Huateng Inverter
- RKC/Omron Temperature Controller
- Core Features
- Conical Twin-Screw ExtruderAutomatic Fault AlarmHigh Automation DegreeDouble Output MouldVacuum FormingPLC Control System
Business Terms
Commercial Terms
MOQ: 1 SetCustomization AvailablePayment: T/TFOB: Shunde
