PVC Insulated Flexible Twisted Electrical Wire
These flexible twisted electrical wires feature PVC insulation. They are suitable for internal wiring of appliances, lighting, and control equipment in low voltage applications.
Technical Specifications
Overview

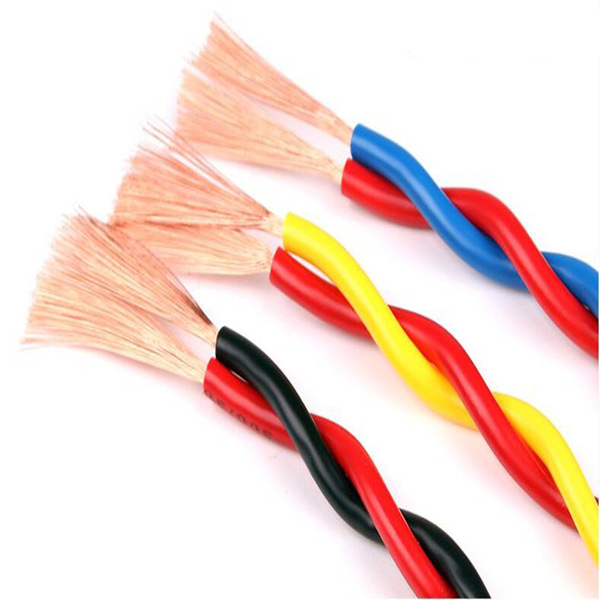

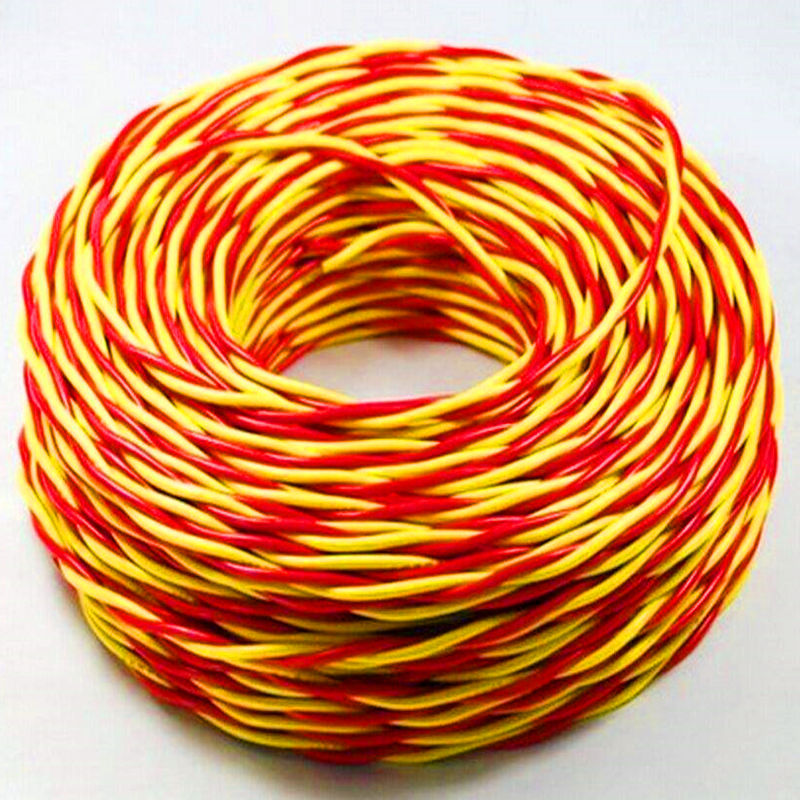

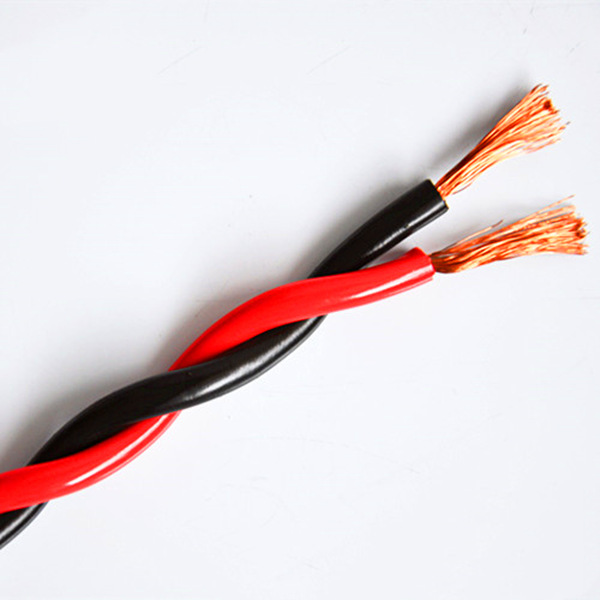

H03V-S Flexible Twisted PVC Insulated Wire
The H03V-S Flexible Twisted PVC Insulated RVS Electrical Wire is designed for reliability and ease of installation in various low-voltage applications. Featuring a stranded Class 5 copper conductor and high-quality soft PVC insulation, this cable offers excellent flexibility, making it ideal for routing in tight spaces. It is suitable for internal wiring of power devices, lighting systems, and electronic equipment, providing consistent conductivity and durability.
Technical Specifications
Voltage Rate
300 V
Voltage
- Conductor Material
- Plain Annealed Copper Wires, Strand Class 5 Flexible
- Insulation Material
- Soft PVC
- Core Number
- 2
- Production Size
- 0.50 - 2.5 mm²
- Production Standards
- IEC 60227JB/T 8734-2016BS 6500
Operational Details
Available Colors
Red/BlackRed/BlueRed/YellowYellow/Green
- Working Temperature
- -15°C to +70°C (Customizable to 90°C or 105°C)
- Min. Bending Radius
- 5 x Outer Diameter
Logistics
Packaging Options
- 100 meters per roll
- Plastic reel
- Wooden pallet
- Wooden drum
- Typical Delivery Time
- 5-7 working days
