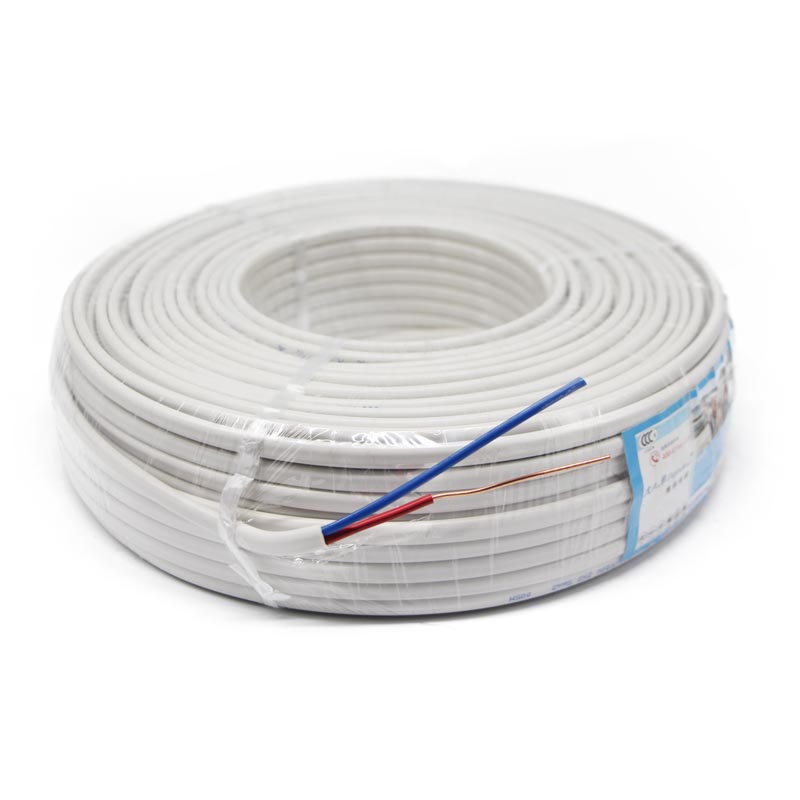

PVC Insulated Electrical Wire Cable
This electrical wire cable features PVC insulation and a PVC jacket. It is suitable for indoor wiring in residential and commercial buildings.
Technical Specifications
Product Overview
High-Performance PVC Insulated Cable
This PVC insulated electrical wire is designed for fixed wiring in power units with an AC rated voltage of 300/500V. Featuring high-purity oxygen-free copper conductors, it offers excellent durability with anti-aging, waterproof, and chemical corrosion-resistant properties. It is an ideal solution for reliable residential and commercial electrical installations.
Technical Specifications
- Rated Voltage
- 300/500V
- Max Working Temperature
- 70 °C
- Min Laying Temperature
- 0 °C
- Reference Standard
- JB/T 8734.2-2012
Material & Construction
Material Properties
Anti-agingWear-resistantWaterproofOil proofCorrosion resistantNon-toxic
- Conductor Material
- Oxygen-free copperSolid coreStranded copperTinned copper
- Insulation Material
- PVC/C
- Sheath Material
- PVC/ST4
Bending Radius
Bending Radius Requirements
- Outer diameter < 25mm: Not less than 4D
- Outer diameter ≥ 25mm: Not less than 6D
Available Configurations
Standard Specifications Table
| Size (mm²) | Construction (mm) | Max Outer Diameter (mm) |
|---|---|---|
| 2*1.0 | 2/1.13 | 4.8*7.0 |
| 2*1.5 | 2/1.36 | 5.4*8.4 |
| 2*2.5 | 2/1.74 | 6.2*9.8 |
| 2*4.0 | 2/2.22 | 6.8*11.0 |
Logistics
- Standard Packaging
- 100m200m300m
