PVC Insulated Electrical Wire
This single-core PVC insulated wire is suitable for internal wiring of electrical and electronic equipment. It has a voltage rating of 450/750V.
Technical Specifications
Overview
High-Performance PVC Insulated Wire
This 60227 IEC01 (BV) PVC insulated electrical wire is engineered for reliability in both machinery internal wiring and home decoration projects. Constructed with 99.95% oxygen-free copper, it ensures excellent conductivity and durability. The environmental protection PVC insulation offers high insulation resistance and is available in a variety of colors to facilitate easy circuit identification.
Electrical Ratings
Rated Voltage
450 V
Min Rated Voltage
750 V
Max Rated Voltage
- Rated Temperature
- 70 °C
Material & Construction
- Conductor Material
- 99.95% Oxygen Free Copper
- Insulation Material
- Environmental Protection PVC
- Available Colors
- RedYellowGreenBlueBlackYellow/Green
Technical Specifications
Standards
GB5023-2008IEC60227
Conductor Specifications
| Model | Strands/Diam (mm) | Overall Diam (mm) | Resistance at 20°C (Ω/km) |
|---|---|---|---|
| BV1.5 | 1/1.38 | 2.8-3.3 | 12.1 |
| BV2.5 | 1/1.78 | 3.4-3.9 | 7.41 |
| BV4.0 | 1/2.24 | 3.9-4.4 | 4.61 |
| BV6.0 | 1/2.76 | 4.4-4.9 | 3.08 |
| BV10.0 | 7/1.35 | 5.8-6.8 | 1.83 |
| BV16.0 | 7/1.70 | 7.0-8.0 | 1.15 |
| BV25.0 | 7/2.14 | 8.8-9.8 | 0.727 |
| BV35.0 | 7/2.52 | 10.0-11.0 | 0.524 |

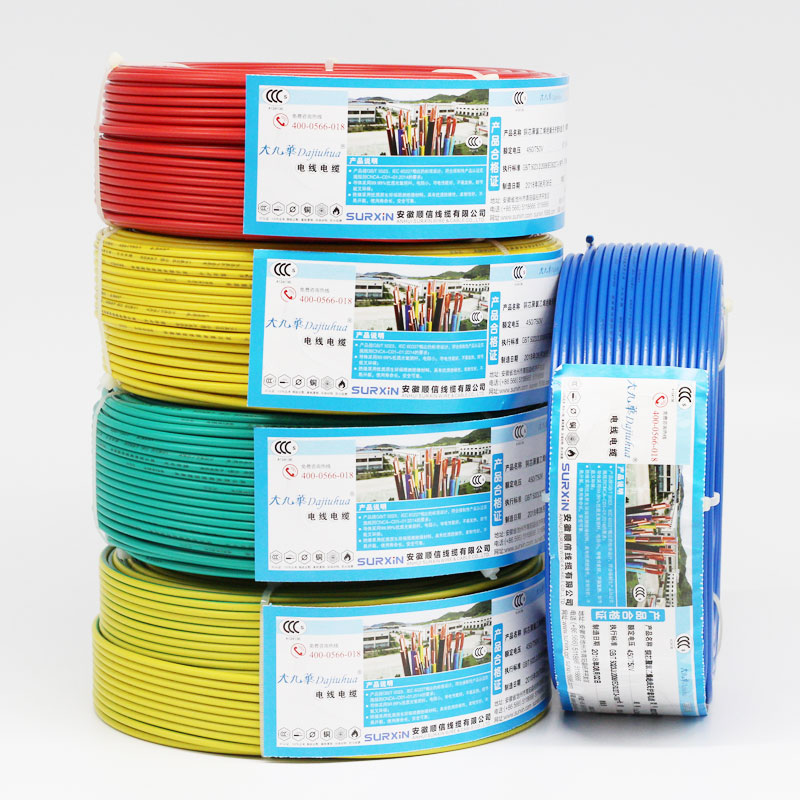

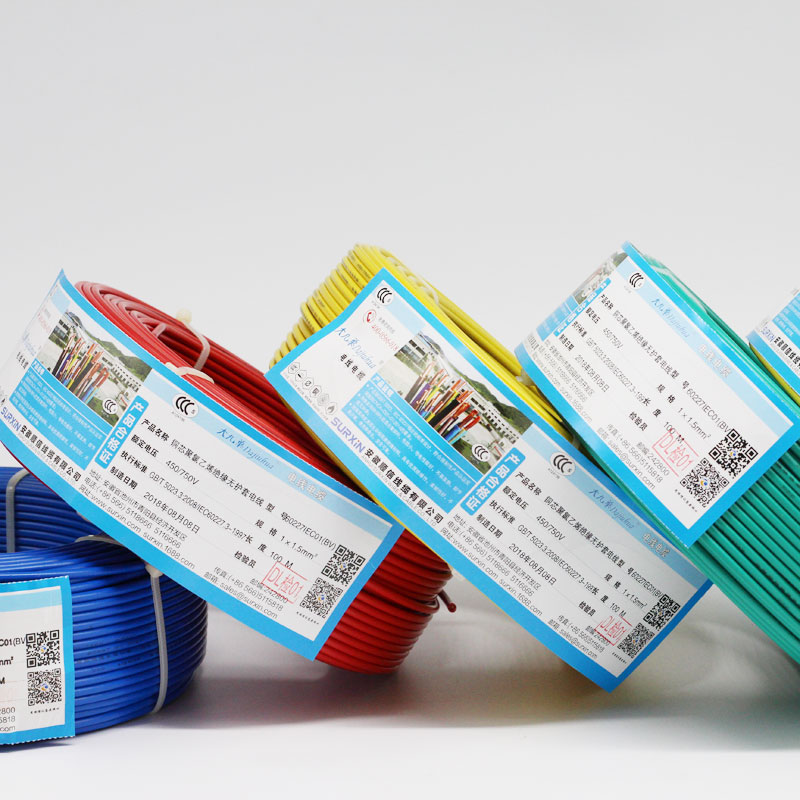

Packaging
Packaging Options
- 100M Roll
- 200M Roll
- Hollow roll
- Wrapped with film
