PVC Dual Pipe Extrusion Line (20-63mm)

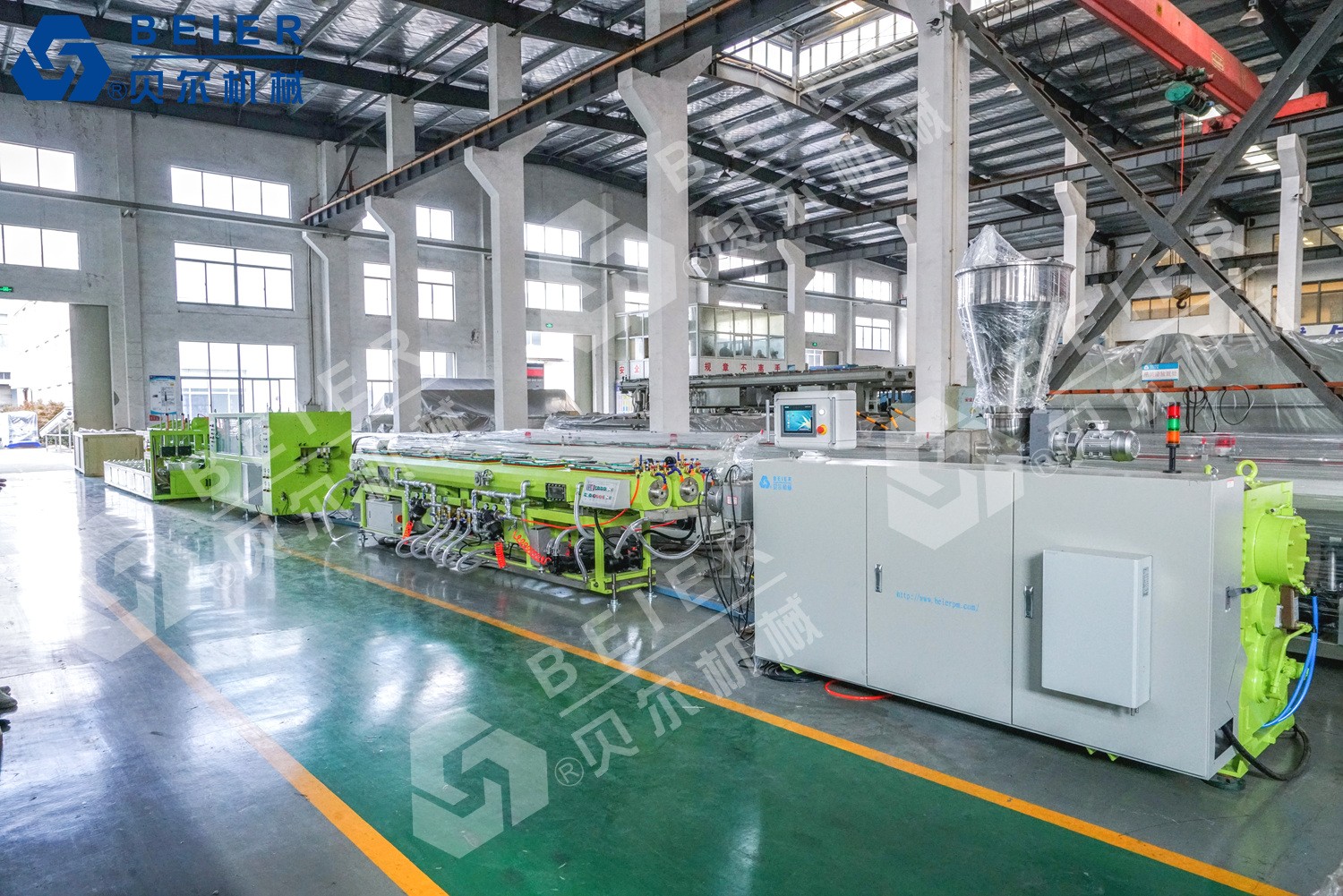

This PVC dual pipe extrusion line is used for manufacturing pipes for plumbing and cable laying. It consists of a twin-screw extruder, mould, vacuum calibration tank, haul-off, cutter, and staker.
Technical Specifications
Overview
High-Efficiency Dual Pipe Production

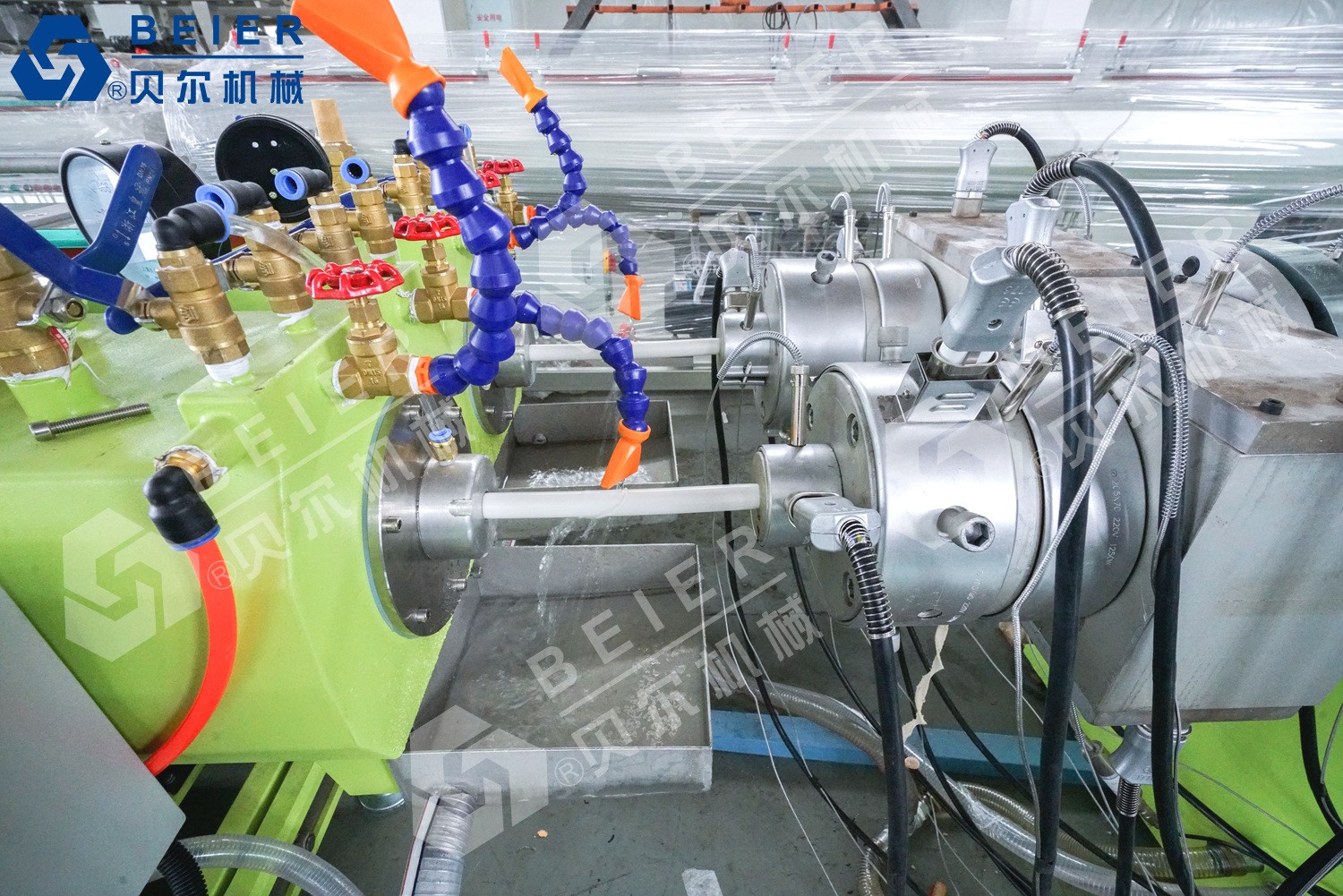

This PVC dual pipe extrusion line is engineered for the high-volume manufacturing of PVC pipes with diameters ranging from 20mm to 63mm. By utilizing a dual-pipe configuration, the system maximizes output efficiency while maintaining precise dimensional accuracy through advanced calibration and cooling units. It is an ideal solution for producing water supply, drainage, and electrical conduit pipes with consistent quality and reduced material waste.
Technical Specifications
Pipe Diameter Range
20 mm
Min Diameter
63 mm
Max Diameter
- Production Mode
- Dual pipe simultaneous extrusion
Key Components
System Components
- Twin-screw extruder
- Extrusion die
- Vacuum calibration tank
- Spray cooling tank
- Haul-off unit
- Cutting unit
- Material hopper
- Control & Safety
- Automated Control SystemPrecise Temperature ControlIntegrated Safety FeaturesUser-Friendly Interface
Applications
Typical Applications
Water SupplyDrainage SystemsElectrical Conduit
