PVC Double Pipe Extrusion Line (Φ16-63mm)
This PVC double pipe extrusion line is designed for efficient production. It creates PVC pipes ranging from 16mm to 63mm in diameter.
Technical Specifications
Product Overview
High-Efficiency Double Pipe Extrusion Line

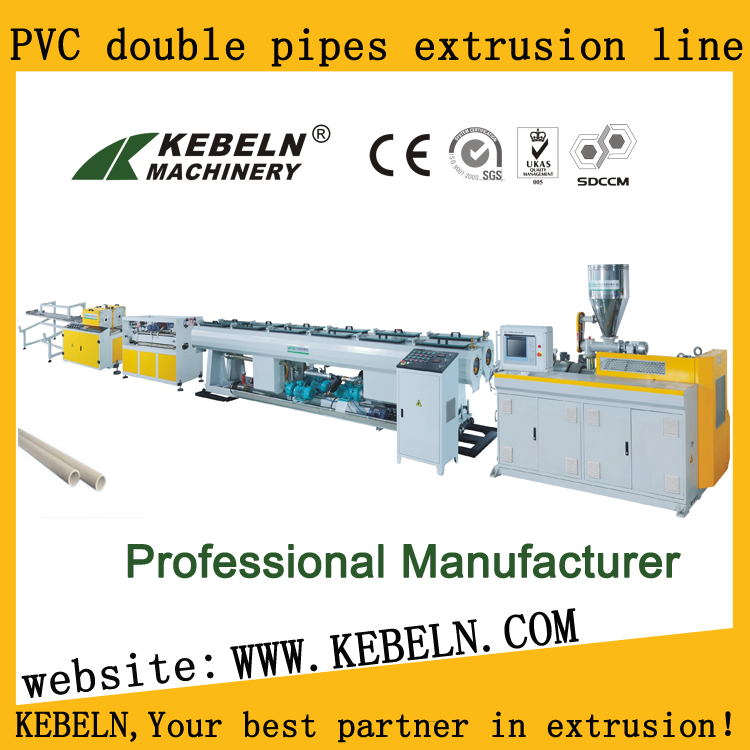

This PVC double pipe extrusion line is a complete, high-capacity system designed to manufacture pipes with diameters ranging from 16mm to 63mm. Engineered for high-volume production environments, the system utilizes a conical twin-screw extruder to ensure consistent material mixing and output. With automated features and high-precision temperature control, this line offers reliable performance, simplified maintenance, and a long service life.
Technical Specifications
- Extruder Model
- 65/132
- Pipe Diameter Range
- 16 - 63 mm
- Extrusion Output
- 250 kg/h
- Maximum Line Speed
- 10 m/min
- Total Line Length
- 19 m
System Components
Included Equipment
- KBL65/132 Conical twin screw extruder
- Double output mould
- Vacuum forming table
- Double haul-off unit
- Double cutter
- Stacker
- Core Electronics
- Huateng InverterRKC Temperature ControllerOmron Temperature Controller
Operational Features
Key Features
High degree of automationAutomatic fault alarmSimple maintenanceDouble-strand extrusion
Business Information
- Product Certification
- SGSCEISO 9001
- Minimum Order Quantity
- 1 set
- Customization Available
- Yes
