Technical Specifications
Product Overview
High-Efficiency PVC Extrusion System

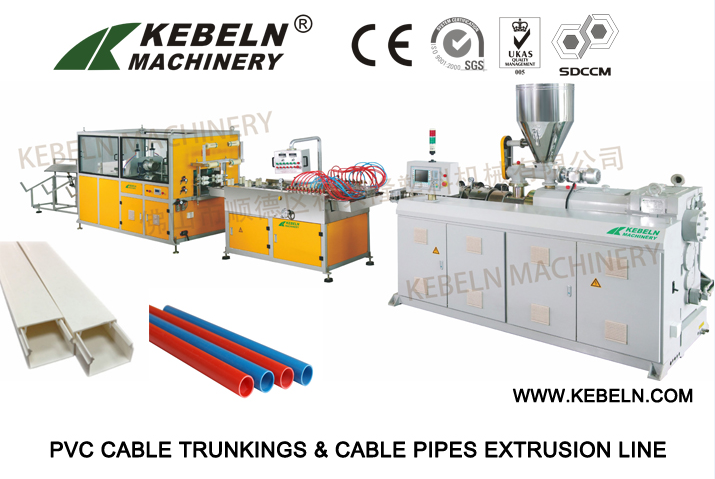

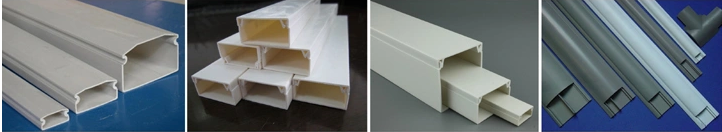

This PVC cable trunking and pipe extrusion line is a stable, high-efficiency solution designed for the continuous manufacturing of U-channel profiles, electrical conduit pipes, and cable ducts. The system features an integrated, automated process from raw material mixing to final product stacking. By changing the extrusion mould, the line is versatile enough to produce additional items like PVC door frames, window profiles, and floor tiles.
Manufacturing Process
Extrusion Flow
- PVC powder & additives mixing
- Screw feeding
- Extrusion
- Moulding
- Vacuum calibration
- Haul-off
- Cutting
- Stacking
System Configuration
Equipment Breakdown
| System | Component |
|---|---|
| Raw Material Mixing | Spiral Loader, Heating/Cooling Mixer |
| Extrusion | Spring Loader, Conical twin-screw extruder (KBL55/113 or KBL65/132) |
| Downstream | Vacuum calibration table, Haul-off and Cutter unit, Stacker |
| Recycling | PVC profiles Crusher, PVC Pulverizer |
Certifications
- Compliance & Standards
- CEISO 9001-2000SGSUKAS
