PVC Cable Trunking and Pipe Extrusion Line

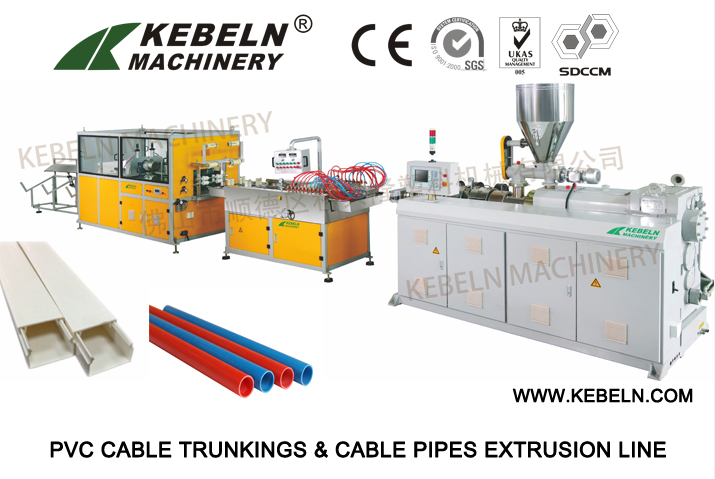

This PVC cable trunking and pipe extrusion line is engineered for efficient and stable production. It is designed to produce U channel profiles and PVC conduit pipes.
Technical Specifications
Product Overview
High-Efficiency PVC Extrusion System

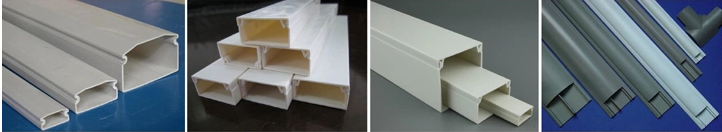

This PVC cable trunking and pipe extrusion line is a professional-grade solution designed for stable and high-efficiency production of electrical conduit pipes and U-channel cable ducts. The integrated system manages the entire process from material feeding and mixing to final product stacking. By changing the extrusion mold, this versatile line can also be configured to produce PVC door frames, window profiles, and floor tile profiles.
Technical Configuration
Production Line Components
| System Section | Component |
|---|---|
| Raw Material Mixing | Spiral Loader |
| Raw Material Mixing | High speed Heating/Cooling Mixer |
| Extrusion System | Spring Loader |
| Extrusion System | Conical twin-screw extruder (KBL55/113 or KBL65/132) |
| Extrusion System | Vacuum calibration Table |
| Finishing | Haul off and Cutter unit |
| Finishing | Stacker |
| Recycling | PVC profiles Crusher |
| Recycling | PVC Pulverizer |
Production Workflow
Process Flow
- PVC powder & additives preparation
- Mixing
- Screw feeding
- Extrusion
- Molding
- Vacuum calibration
- Haul-off
- Cutting
- Stacking
- Manufacturing Versatility
- Cable TrunkingConduit PipeU-Channel ProfilesDoor FramesWindow ProfilesFloor Tile Profiles
