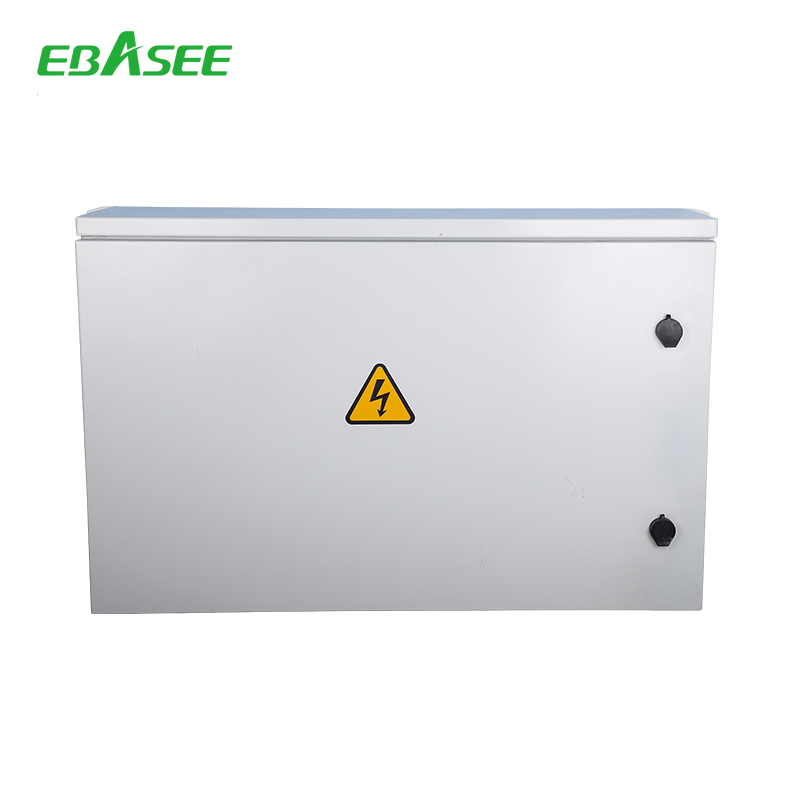

PV Solar Combiner Box
The PV Solar Combiner Box consolidates multiple solar panel inputs into a single output for connection to inverters. It provides protection against environmental factors and incorporates surge protection devices and circuit breakers.
Technical Specifications
Overview
BXPVZ Photovoltaic Combiner Series

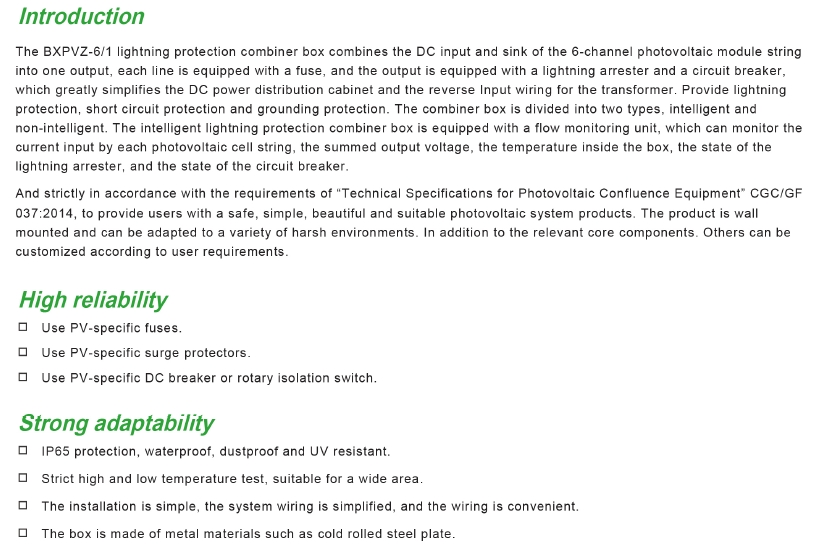

The BXPVZ lightning protection combiner box is engineered to consolidate DC inputs from up to 6 photovoltaic strings into a single high-efficiency output. This solution simplifies DC power distribution and transformer input wiring while providing comprehensive lightning, short-circuit, and grounding protection. Designed for durability in harsh environments, it features IP65-rated weather resistance and high-performance safety components.
Technical Specifications
Ingress Protection
IP65DustproofWaterproofUV Resistant
- Input Channels
- 6 channels
- Built-in Protections
- Lightning ProtectionShort Circuit ProtectionGrounding ProtectionOvercurrent Protection
- Mounting Method
- Wall-mounted
- Compliance
- CGC/GF 037:2014

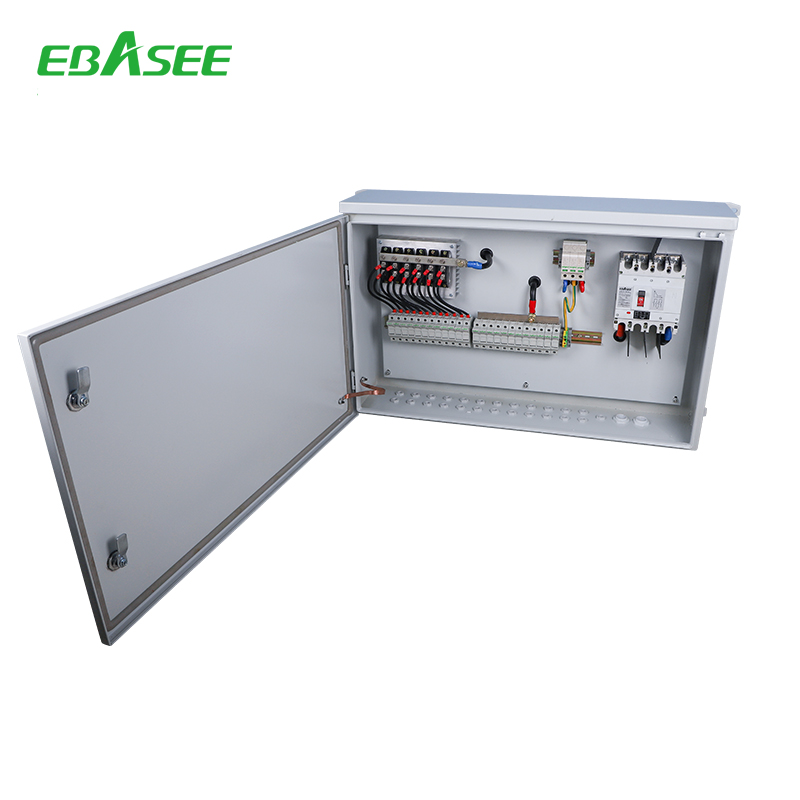

Components & Construction
Standard Components
- PV-specific Fuses
- PV-specific Surge Protectors
- PV-specific DC Breaker / Rotary Isolation Switch
- Lightning Arrester
- Enclosure Material
- Cold rolled steel
Configuration Options
System Type
- Non-intelligent (Standard)
- Intelligent (includes flow monitoring unit)
Intelligent Monitoring Data
| Metric |
|---|
| Current input per string |
| Summed output voltage |
| Internal box temperature |
| Lightning arrester status |
| Circuit breaker status |
