Push-In Wire Connector for Electrical Contactors
This push-in wire connector is designed for electrical power transmission and distribution within contactor systems. It allows rapid, tool-free wire connections, enhancing installation efficiency and reliability.
Technical Specifications
Product Overview
Efficient Quick-Connect Solution

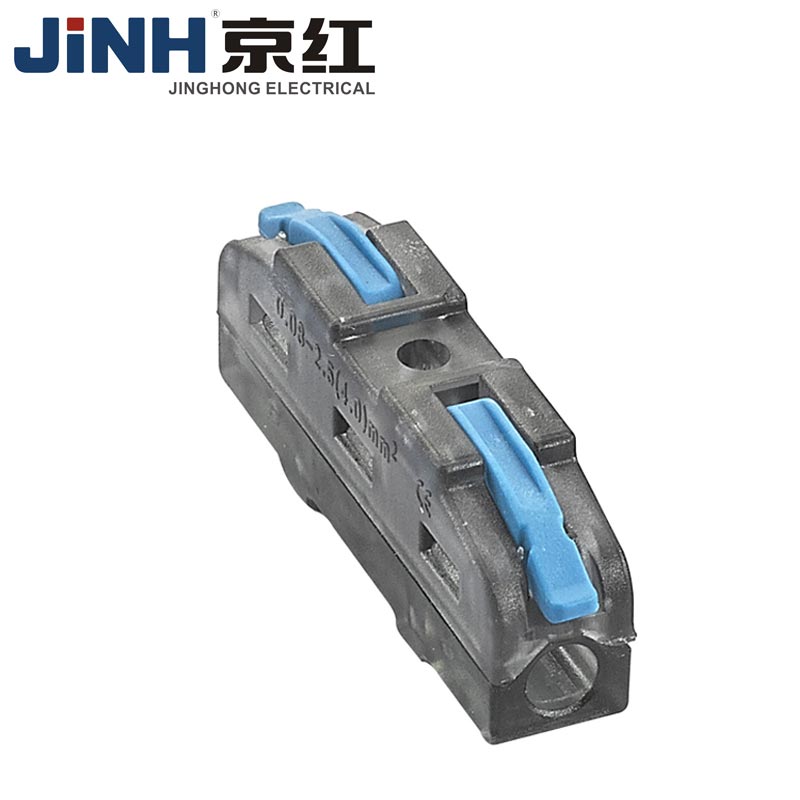

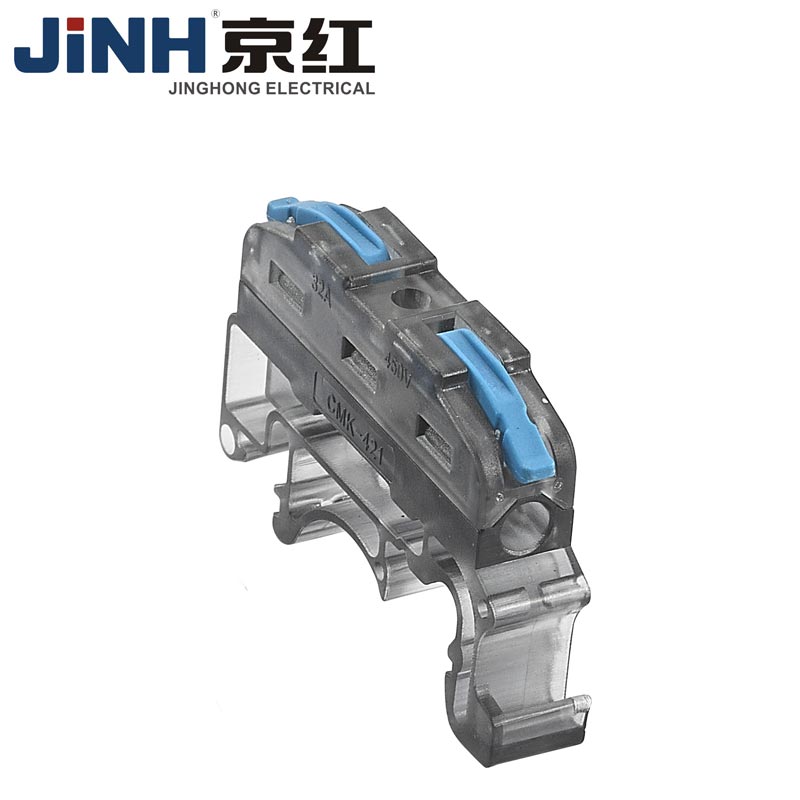

The CMK 42 series wire connector is designed to streamline electrical wiring processes in power transmission and distribution systems. Featuring a screwless, lever-operated design, these connectors allow for rapid, tool-free wire insertion and removal, significantly reducing installation time. The transparent housing ensures easy visual inspection of connections, while the robust material composition guarantees durability and reliability in demanding environments.
Electrical Ratings
Rated Voltage
450 V
Rated Voltage
Rated Current
32 A
Rated Current
Technical Specifications
- Connection Capacity
- 0.5mm² - 4mm²
- Operating Temperature Range
- -40°C to 105°C
Materials
Material Breakdown
| Component | Material |
|---|---|
| Casing/Shell | Transparent Polycarbonate |
| Actuating Levers | Polyamide PA66 |
| Conductive Parts | Thinned Copper |
| Contact Springs | AISI 301 Stainless Steel |
Features
Key Features
- Tool-free lever operation
- Screwless, push-in design
- Transparent housing for visual inspection
- Integrated center connections and markers
