PTFE Stringer Belt for Solar Cell Interconnection
This PTFE stringer belt is designed for solar cell interconnection. It features heat resistance and perforations for accurate cell alignment during photovoltaic module manufacturing.
Technical Specifications
Product Overview
Engineered for Solar Cell Interconnection

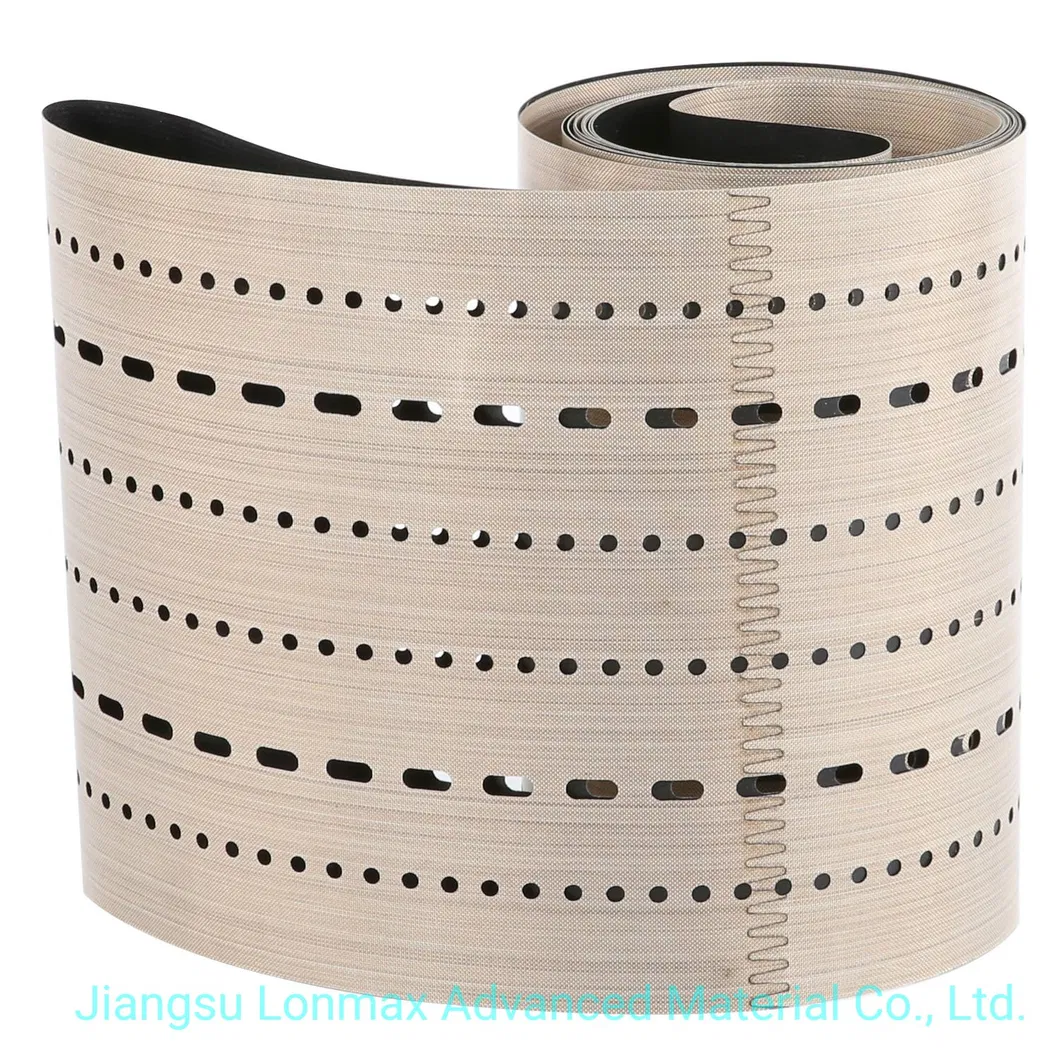

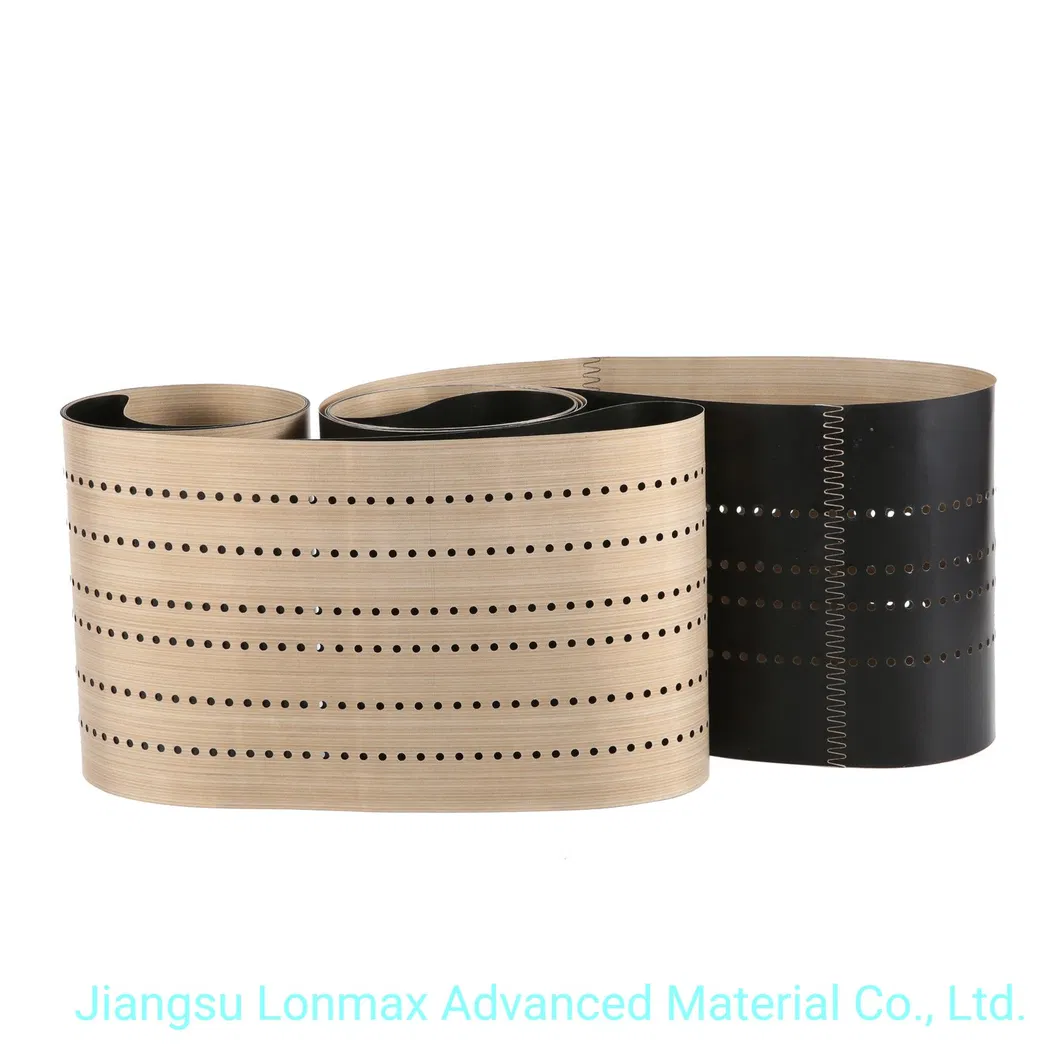

This high-performance PTFE-coated conveyor belt is designed specifically for automated solar cell stringing and tabbing processes. Using premium glass fiber or Kevlar weaving, it provides exceptional thermal stability and durability in demanding manufacturing environments. The belt features precision-engineered perforations to ensure optimal vacuum hold-down and accurate cell alignment, effectively maximizing throughput and production efficiency.
Technical Features
- Key Performance Attributes
- High Temperature ResistanceExcellent PermeabilityChemical ResistanceNon-Stick SurfaceHigh Tensile StrengthFlex Fatigue Resistance
Operational Parameters
Operating Temperature
-70 °C
Minimum Temperature
260 °C
Maximum Temperature
Technical Specifications
Detailed Material Characteristics
| Item No. | Color | Thickness (mm) | PTFE Content (%) |
|---|---|---|---|
| G008A | Brown | 7-8 | 68 |
| G008J | White | 7-8 | 68 |
| G013A | Brown | 11-13 | 58 |
| G015A | Brown | 14-15 | 65 |
| G025A | Brown | 22-25 | 58 |
