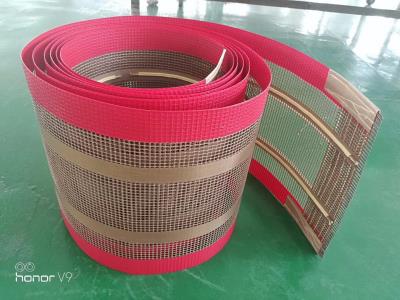

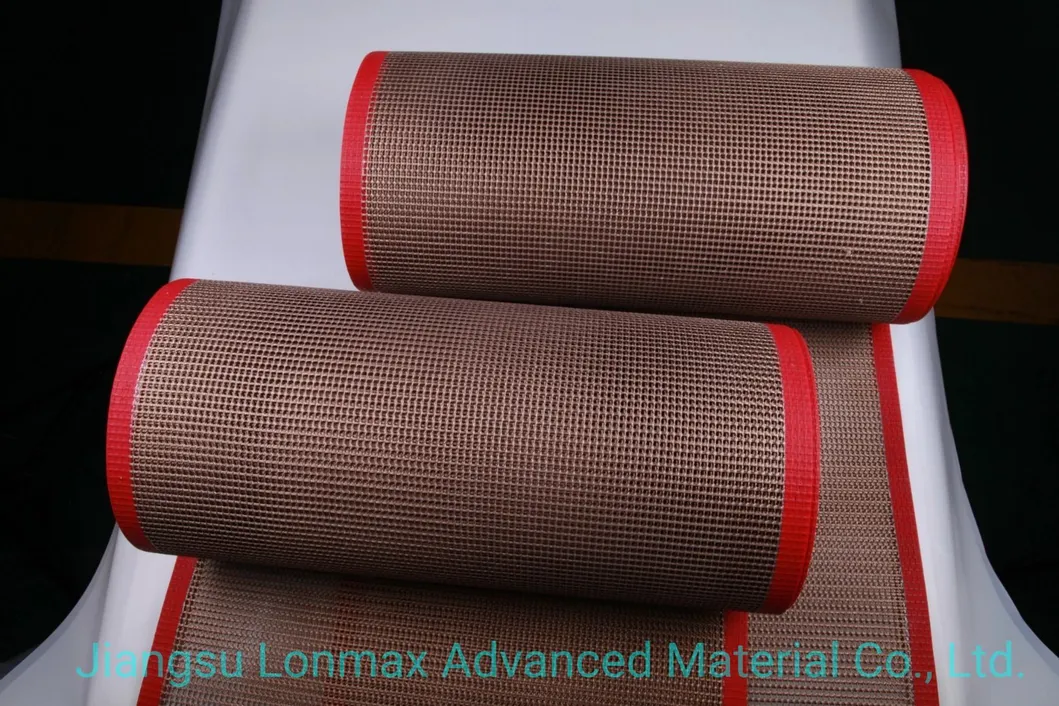

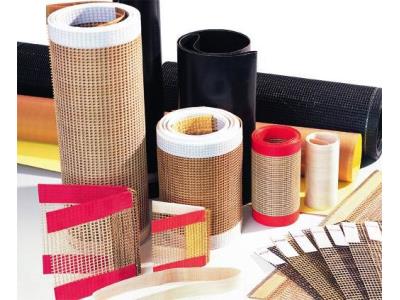

PTFE Coated Fiberglass Mesh Conveyor Belt

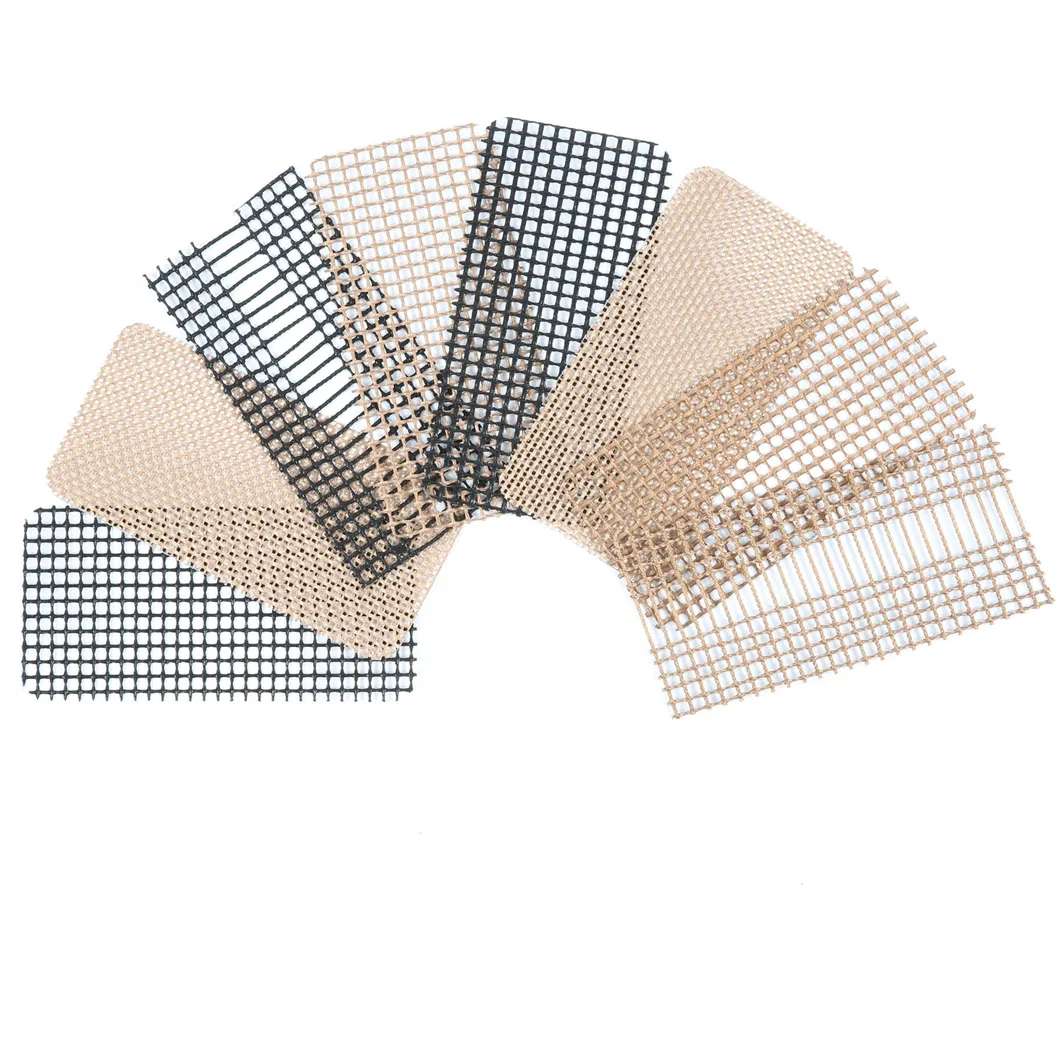

This PTFE coated fiberglass mesh belt is designed for high-temperature applications. Its open mesh construction allows for efficient drying and air circulation.
Technical Specifications
Product Overview
High-Performance Conveyor Solutions
These PTFE-coated fiberglass and Kevlar conveyor belts are engineered for demanding high-temperature industrial environments. Featuring exceptional heat resistance, chemical inertness, and non-stick release characteristics, they are ideal for drying, curing, and conveying applications. The open mesh construction ensures optimal airflow, improving efficiency across food processing, textile, and electronics manufacturing.
Material & Construction
Key Features
- High temperature resistance (-70 to 260°C)
- Excellent permeability for drying efficiency
- Chemical and corrosion resistance
- Superior non-stick release properties
- High flex fatigue resistance
- Base Materials
- FiberglassKevlarPTFE Resin Coating
Technical Specifications
Product Range Data
| Item No | Mesh Size | Thickness | Weight |
|---|---|---|---|
| W001 | 1x1mm | 0.5mm | 390g/m2 |
| W002 | 2x2mm | 0.7mm | 450g/m2 |
| W003 | 4x4mm | 1.0mm | 500g/m2 |
| W007 | 4x4mm | 1.2mm | 560g/m2 |
| W013 | 10x10mm | 1.0mm | 450g/m2 |
| W015 | 2x2.5mm | 0.9mm | 470g/m2 |
Temperature Range
-70 °C
Min Temperature
260 °C
Max Temperature
