Technical Specifications
Product Overview
Advanced Heat Pump Dehydration Technology
This industrial-grade heat pump dryer is designed for the efficient dehydration of a wide range of materials, including agricultural products, seafood, fruits, and meats. It utilizes a heat pump working principle to form controlled airflow, offering an intelligent and low-cost alternative to traditional drying methods. The system features precise temperature control and a smart touch screen interface, ensuring optimal drying conditions regardless of external weather.
Performance Metrics
Key Performance Metrics
6 kW
Rated Heating Capacity
1.5 kW
Rated Input Power
60 %
Energy Saving vs Electric
Technical Specifications
Model Details
| Parameter | Value |
|---|---|
| Outdoor Model | YINI-020-HG |
| Type | All-in-one |
| Ambient Temp Range | -30 to 43°C |
| Power Supply | 220V 1N~50Hz |
| Max Running Current | 7.2A |
| Refrigerant Type | R134a |
| IP Code | IPX4 |
Capacity & Design
Drying Capacity

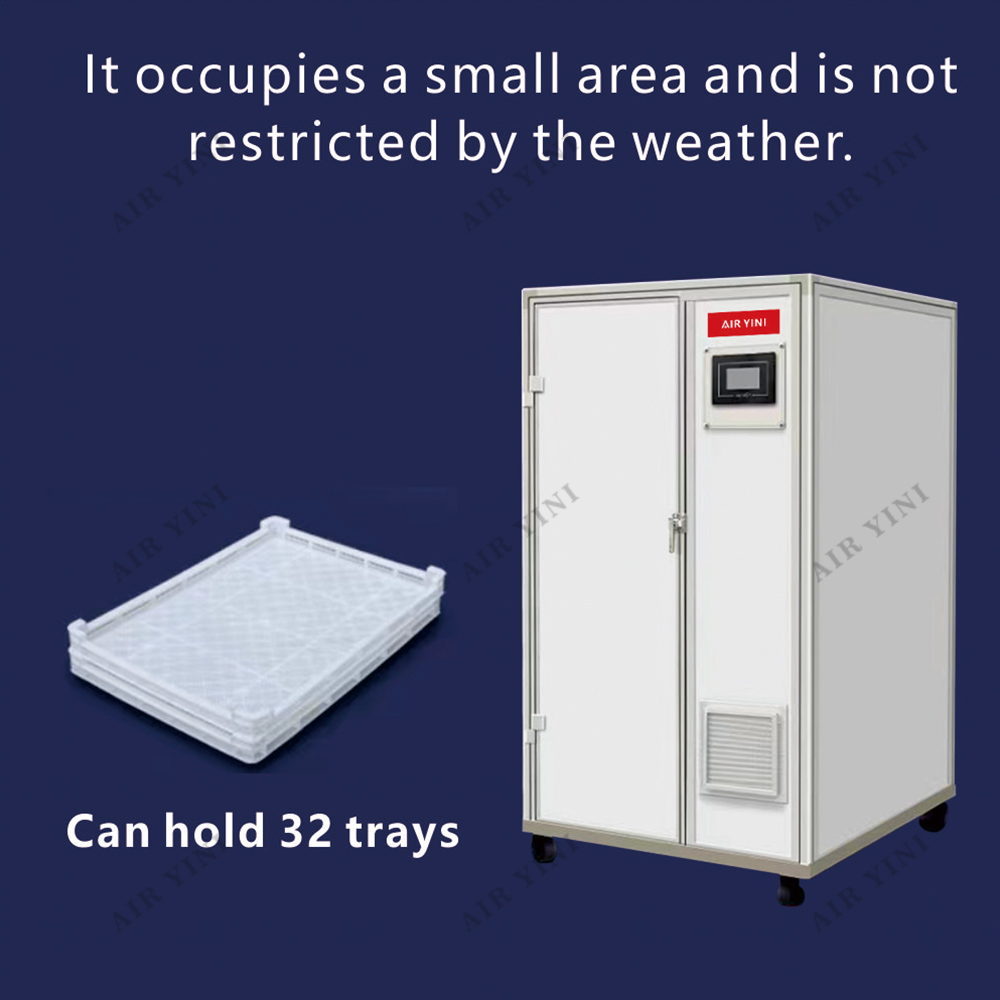

- Standard configuration: 32 trays

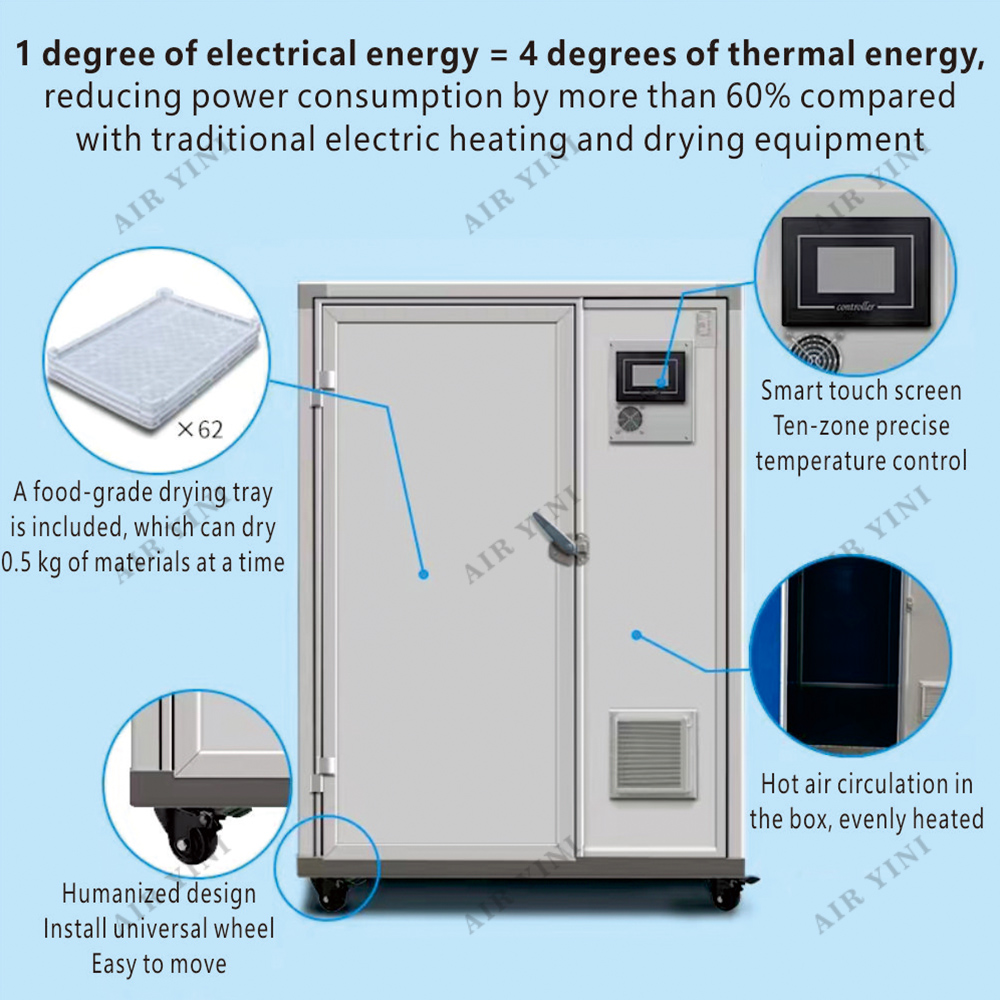

- Upgraded configuration: 62 food-grade drying trays
- Tray capacity: 0.5 kg of material per tray
- Mobile design: Equipped with universal wheels for easy movement

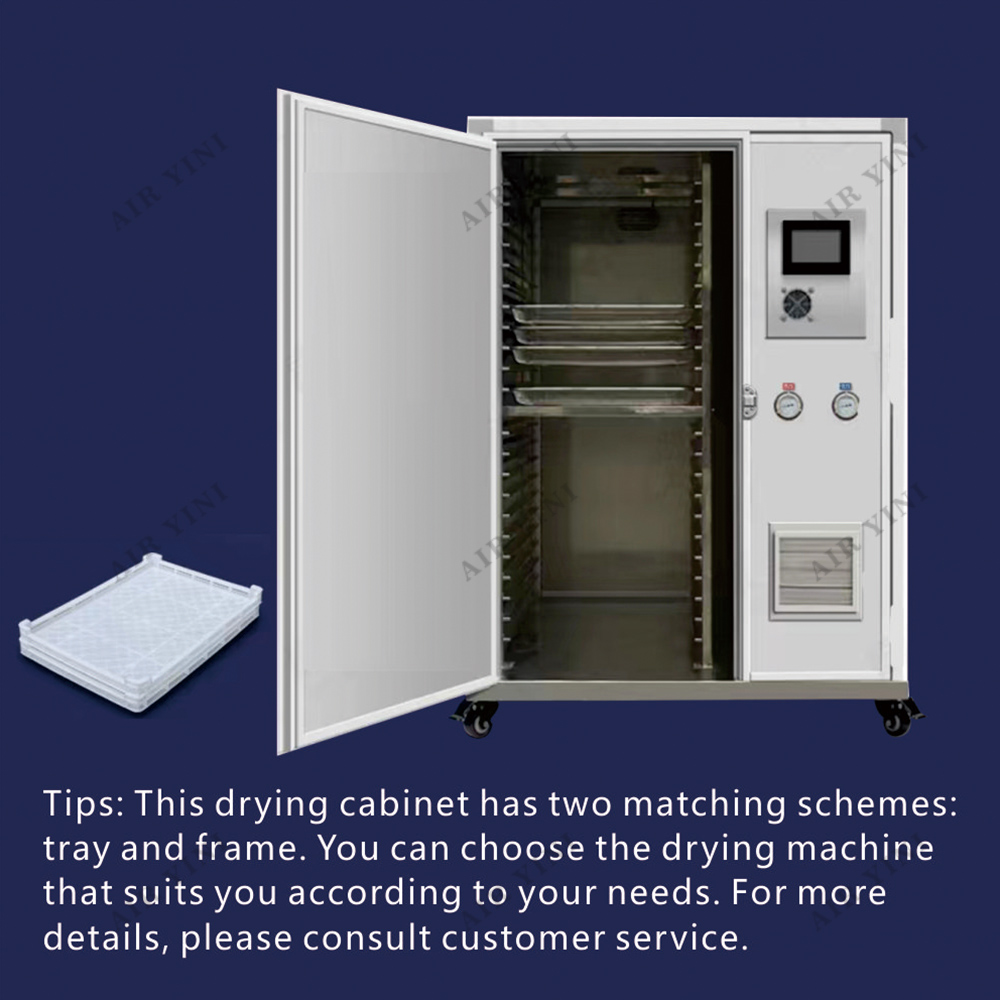

- Flexible loading: Choice of tray or frame matching schemes
Safety & Control
- Safety Systems
- High Pressure ProtectionLow Pressure ProtectionOverload ProtectionTemperature ProtectionPower Phase Sequence Protection
Core Components
Advanced Components

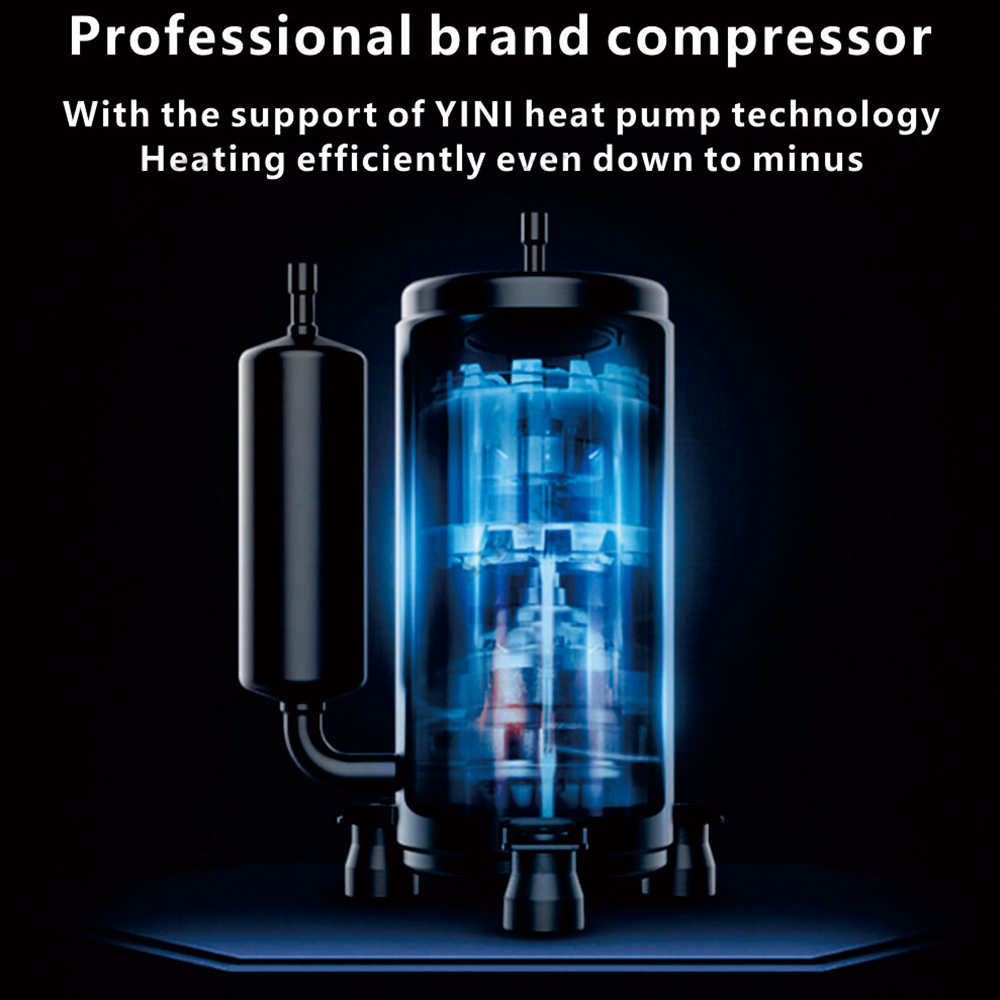

- Professional brand compressor for sub-zero efficiency

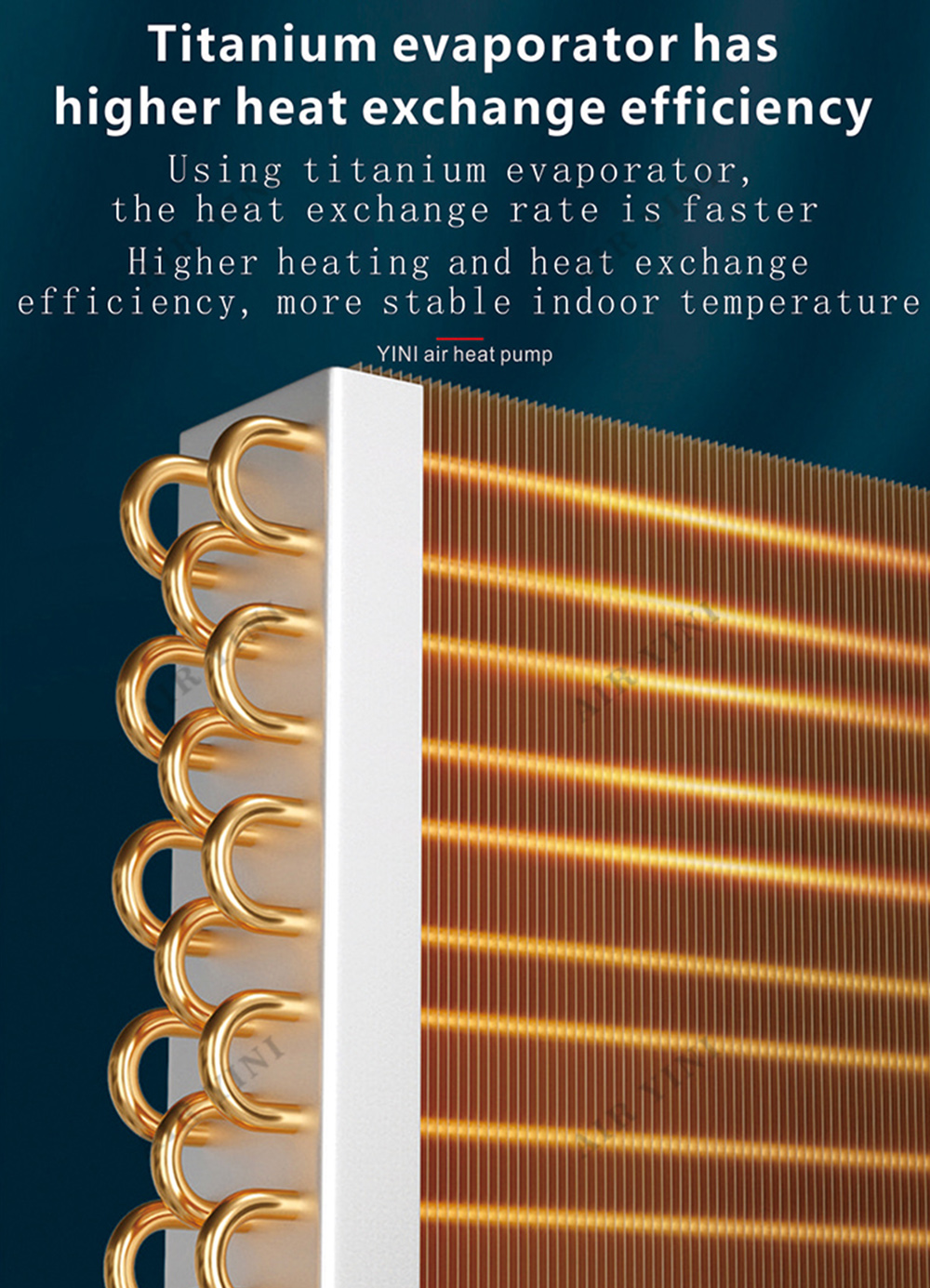

- Titanium evaporator for high-speed heat exchange

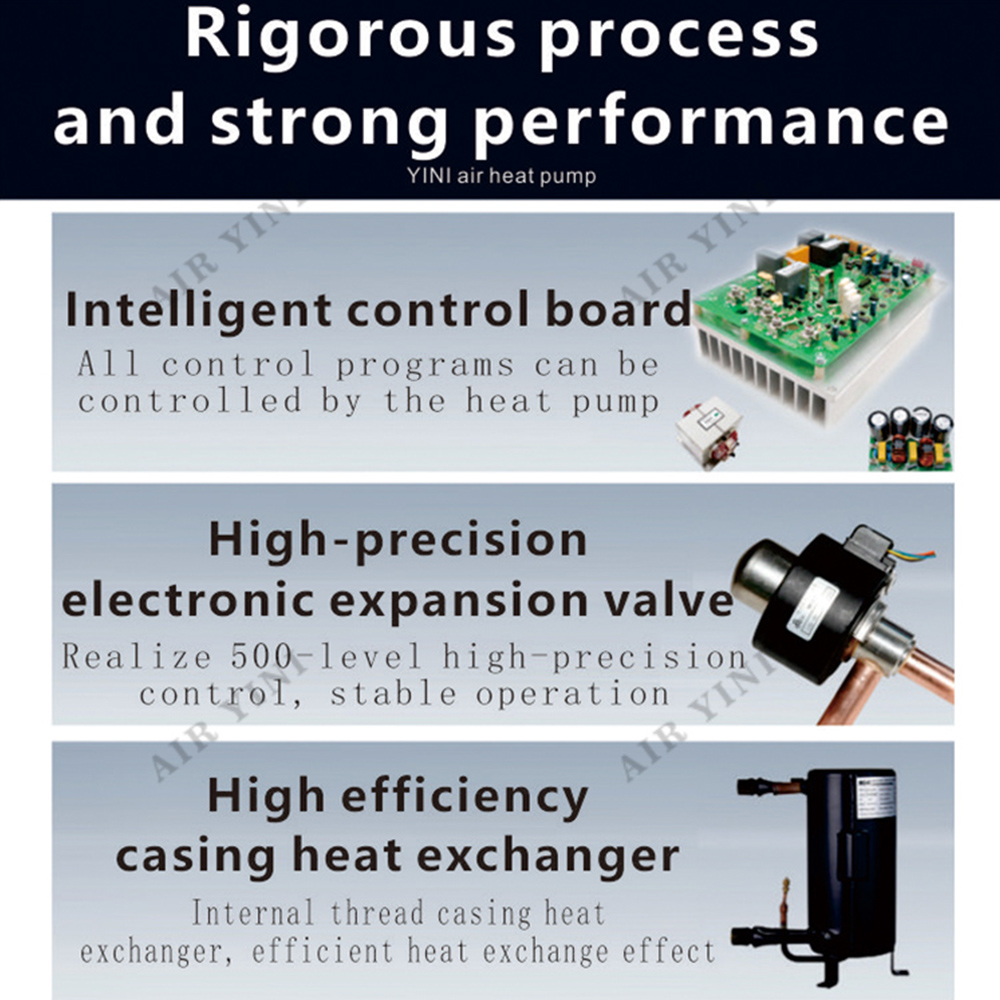

- High-precision electronic expansion valve (500-level control)
- Internal thread casing heat exchanger
- Intelligent control board for automated programs

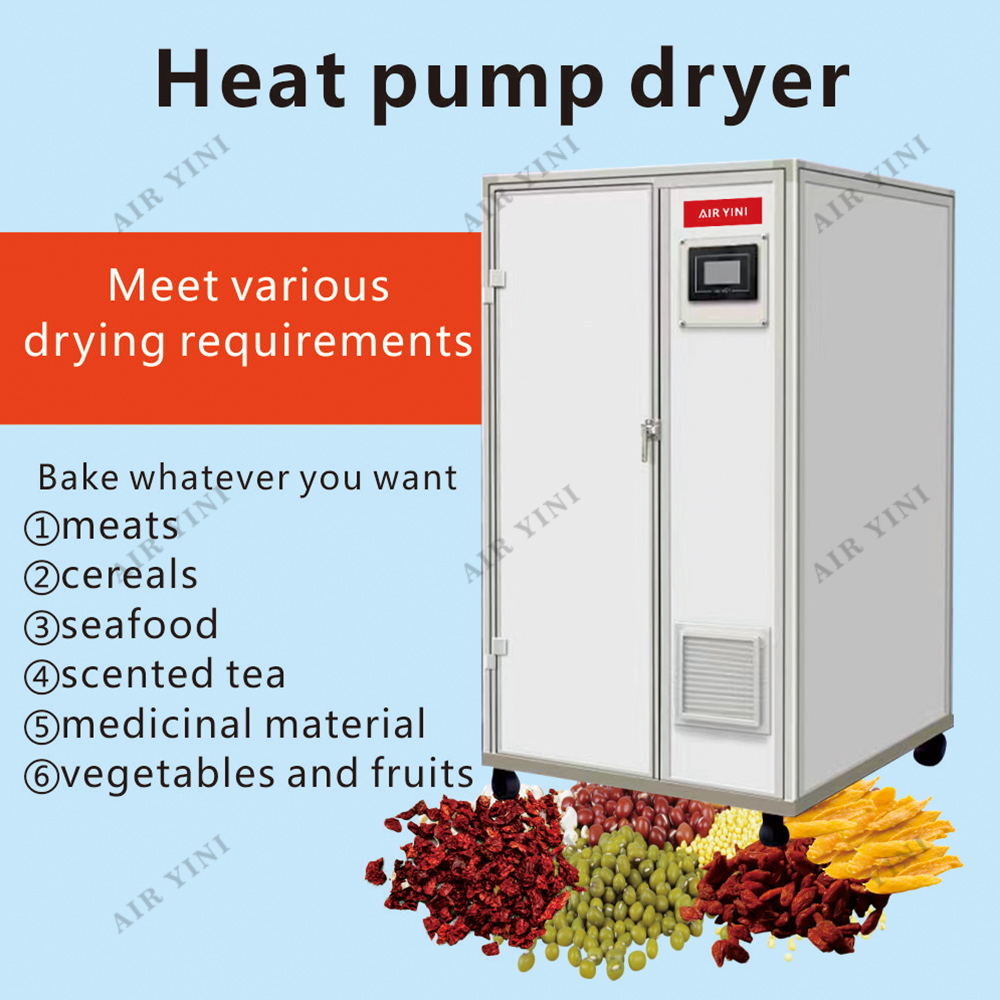

Applications
Suitable Materials
MeatsSeafoodFruits & VegetablesMedicinal HerbsScented TeaCerealsMushroomsHempKonjacSaffronCassava
