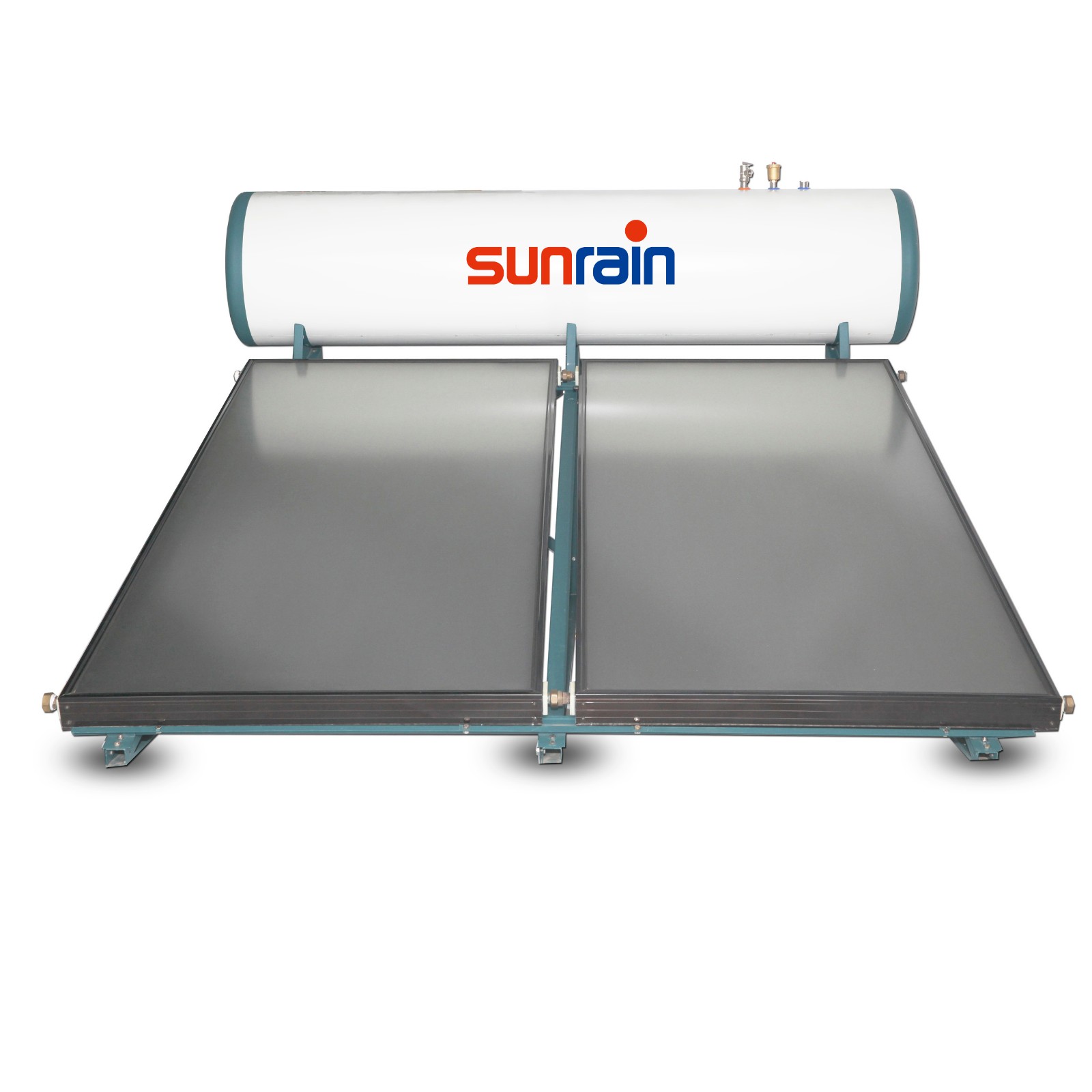

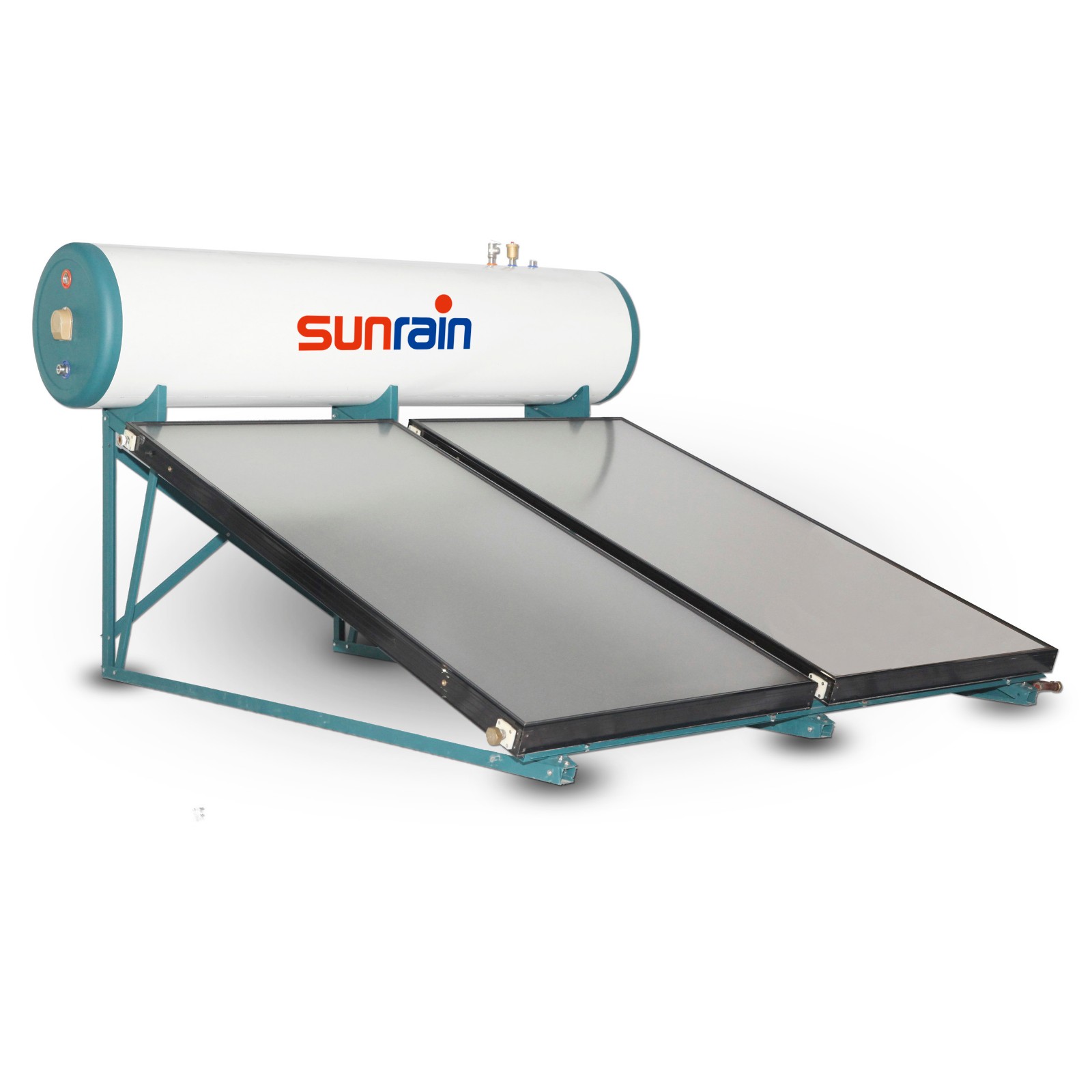

Pressurized Flat Panel Solar Water Heater
This solar water heater features side cover non-welding technology to prevent rust that can be caused by welding. It is available in 150L, 200L, and 300L sizes.
Technical Specifications
Overview
High-Efficiency Solar Heating
This pressurized flat panel solar water heater system is engineered for reliable hot water production in both residential and commercial settings. Featuring advanced non-welding side cover technology to prevent corrosion and high-performance absorption coatings, the system maximizes solar energy capture while minimizing heat loss. Its robust design ensures consistent water pressure and long-term durability in varied environmental conditions.
System Configuration

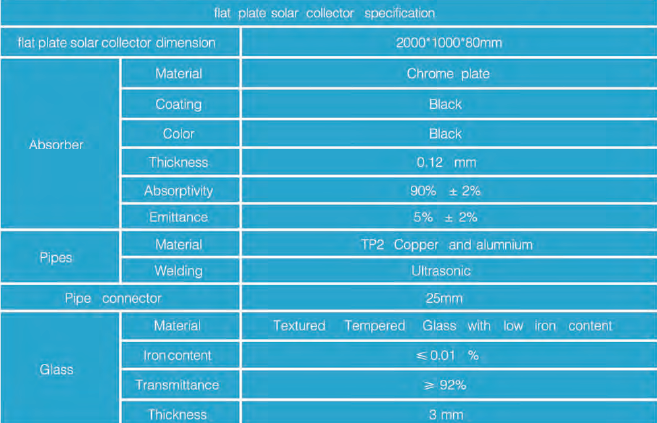

Collector Technical Data
| Parameter | Value |
|---|---|
| Dimensions | 2000 x 1000 x 80 mm |
| Absorber Material | Chrome plate |
| Absorptivity | 90% ± 2% |
| Emittance | 5% ± 2% |
| Glass Type | Low-iron tempered glass |
| Transmittance | ≥ 92% |
- Tank Capacity Options
- 150L200L300L
Technical Specifications
Key Performance Metrics
0.4 Bar
Max Working Pressure
1.5 kW
Electric Heater Power
50 mm
Insulation Thickness
Construction Materials
- Inner Tank: SUS304 Stainless Steel (0.6mm thickness)
- Outer Tank: Powder-coated UV resistant steel
- Frame: Galvanized steel (1.5mm thickness)
- Piping: TP2 Copper and Aluminum
