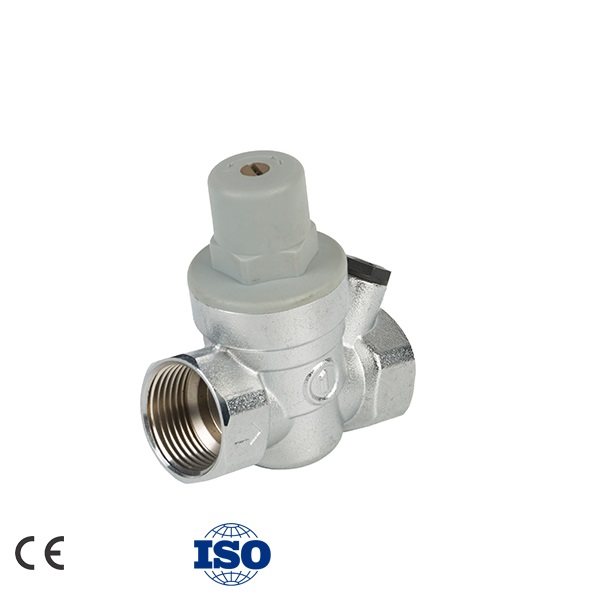

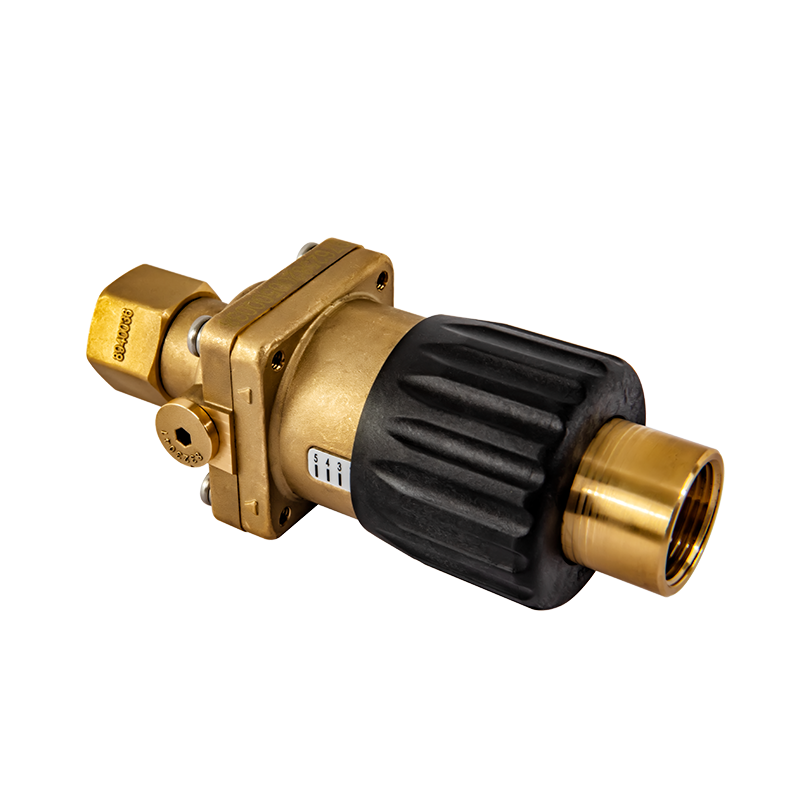

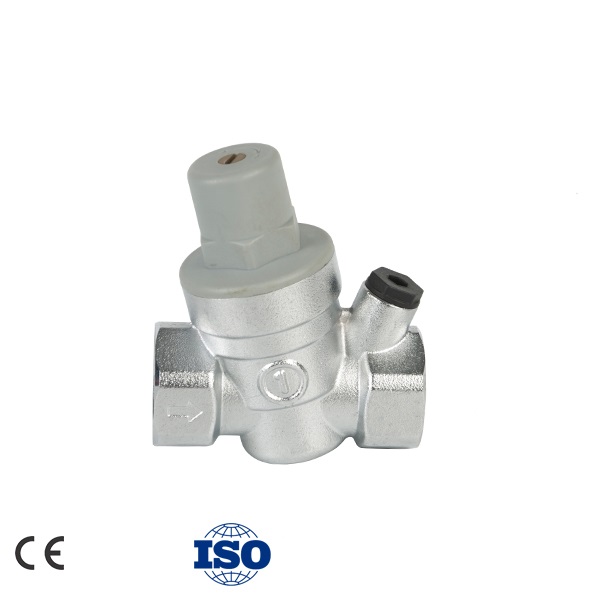

Pressure Reducing Valve
This pressure reducing valve automatically reduces and regulates the pressure in water systems. It ensures consistent downstream pressure, protecting appliances and plumbing systems from damage due to excessive pressure.
Technical Specifications
Product Overview
High-Performance Pressure Reduction
This pressure reducing valve is engineered to automatically regulate and stabilize water system pressure, protecting downstream appliances from damage. Featuring a durable brass construction and an integrated strainer, it offers high reliability for residential, commercial, and industrial plumbing. The compact design ensures easy installation while providing precise, adjustable pressure control for consistent system performance.
Technical Specifications
- Max Inlet Pressure
- 16 bar
- Outlet Pressure Range
- 1 - 6 bar
- Max Reduction Ratio
- 6:1
- Operating Temperature
- 0 - 65°C
Physical Properties
Available Thread Sizes
- 1/2"
- 3/4"
- 1"
Thread Standards
- G
- NPT
- Construction Material
- Brass
Compliance and Features
Optional Features
Pressure GaugeIntegrated Strainer
- Certifications
- CEISO
