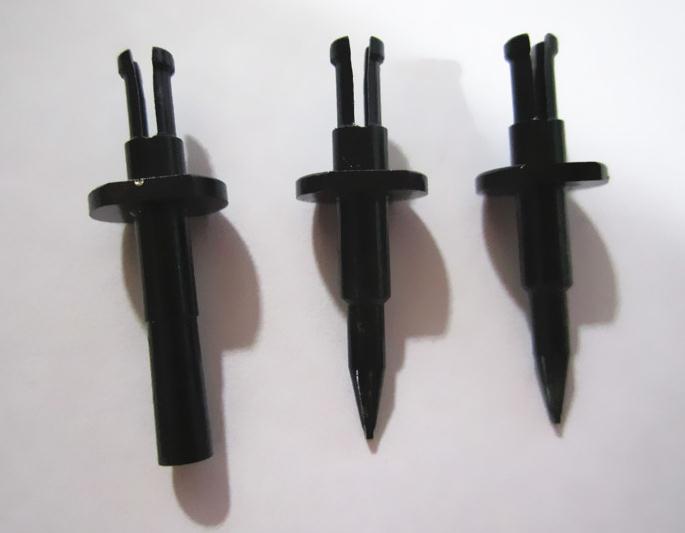

Precision Nozzle for GXH Machinery
This precision-engineered nozzle is designed for use with GXH-1 and GXH-3 machinery. Constructed from durable materials, it ensures longevity and consistent performance in demanding industrial applications.
Technical Specifications
Product Overview
Precision Nozzles for GXH Machinery
These precision-engineered nozzles are designed specifically for compatibility with GXH-1 and GXH-3 machinery. They are critical components for accurate material handling and dispensing in industrial SMT assembly environments. Built from durable, high-quality materials, these nozzles ensure consistent performance, longevity, and reliable flow control in high-precision automated applications.
Compatibility
- Compatible Equipment
- GXH-1GXH-3Sigma-G4Sigma-G5
Available Models
Nozzle Part Numbers and Specifications
| Part Number | Model ID | Dimensions/Notes |
|---|---|---|
| 630 128 4842 | HA01 | 0.7x0.4/ø0.25 (for 0603) |
| 630 132 2322 | PV01 | 1.1x0.6/ø0.38 (for 1005) |
| 630 132 9857 | PV02 | 1.7x0.9/ø0.65 (for 1608) |
| 630 129 2892 | HV03 | ø1.3/ø0.9 (for 2012) |
| 630 129 2922 | HA04 | ø1.8/ø1.2 (for 3216) |
| 630 129 2939 | HA05 | ø3.0/ø2.0 |
| 630 129 2946 | HA09 | ø6.0/ø4.5 |
| 630 152 8267 | HV31 | ø0.7x0.4/ø0.2 |
| 630 152 8472 | HV51 | ø0.6/ø0.4 |
| 630 158 9084 | HV81 | ø1.7x0.9/ø0.7 |
Additional Series
Sigma-G4 / Sigma-G5 Series Nozzles
- HV32C
- HV52C
- HV82C
- HV21C
- HG32C
- HG52C
- HG82C
- HV13C
- HV14C
- HV15C
- HB03C
- HB04C
