Precision Machined Brass Fittings
These brass fittings are precision machined using a digital lathe. They are suitable for applications needing durable, corrosion-resistant components.
Technical Specifications
Product Overview
Precision Machined Brass Fittings
These precision-machined brass components are engineered for demanding industrial environments, offering exceptional durability and corrosion resistance. Each part is manufactured using advanced digital lathes and rigorously inspected with standard gauges to ensure accurate dimensions and threading. Designed for versatility, they are ideal for high-performance plumbing, gas, and hydraulic applications.
Manufacturing Standards
Service Promises
- Free mould and tooling making
- Free sample mailing for customer provided designs
- Accepting custom drawings and samples
- Quality Controls
- Digital Lathe MachinedStandard Gauge CheckedForged Body Construction
Technical Dimensions
Y-Connector Metrics
107.6 mm
Overall Height
30 degrees
Angle Between Outlets
17 mm
Outlet Diameter 1
22 mm
Outlet Diameter 2
Bore and Threading
| Feature | Value |
|---|---|

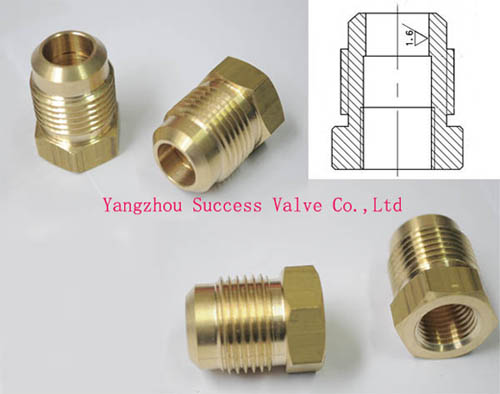

| Taper Angle | 1.6 degrees |

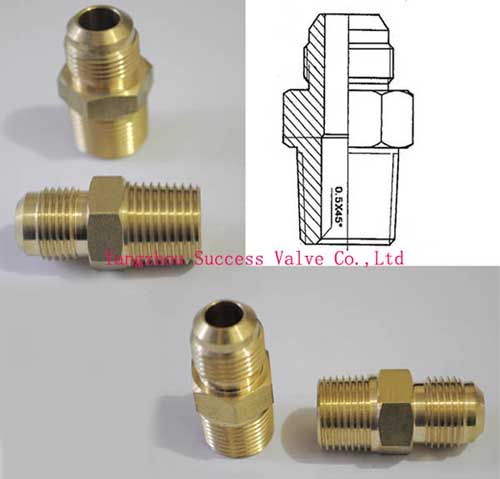

| Chamfer Angle | 0.5 x 45 degree |
