Precision Linear Guide Rail System

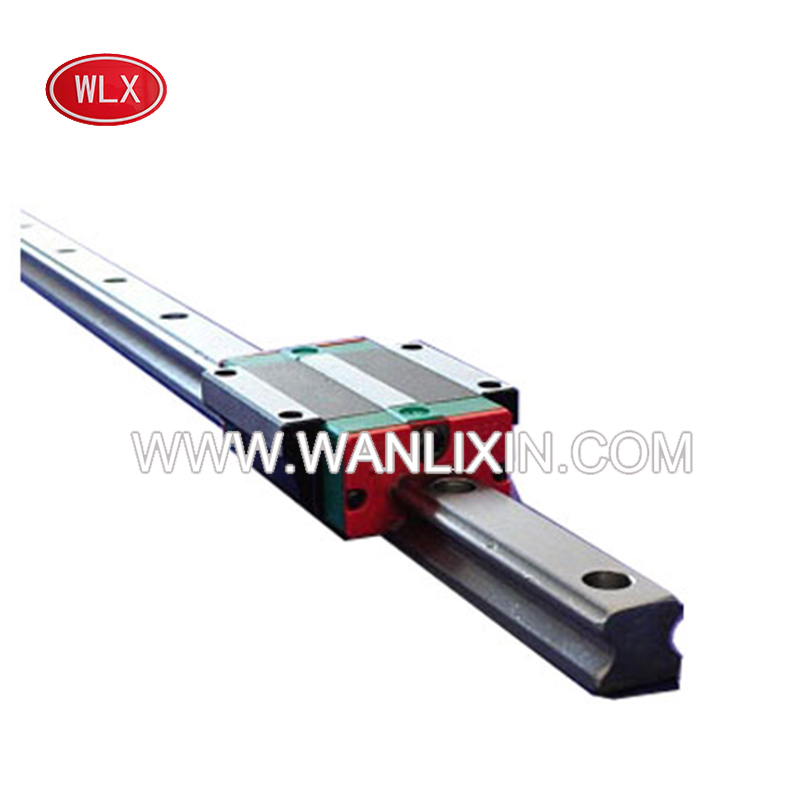

This precision linear guide rail system features a hardened steel rail and a smooth-gliding block carriage. It is designed for linear motion applications requiring high accuracy and load capacity.
Technical Specifications
Overview
Precision Linear Motion System
This linear guide rail system is engineered for high-precision motion applications, utilizing a rolling guide mechanism with an infinite loop of ball bearings between the slider and the rail. By significantly reducing the friction coefficient compared to traditional sliding guides, it achieves superior positioning accuracy and smooth movement. This system is designed to provide high load capacity and rigidity, making it an essential component for demanding industrial machinery.
Applications
- Suitable Applications
- CNC MachinesHigh-speed Transfer MachinesMachine ToolsPrecision MachiningCutting MachinesPunching MachinesMarble CuttingGrinding MachinesMeasuring Equipment
Technical Details
- Motion Type
- Rolling guide with infinite ball bearing loop
- Friction Reduction
- 1/50th of traditional sliding guides
Construction
Material Composition
- Hardened steel rail
- Durable aluminum alloy carriage block
Installation Features
Pre-drilled mounting holesEasy integration
