Technical Specifications
Overview

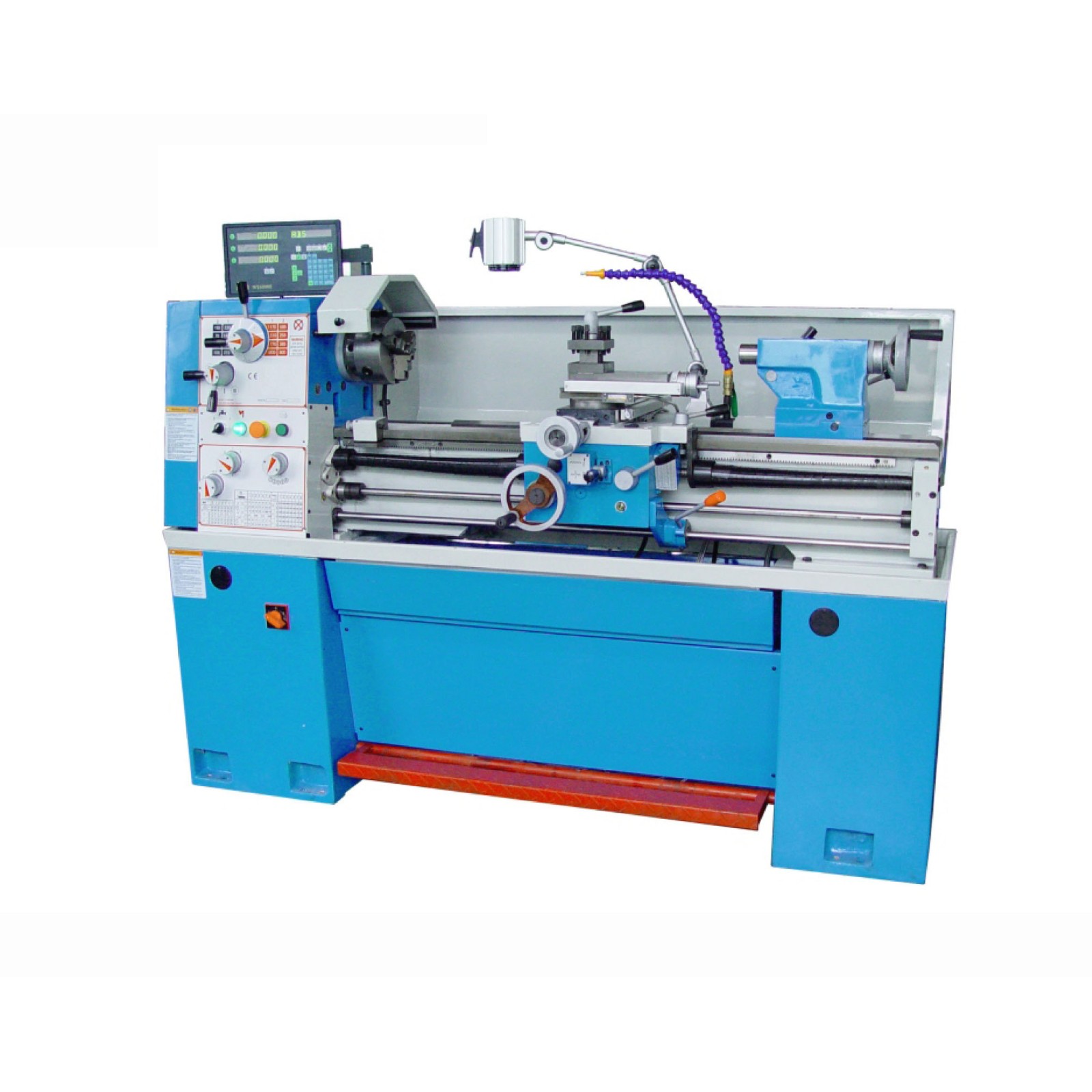

Precision Light Duty Metal Lathe
The CQ6236 series precision lathe is designed for professional metalworking, offering robust construction for stability and high-accuracy machining. This versatile machine supports a wide range of turning, facing, and threading operations, making it ideal for small to medium-sized workshops and educational institutions. With integrated coolant systems and precise spindle controls, it ensures consistent performance and prolonged tool life across varied industrial applications.
Capacity
Swing Dimensions
356 mm
Swing Over Bed
220 mm
Swing Over Cross Slide
506 mm
Swing in Gap
Workpiece Parameters
- Distance between centers: 750/1000mm
- Gap valid length: 145mm
- Bed width: 206mm
Performance
Spindle Configuration
| Feature | Specification |
|---|---|
| Spindle Bore | 38mm or 51mm |
| Spindle Nose | D1-4 |
| Spindle Taper | MT No.5 |
| Speed Range | 45-1800 r/min |
Motor & Cooling
2.4 kW
Main Motor Power
0.04 kW
Coolant Pump Power
Operations
Tailstock Details
- Quill diameter: 45mm
- Quill travel: 120mm
- Quill taper: MT No.3
- Tooling and Threading
- Metric ThreadingImperial ThreadingMax Tool Section 16x16mm
Logistics
Weight and Dimensions
| Metric | Value |
|---|---|
| Net Weight | 730-750 kg |
| Gross Weight | 860-880 kg |
| Machine Dimensions | 182x74x125 cm |
