Technical Specifications
Overview

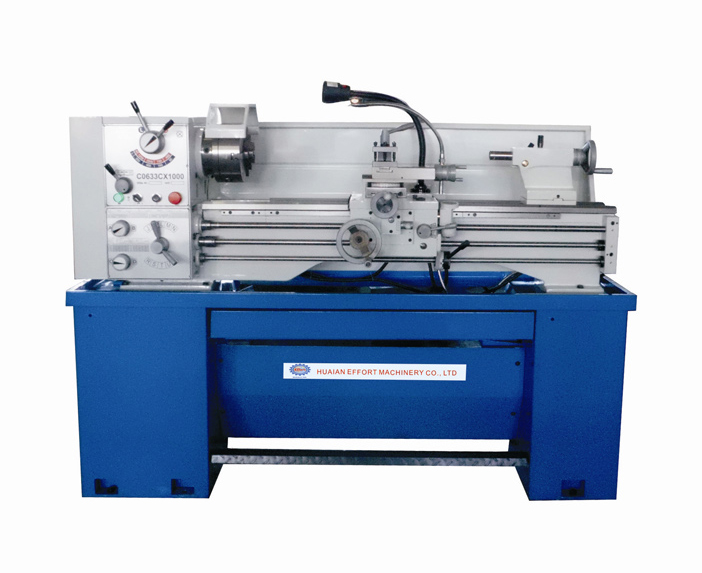

Precision Light Duty Lathe
This precision light-duty metal lathe series is designed for versatile turning, facing, threading, and drilling operations. Engineered for high stability and accuracy, these machines feature a rigid cast iron bed that minimizes vibration and ensures superior surface finishes. With a range of configurations including variable speed control and high-tolerance components, this lathe is an ideal solution for small-to-medium workshop environments and educational facilities.
Performance Metrics
Core Capacity
330 mm
Swing Over Bed (CQ6232L)
1.5 KW
Motor Power
2,000 r/min
Max Spindle Speed
Technical Specifications
Dimensions Table
| Feature | CQ6232L | CQ6236L |
|---|---|---|
| Swing Over Bed | 330mm | 360mm |
| Swing Over Cross Slide | 198mm | 215mm |
| Swing Over Gap | 476mm | 506mm |
Spindle System
- Spindle Bore: 38mm or 51mm
- Spindle Nose: D1-4A / D1-5
- Speed Range: 70-2000 r/min
- Thread Cutting Capabilities
- Inch Thread: 372-80 T.P.IMetric Thread: 0.45-1 mmModule Threads: 0.25-5 MPDiametric Threads: 7-160 DP
- Tailstock Specifications
- 32mm quill diameter, MT#3 taper, 100mm travel
Operational Requirements
Electrical Requirements
- Voltage: 220V or 380V
- Phase: 1PH or 3PH
