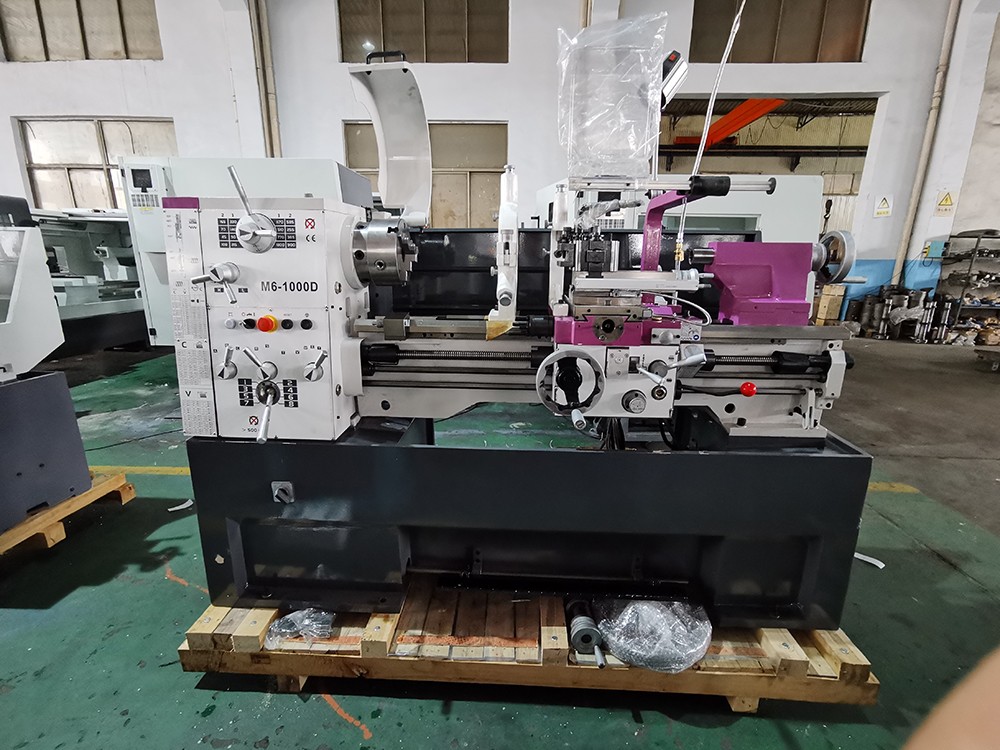

Precision Light Duty Lathe
This precision light duty lathe features precision ground and hardened bedways. It is equipped with two precision D degree taper roller bearings on the spindle and head stock gears made of high quality steel ground and hardened more than HRC 48 degrees.
Technical Specifications
Overview
Precision Light Duty Lathe

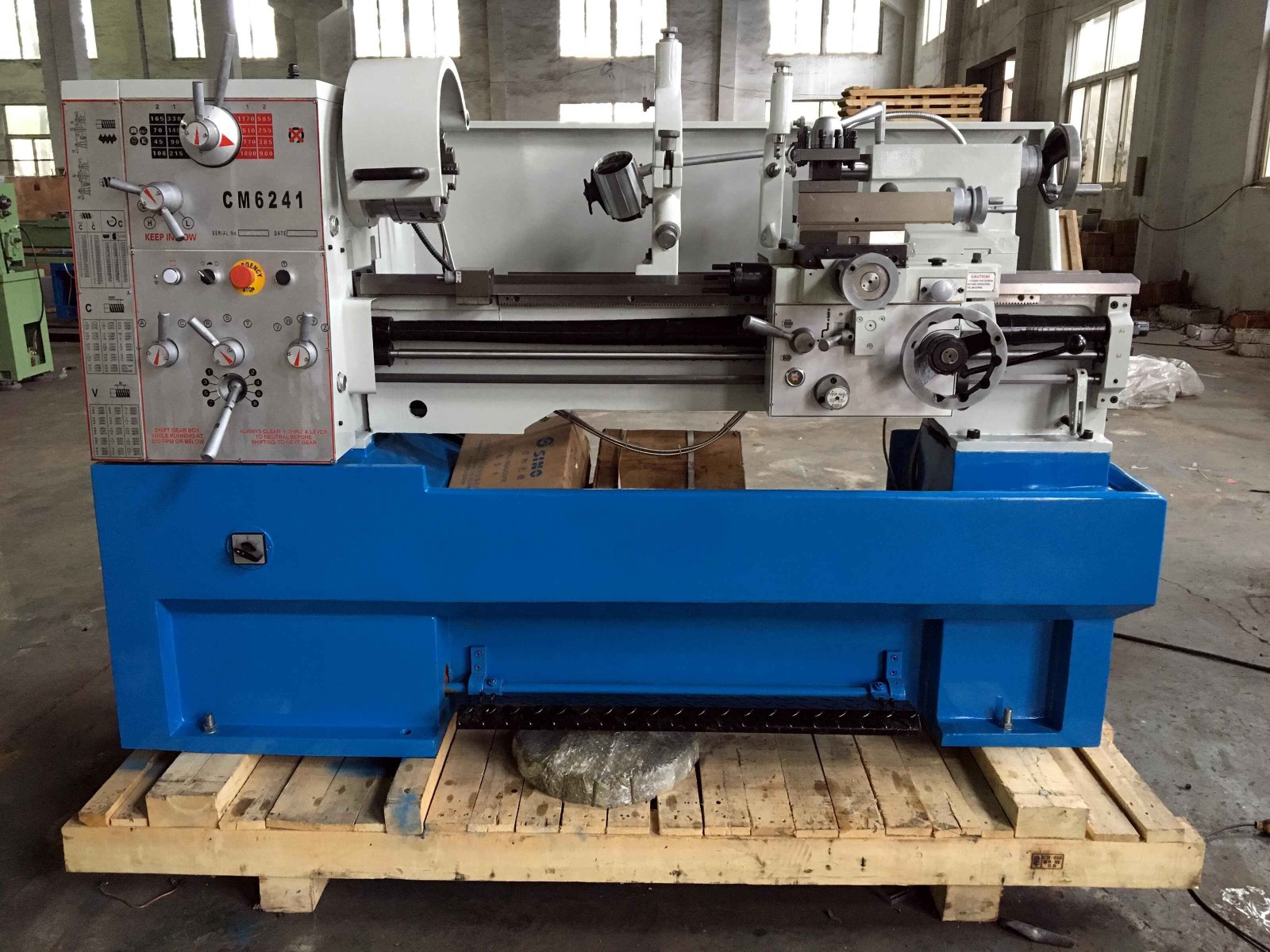

The CM6241 series is a versatile, precision-engineered lathe designed for professional metalworking, turning, facing, and threading operations. Built for stability and vibration damping, it offers a wide range of spindle speeds and threading capabilities to accommodate various material requirements. This robust machine is an ideal solution for small to medium-sized workshops seeking consistent performance and reliable precision.
Key Performance Metrics
Core Specifications
410 mm
Swing Over Bed
52 mm
Spindle Bore
1,000 mm
Distance Between Centers
3.3 kW
Motor Power
Machining Capacity
Dimensions & Travel
| Feature | Value |
|---|---|
| Swing over bed | 410mm |
| Swing over cross slide | 255mm |
| Height of center | 205mm |
| Cross slide travel | 210mm |
| Top slide travel | 140mm |
Technical Details
Spindle System
- Spindle bore: 52mm
- Spindle taper: D1-6
- Spindle speeds: 16 steps, 45-1800 RPM (variations available)
- Threading & Feeds
- 45 Imperial Threads39 Metric Threads0.3-3.5MP Module Pitches8-44DP Diametral Pitches
